| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P09-12TH-I5 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Alder Lake Core™ I5-1235U | Memory: | 1 *DDR5 Slot |
|---|---|---|---|
| Ethernet: | 1*Gigabit LAN | SATAIII: | 1* Standard SATA3.0 |
| M.2: | 1*M.2 M-Key 2280,NVMe PCIe 4.0 X4 | WIFI: | Support WIFI |
| Dimension: | 179.6*119.2*29.6 Mm |
Intel® Alder Lake Core™ i5-1235U OPS Mini PC 180*120*30 mm with TYPE C support 4k display for school whiteboard computer
Key features
Integrated Intel® Alder Lake Core™ i5-1235U 10 Cores 12 threads Processor
1*DDR5 SO-DIMM
Onboard 1*Gigabit Ethernet Port
1*M.2 M-Key 2280,NVMe PCIe 4.0 x4
1*SATA3.0
1*LAN (RTL8111 network, optional Intel i219)
1*HDMI
1*MINI DP
2*USB3.0 , 2*USB2.0
1*TYPE-C

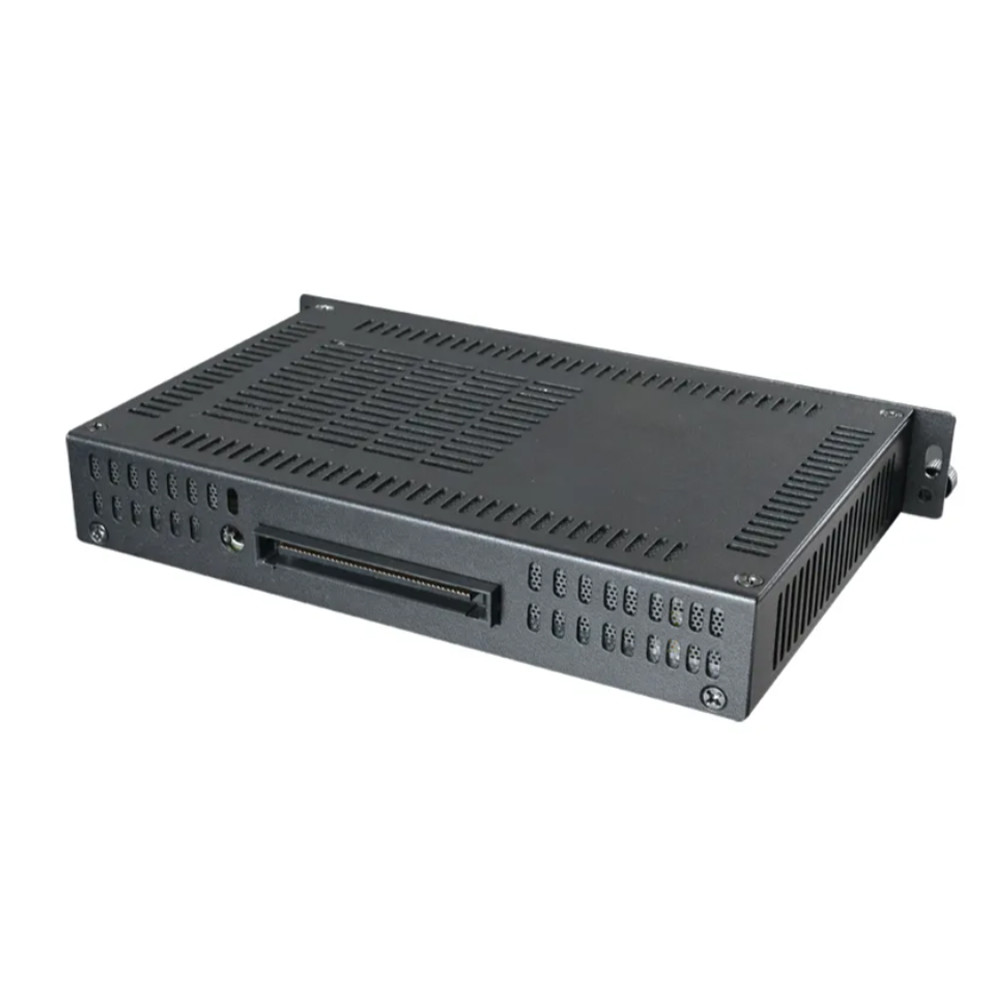

1*80pin standard OPS port
Support WIFI
Single DC Power Supply, DC12-19V,+/-5%
Size: 179.6*119.2*29.6 mm
Specifications
| Processor | CPU |
Integrated Intel® Alder Lake Core™ i5-1235U 10 Cores 12 threads 3.3~4.4Ghz Processor Max Turbo Frequency 4.4Ghz |
| chipset | Support Alder Lake-U Serial processor | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | 1*DDR5 SO-DIMM,Onboard Ram optional,max support 48GB |
| Video | Graphic controller | Intel® Iris® Xe Graphics eligible |
| MINI DP | MINI DP support max resolution 4096x2304 @60HZ | |
| HDMI | support max resolution(HDMI2.0)4096*2304@60HZ Support 4K display output | |
| Dual display | HDMI+MINI DP sync or asynchronous display | |
| I/O interface | Port |

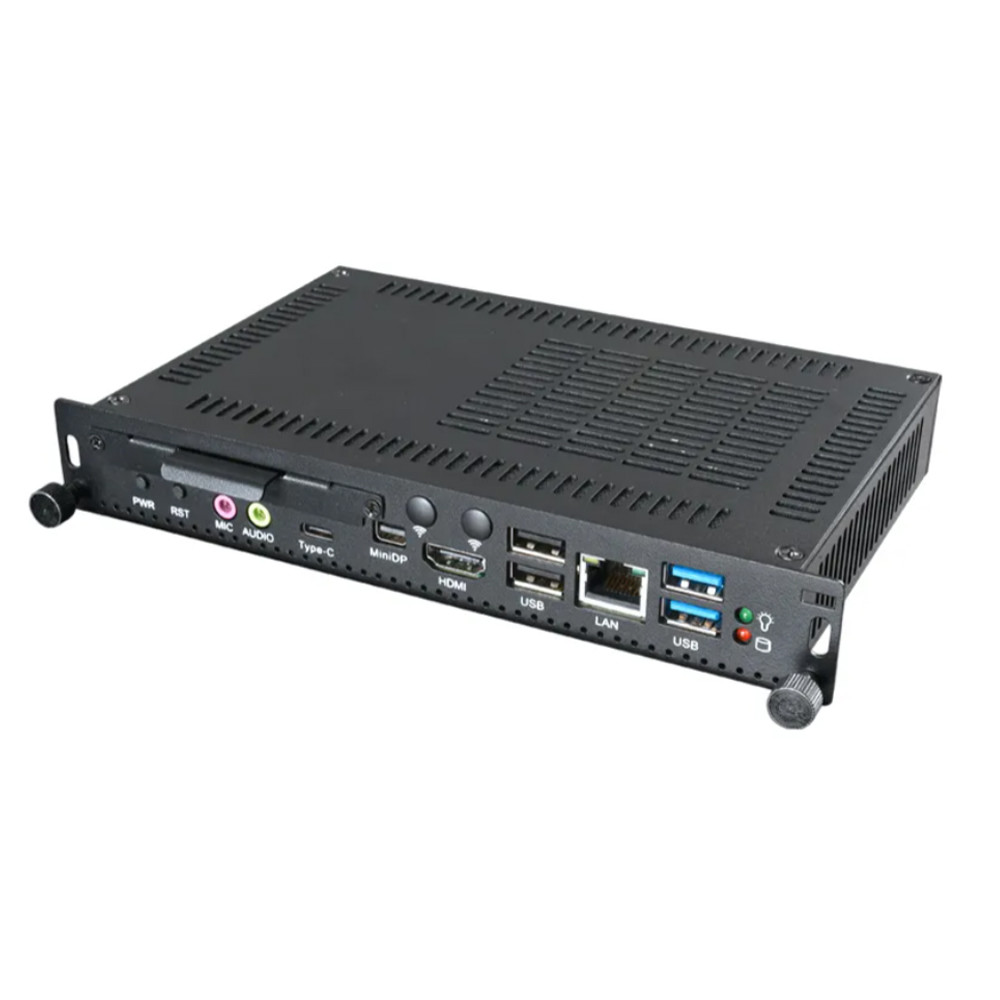

1*LAN 1*HDMI 1*MINI DP 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*USB2.0 1*TYPE-C (USB3.1 GEN2) 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator ligh 1*80pin standard OPS port |
| Internet | controller | 1*LAN (RTL8111 network, optional Intel i219) |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | M.2 | 1*M.2 M-Key 2280,NVMe PCIe 4.0 x4 protocol |
| SATA | 1*SATA3.0 protocol optional | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*119.2*29.6 mm |
