| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P04-10TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Core™i3-10110U I5-10210U I7-10510U / Celeron® 5205U | RAM: | 1 *DDR4 Up To 32GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit Ethernet Port | SATAIII: | 1* Standard SATA3.0 |
| NGFF_SSD Port: | 1*NGFF_SSD Port | Type-c: | 1*Type-c |
| WIFI: | Support WIFI | Dimension: | 179.6*119.2*29.6 Mm |
| Highlight: | I3-10110U OPS Mini PC,Industrial OPS Mini PC,Whiteboard mini industrial pc |
||

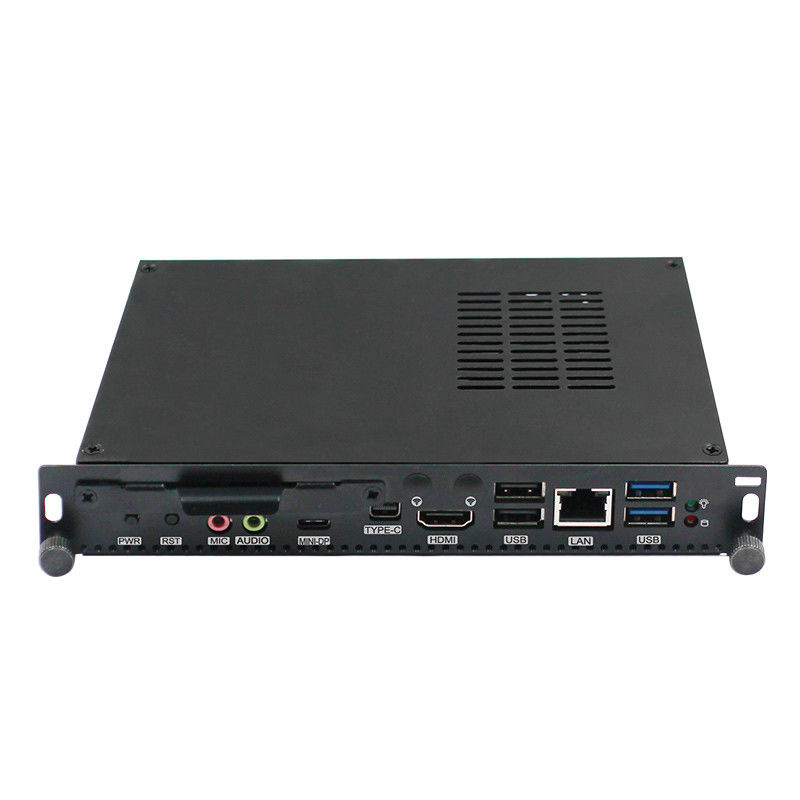

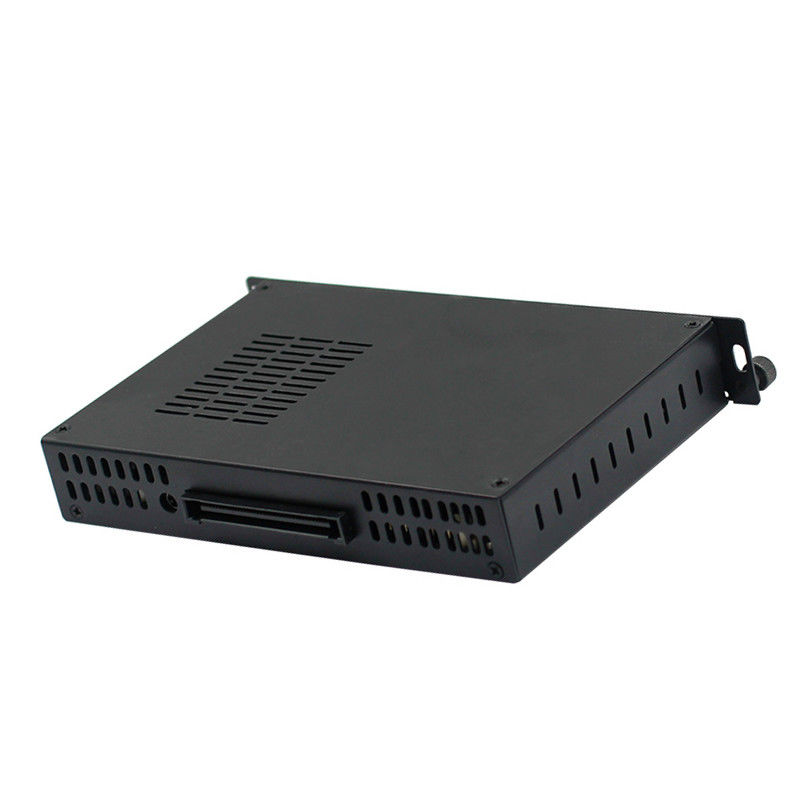

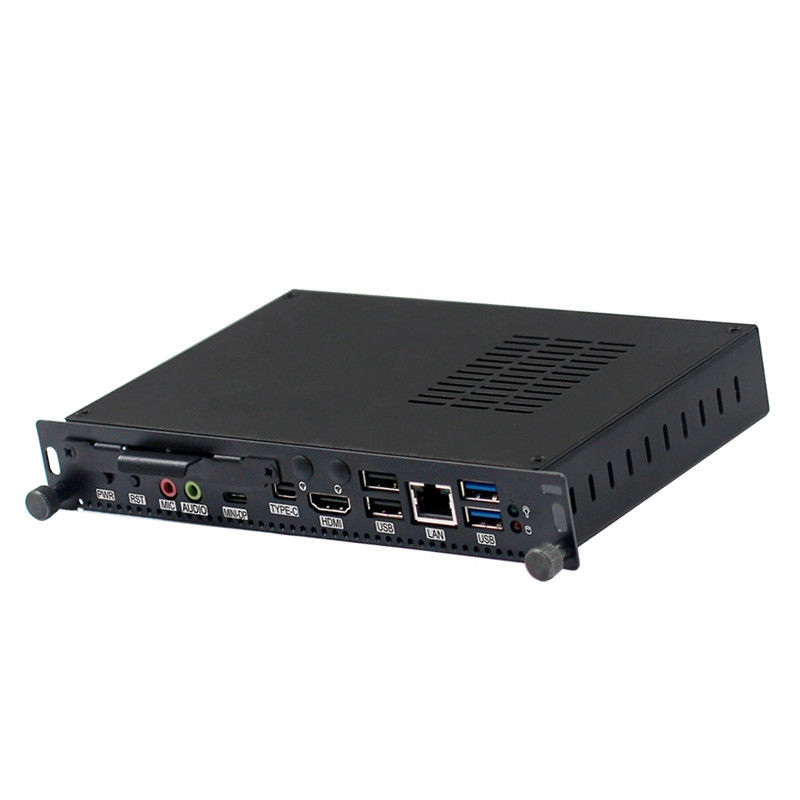

10th Generation i3-10110U processor x86 Industrial computer OPS mini pc for classroom teaching whiteboard
Notice :
When you inquiry , you can choose the following Model :
OPSPC-P04-10TH-5205U , Integrated 10th gen Intel® Celeron® 5205U Processor dual cores 2 threads 1.9Ghz processor
OPSPC-P04-10TH-I3 , Integrated 10th gen Intel® Core™ Comet Lake i3-10110U 2 cores 4 threads 2.1~4.1Ghz
OPSPC-P04-10TH-I5 , Integrated 10th gen Intel® Core™ Comet Lake i5-10210U 4 cores 8 threads 1.6~4.2Ghz
OPSPC-P04-10TH-I7 , Integrated 10th gen Intel® Core™ Comet Lake i7-10510U 4 cores 8 threads 1.8~4.9Ghz
Comet Lake 10th Generation i3-10110U i5-10210U i7-10510U processor x86 Industrial computer OPS mini pc for classroom teaching whiteboard
Key features
Integrated Intel® Comet Lake Core™i3-10110U i5-10210U i7-10510U / Celeron® 5205U
1*DDR4 SODIMM 260 Socket 2133/2400/2666MHz
Intel® UHD Graphics
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*HDMI
1*MINI DP
2*USB3.1
2*USB2.0
1*TYPE-C
1*80pin standard OPS port
Support WIFI
Support power-on automatic boot function, jumper selection
Support Intel AMT remote management technology
Support OPS expansion(support HDMI2.0 4096*2304@60Hz)
Single DC Power Supply, DC12-19V,+/-5%
Size: 179.6*119.2*29.6 mm
Specifications
| Processor | CPU |
Integrated Intel® Comet Lake Core™i3-10110U i5-10210U i7-10510U / Celeron® 5205U |
| CPU package | BGA | |
| chipset | Support Comet Lake-U Serial processor | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133/2400/2666MHz |
| socket | 1*DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Intel UHD Graphics 620, graphics models related to CPU |
| MINI DP | MINI DP support max resolution 4096x2304 @60HZ | |
| HDMI | support max resolution(HDMI2.0)4096*2304@60HZ Support 4K display output | |
| Dual display | HDMI+MINI DP sync or asynchronous display | |
| I/O interface | Port |
1*LAN 1*HDMI 1*MINI DP 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.1(GEN2)When using Celeron CPU, USB3.1 can only reach GEN1 2*USB2.0 1*TYPE-C (USB3.1 GEN2) 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator ligh 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI and 1*DP(pick one of two) 1*DC 3*USB 1*switch button |
|
| Internet | controller |
1*Intel I219-LM 1000M network card 1*NGFF Interface support WIFI/ 3G/4G module |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 1*standard SATAIII port,maximum transfer rate of 6Gb/s( with SATA_HDD choose one,default is SATA_HDD) |
| SATA_HDD | 1*SATA_HDD hard disk interface,maximum transfer rate of 6Gb/s(with SATA choose one) | |
| NGFF | 1*NGFF_SSD Port | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*119.2*29.6 mm |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
