| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P01-7TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel 7th Gen I3-7100U I5-7200U I7-7500U / 3865U | Memory: | Single Channel DDR4 2133MHz |
|---|---|---|---|
| Graphic Controller: | Intel HD Graphics 620 | Ethernet: | 1* Gigabit LAN |
| NGFF_SSD Port: | 1*NGFF_SSD Port | SATA: | 1* Standard SATAIII |
| USB: | 6*USB | Dimension: | 179.6*118*29.6 Mm |
| Highlight: | Ultra Thin OPS Mini PC,OPS Mini PC 1 LAN,6 USB OPS Mini PC |
||
Intel® 7th Gen i3-7100U I5-7200U I7-7500U Ultra thin OPS computer for Electronic Whiteboard
Notice:
When you inquiry , you can choose the following Model
OPSPC-P01-7TH-3865U Integrated Kaby Lake-U Intel® Celeron® Processor 3865U dual cores 2 threads 1.8GHz Processor
OPSPC-P01-7TH-I3 Integrated Kaby Lake-U i3-7100U dual cores 4 threads 2.4GHz Processor
OPSPC-P01-7TH-I5 Integrated Kaby Lake-U i5-7200U dual cores 4 threads 2.5~3.1GHz Processor
OPSPC-P01-7TH-I7 Integrated Kaby Lake-U i7-7500U dual cores 4 threads 2.7~3.5GHz Processor
Intel® 7th Gen i3-7100U I5-7200U I7-7500U 3865U ltra thin OPS computer for Electronic Whiteboard
Key features
Integrated Intel® 7th Gen i3-7100U / I5-7200U / I7-7500U / Celeron® 3865U
Support 1 *DDR4 SODIMM 260 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*Gigabit LAN
1*HDMI
1*VGA
2*USB3.0
4*USB2.0
1*80pin standard OPS port
DC 12V 60W power adapter

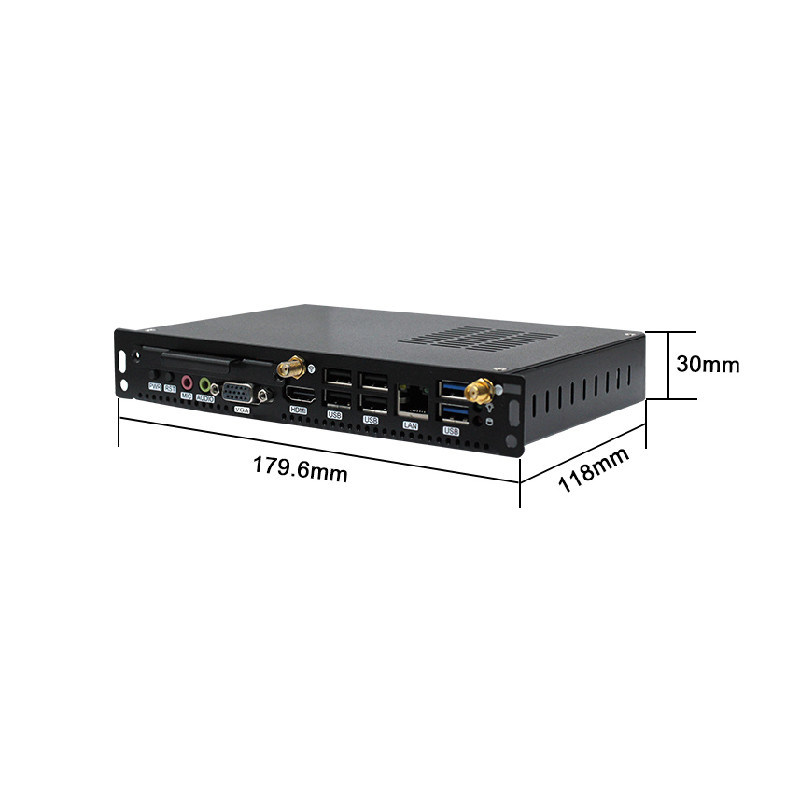

Size: 179.6*118*29.6 mm
Specifications
| Processor | CPU | Integrated Intel® 7th Gen i3-7100U / I5-7200U / I7-7500U / Celeron® 3865U |
| CPU package | BGA | |
| chipset | intel® Kaby lake-U serial CPU | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133MHz |
| socket | 1 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Intel HD Graphics 620(I3-7100U graphics card); graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output | |
| I/O interface | Port |
1*LAN 1*HDMI 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 4*USB2.0 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI or1*DP (pick one from two ) 1*DC 3*USB 1* switch button |
|
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum fan heatsink | |
| storage | SATA | 1* standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD) |
| NGFF | 1*NGFF_SSD Port | |
| Other | 1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna |
|
| Power type | Power type | Single input DC power supply,DC12V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*118*29.6 mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
