| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P04-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Intel® Core™ I3-8145U / I5-8265U / I7-8565U / 4205U | RAM: | 1 *DDR4 Up To 32GB |
|---|---|---|---|
| Ethernet: | 1*Gigabit Ethernet Port | SATAIII: | 1* Standard SATA3.0 |
| NGFF_SSD Port: | 1*NGFF_SSD Port | WIFI: | Support WIFI |
| Dimension: | 179.6*119.2*29.6 Mm | ||
| Highlight: | OPS Mini PC 30mm,32G OPS Mini PC,Whiteboard I7 Mini PC |
||

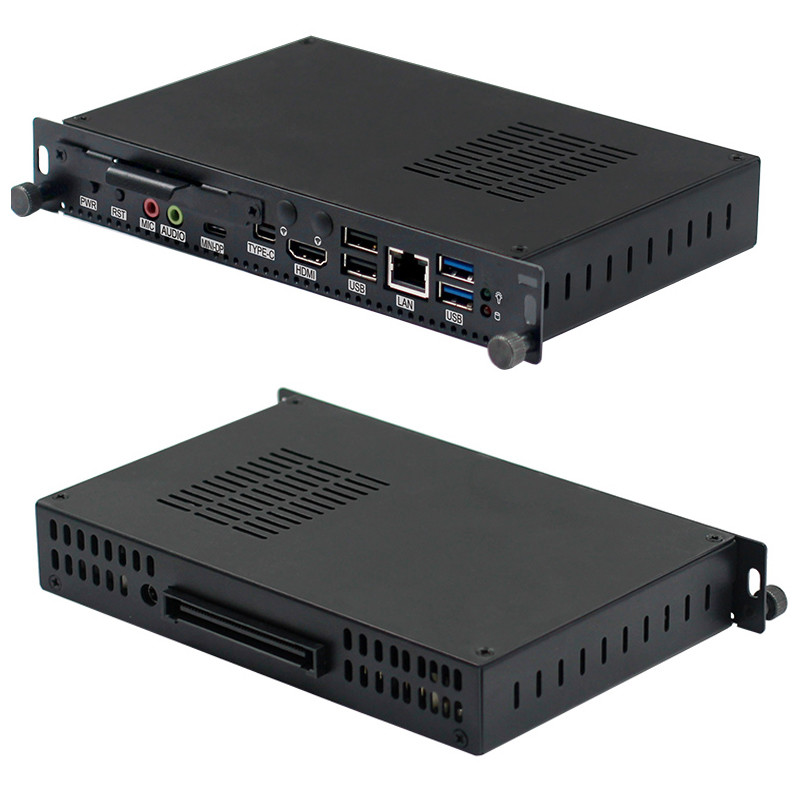

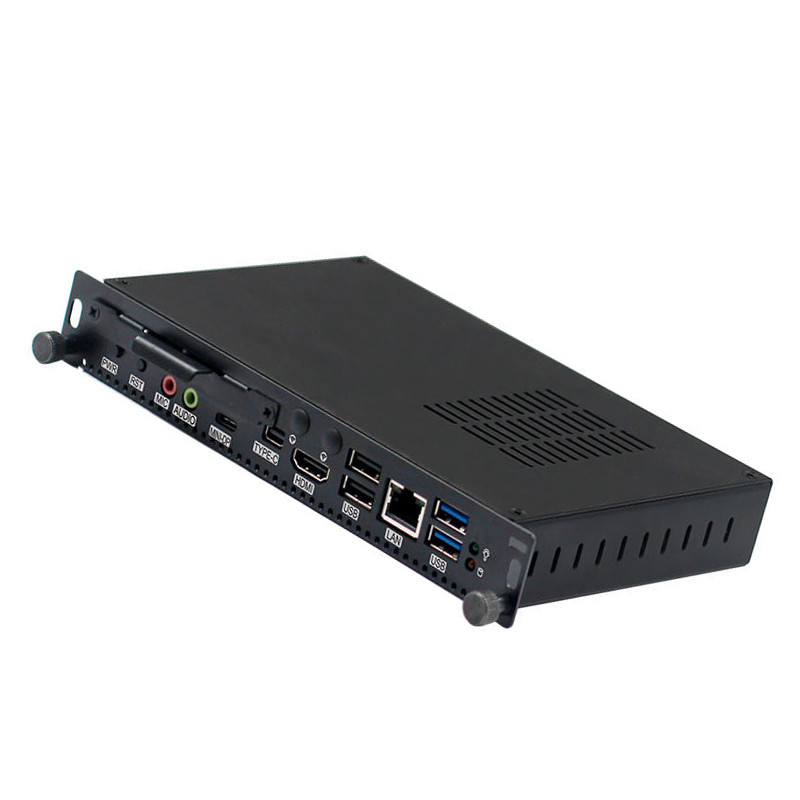

Whiskey Lake-U 8th Gen I3 I5 I7 OPS Mini PC 30 mm with TYPE C for school whiteboard computer max support 32G RAM
Notice:
When you inquiry , you can choose the following Model
OPSPC-P04-8TH-4205U Integrated Intel® Celeron® Processor Whiskey Lake 4205U dual cores 2 threads1.8GHz Processor
OPSPC-P04-8TH-I3 Integrated Intel® Whiskey Lake i3-8145U dual cores 4 threads 2.1~3.9GHz Processor
OPSPC-P04-8TH-I5 Integrated Intel® Whiskey Lake i5-8265U quad cores 8 threads1.6~3.9GHz Processor
OPSPC-P04-8TH-I7 Integrated Intel® Whiskey Lake i7-8565U quad cores 8 threads1.8~4.6GHz Processor
Intel® Core™ Whiskey Lake-U i3-8145U / i5-8265U / i7-8565U / 4205U OPS Mini PC 30 mm with TYPE C for school whiteboard computer max support 32G RAM
Key features
Integrated Intel® Core™ Whiskey Lake-U i3-8145U / i5-8265U / i7-8565U / 4205U
1*DDR4 SODIMM 260 Socket 2133/2400MHz
Intel® UHD Graphics
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*HDMI
1*MINI DP
2*USB3.1
2*USB2.0
1*TYPE-C
1*80pin standard OPS port
Support WIFI
Support power-on automatic boot function, jumper selection
Support Intel AMT remote management technology
Support OPS expansion(support HDMI2.0 4096*2304@60Hz)
Single DC Power Supply, DC12-19V,+/-5%
Size: 179.6*119.2*29.6 mm
Specifications
| Processor | CPU |
Intel® Core™ 8th Mobile Whiskey Lake-U Celeron,Core i3/i5/i7 Serial processor Integrated Intel® Core™ i3-8145U dual Core 4 threads 2.1Ghz Processor Max Turbo Frequency 3.9Ghz |
| CPU package | BGA | |
| chipset | Support Whiskey Lake-U Serial processor | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133/2400MHz |
| socket | 1*DDR4 SODIMM 260 Socket | |
| Video | Graphic controller |
Intel® UHD Graphics for 8th Generation Intel® Processors Graphics models related to CPU |
| MINI DP | MINI DP support max resolution 4096x2304 @60HZ | |
| HDMI | support max resolution(HDMI2.0)4096*2304@60HZ Support 4K display output | |
| Dual display | HDMI+MINI DP sync or asynchronous display | |
| I/O interface | Port |
1*LAN 1*HDMI 1*MINI DP 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.1(GEN2)When using Celeron CPU, USB3.1 can only reach GEN1 2*USB2.0 1*TYPE-C (USB3.1 GEN2) 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator ligh 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI and 1*DP(pick one of two) 1*DC 3*USB 1*switch button |
|
| Internet | controller |
1*Intel I219-LM 1000M network card 1*NGFF Interface support WIFI/ 3G/4G module |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 1*standard SATAIII port,maximum transfer rate of 6Gb/s( with SATA_HDD choose one,default is SATA_HDD) |
| SATA_HDD | 1*SATA_HDD hard disk interface,maximum transfer rate of 6Gb/s(with SATA choose one) | |
| NGFF | 1*NGFF_SSD Port | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*119.2*29.6 mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
