| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P01-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Kaby Lake R-U I3-8130U I5-8250U I7-8550U | RAM: | Single Channel DDR4 2133MHz |
|---|---|---|---|
| Graphic: | Integrated UHD Graphics 630 | Network: | 1* Gigabit LAN |
| NGFF_SSD Port: | 1*NGFF_SSD Port | SATAIII: | 1* Standard SATA3.0 |
| USB: | 6*USB | Dimension: | 179.6*118*29.6 Mm |
| Highlight: | Intel OPS Mini PC,M.2 Ssd OPS Mini PC,Whiteboard Intel Mini PC |
||

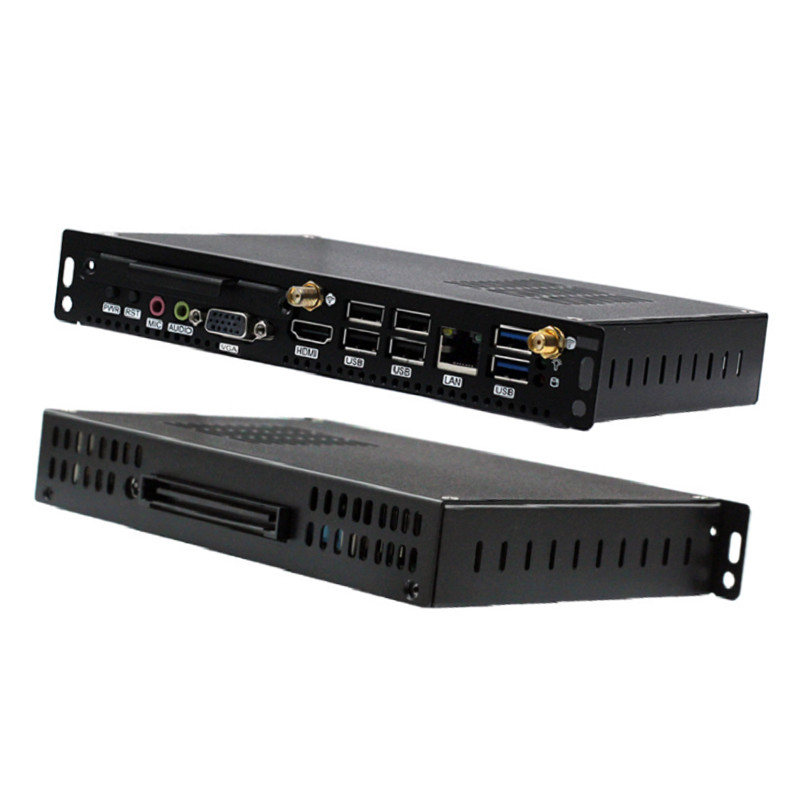

Intel® 8th Gen i3-8130U i5-8250U i7-8550U Ultra thin ops Mini pc m.2 ssd slot for electronic whiteboard
Notice:
When you inquiry , you can choose the following Model
OPSPC-P01-8TH-I3 Integrated Intel® Kaby Lake R i3-8130U dual cores 4 threads 2.2~3.4GHz Processor, 4 MB Intel® Smart Cache
OPSPC-P01-8TH-I5 Integrated Intel® Kaby Lake R i5-8250U quad cores 8 threads1.6~3.4GHz Processor, 6 MB Intel® Smart Cache
OPSPC-P01-8TH-I7 Integrated Intel® Kaby Lake R i7-8550U quad cores 8 threads1.8~4.0GHz Processor, 8 MB Intel® Smart Cache
Intel® 8th Gen i3-8130U i5-8250U i7-8550U ddr4 8GB 128gb SSD Ultra thin ops computer m.2 ssd slot for school classromm education whiteboard
Key features
Integrated Inte® Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U
Support 1 *DDR4 SODIMM 260 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*Gigabit LAN
1*HDMI
1*VGA
2*USB3.0
4*USB2.0
1*80pin standard OPS port
DC 12V 60W power adapter

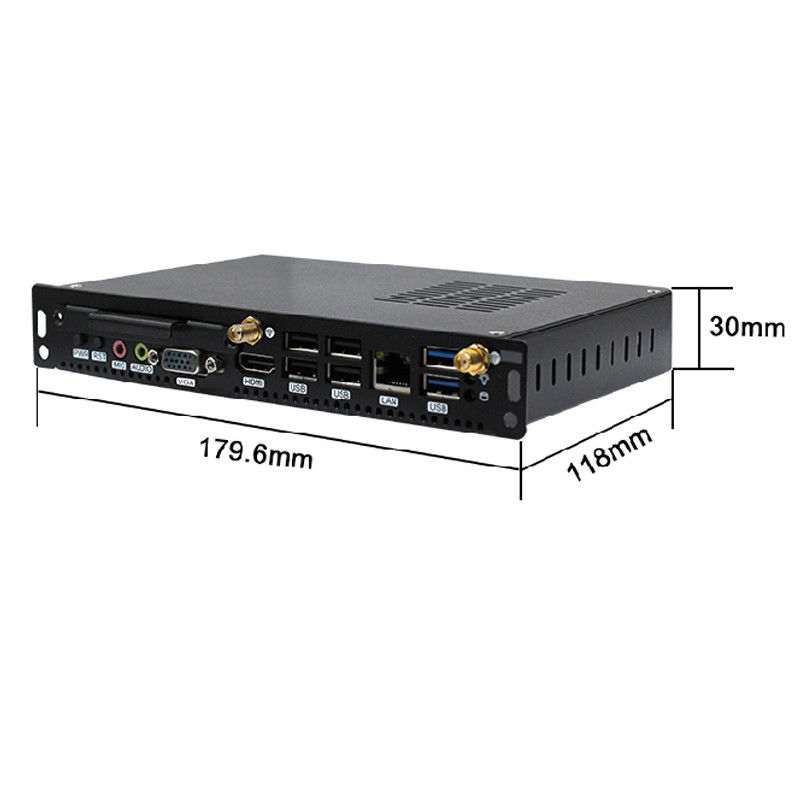

Size: 179.6*118*29.6 mm
Specifications
| Processor | CPU | Integrated Inte® Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U |
| CPU package | BGA | |
| chipset | Intel Kaby Lake R-U serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133MHz |
| socket | 1 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Integrated UHD Graphics 620 (I3-8100U graphics card); graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output | |
| I/O interface | Port |
1*LAN 1*HDMI 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 4*USB2.0 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI or1*DP (pick one from two ) 1*DC 3*USB 1* switch button |
|
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum fan heatsink | |
| storage | SATA | 1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD) |
| NGFF | 1*NGFF_SSD Port | |
| Other | 1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna |
|
| Power type | Power type | Single input DC power supply,DC12V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*118*29.6 mm |
