| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P01-6TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Intel@ 6th Gen I3-6100U I5-6200U I7-6500U / Celeron@ 3855U | Memory: | Single Channel DDR4 |
|---|---|---|---|
| Graphic Controller: | Intel HD Graphics 520 | Ethernet: | 1* Gigabit LAN |
| USB: | 6*USB | Dimension: | 179.6*118*29.6 Mm |
| Highlight: | 4K Mini Computer PC,OPS Mini Computer PC,I7-6500U 4k mini pc |
||

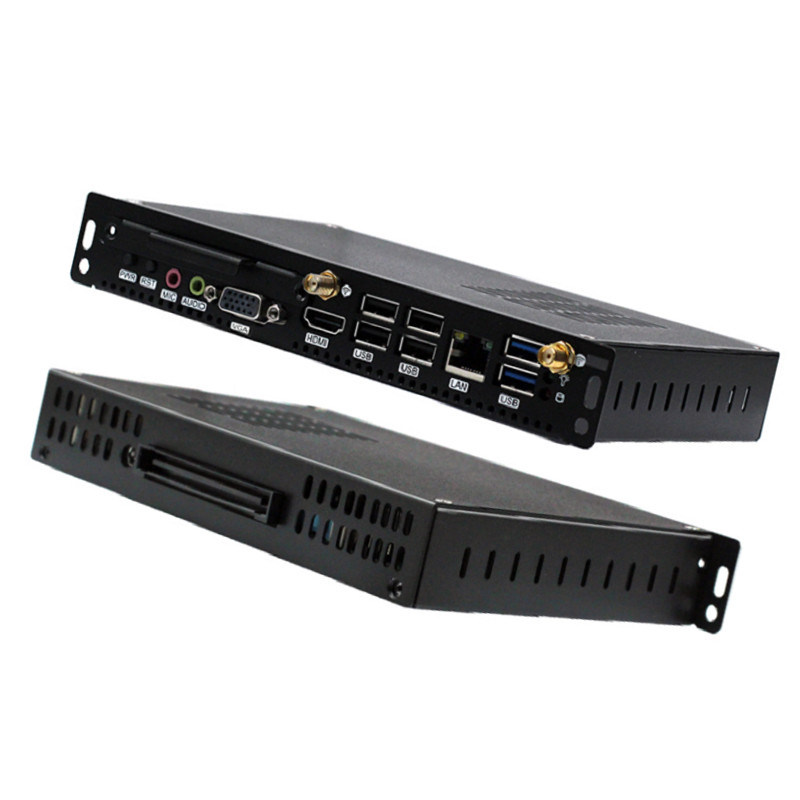

intel@ 6th Gen i3-6100U i5-6200U i7-6500U 4K display OPS mini computer with m.2 ssd slot for electronic whiteboard
Notice:
When you inquiry , you can choose the following Model
OPSPC-P01-6TH-3855U Integrated Skylake Intel® Celeron® Processor Dual core 2 threads 1.6Ghz processor
OPSPC-P01-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
OPSPC-P01-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor
OPSPC-P01-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor
intel@ 6th Gen i3-6100U i5-6200U i7-6500U 4K display OPS mini computer with m.2 ssd slot for electronic whiteboard
Key features
Integrated Skylake-U intel@ 6th Gen i3-6100U i5-6200U i7-6500U / Celeron@ 3855U
Support 1 *DDR4 SODIMM 260 Socket
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1*NGFF_SSD Port
1*Gigabit LAN
1*HDMI
1*VGA
2*USB3.0
4*USB2.0
1*80pin standard OPS port
DC 12V 60W power adapter
Size: 179.6*118*29.6 mm
Specifications
| Processor | CPU | Integrated Skylake-U intel@ 6th Gen i3-6100U/ i5-6200U/ i7-6500U / Celeron@ 3855U |
| CPU package | BGA | |
| chipset | intel® Skylake-U serial SOC | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133MHz |
| socket | 1 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Intel HD Graphics 520(I7-6500U graphics card); graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | support max resolution(HDMI1.4)4096*2304@30HZ support 4k display output | |
| I/O interface | Port | 1*LAN 1*HDMI 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 4*USB2.0 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator 1*80pin standard OPS port |
| OPS straight card interface | 1*LINE-OUT 1*HDMI or1*DP (pick one from two ) 1*DC 3*USB 1* switch button | |
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 interface |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum fan heatsink | |
| storage | SATA | 1 standard SATAIII interface, maximum transfer rate of 6Gb/s (and SATA_HDD one by one, default is SATA_HDD) |
| NGFF | 1*NGFF_SSD Port | |
| Other | 1*12V 60W power adapter 1*OPS riser card (optional) 1*WIFI antenna | |
| Power type | Power type | Single input DC power supply,DC12V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*118*29.6 mm |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 7 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
