| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P07-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Dual Cores 4 Threads I5-3210M | RAM: | 1*DDR3 Socket |
|---|---|---|---|
| Ethernet: | 1*Gigabit Ethernet Port | Storage: | 4* Standard SATA3.0+1* Mini-PCIe MSATA |
| COM Port: | 1*RS232 | WIFI: | Support WIFI |
| Dimension: | 180*174*42mm | Power Supply: | Single DC Power Supply, DC12 5A |
| Highlight: | I7 OPS MINI PC,I5 OPS MINI PC,RS232 fanless pc mini |
||

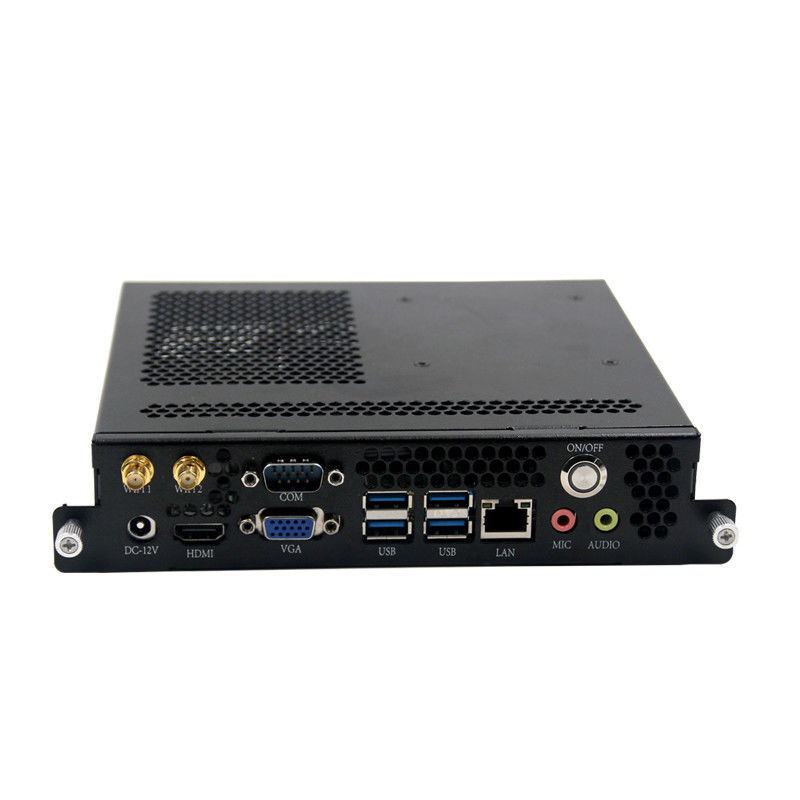

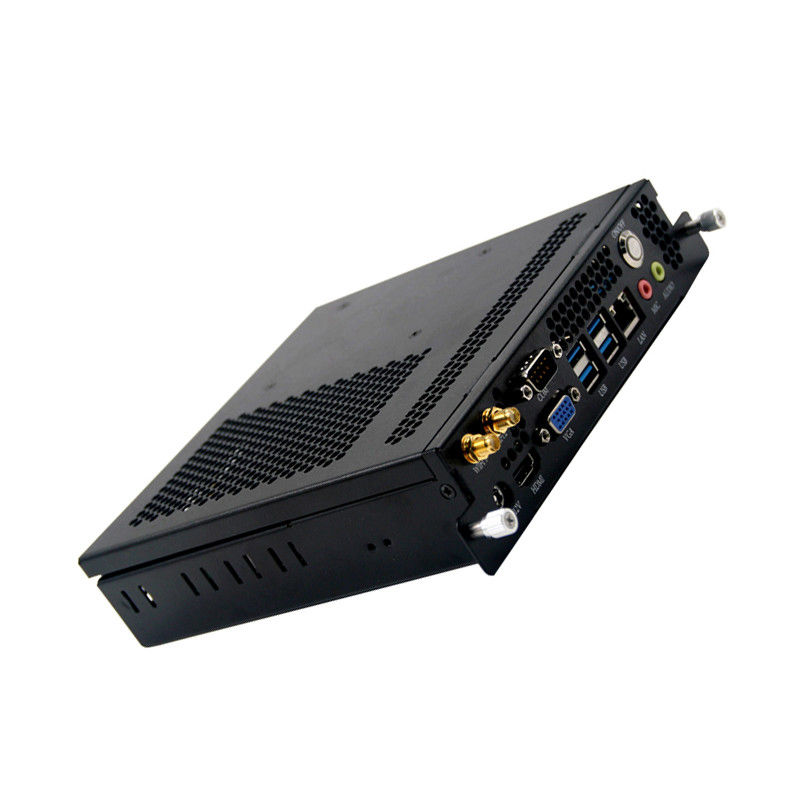

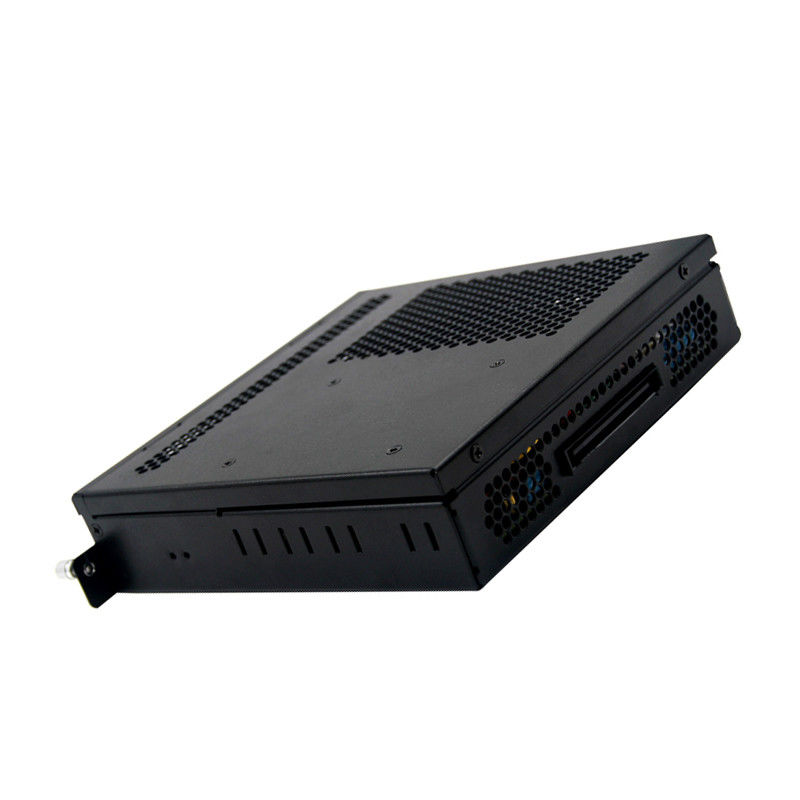

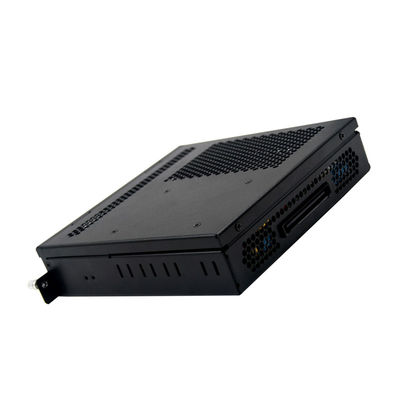

3th Ivy Bridge i3 i5 i7 fanless OPS mini PC with RS232 for interactive whiteboard computer
Notice :
When you inquiry , you can choose the following Model :
OPSPC-P07-3TH-I3 , Integrated Intel® Ivy Bridge i3-3110M dual cores 4 threads 2.4Ghz processor
OPSPC-P07-3TH-I5 , Integrated Intel® Ivy Bridge i5-3210M dual cores 4 threads 2.5~3.1Ghz processor
OPSPC-P07-3TH-I7 Integrated Intel® Ivy Bridge i7-3517U Dual core 4 threads 1.9~3.0Ghz processor
Dual core i5-3210M fanless OPS mini PC with RS232 for interactive whiteboard computer
Key features
Integrated Intel® dual Cores 4 threads i5-3210M 2.5~3.1Ghz Processor
Support Single 1066/1333/1600 MHz
Onboard 1*Gigabit Ethernet Port
4*SATA3.0
1* Mini-SATA for SSD
1*COM
1*HDMI
1*VGA
4*USB3.0
1*80pin standard OPS port
Support WIFI
Single DC Power Supply, DC12V 5A
Size: 180*174*42mm
Specifications
| Processor | CPU |
Integrated Intel Mobile 3th Ivy Bridge-M dual Cores 4 threads i5-3210M 2.5~3.1Ghz Processor Max Turbo Frequency 3.1Ghz |
| CPU package | RPGA988 | |
| chipset | HM76/HM77 | |
| BIOS | UEFI BIOS | |
| Memory | Technology Architecture | Single Channel DDR3 1066/1333/1600 MHz |
| socket | 1*DDR3 SODIMM 204 Socket | |
| Video | Graphic controller | Intel HD Graphics 4000 |
| VGA | VGA support resolution 2880*1800(specifically, look at the CPU model) | |
| HDMI | Max resolution support HDMI(1.4) 1920*1080 | |
| I/O interface | Port |
1*LAN 1*HDMI 1*VGA 1*COM 1*DC 1*MIC-IN 1*LINE-OUT 4*USB3.0 2*WIFI Antenna interface 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI 1*DP 1*DC 3*USB2.0 1*Power on /off button |
|
| Internet | controller |
1*RTL8111H Gigabit Ethernet LAN 1*NGFF Interface support WIFI/ 3G/4G module |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 4*Standerd SATA3.0 interface(Maximum transmission rate to 3Gb/s) |
| MINI-SATA | 1*MINISATA for SSD | |
| Power type | Power type | Single input DC power supply,12V-DC,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 180*174*42mm |
| Standard Accessories |
1*12V 60W Adapter 1*OPS converter (Optional) 1*WIFI Antenna |
|
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
