| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P06-4TH-I3 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Integrated Intel® Dual Corei3-4010U 1.7Ghz Processor | RAM: | Onboard 2GB\4GB DDR3L |
|---|---|---|---|
| Ethernet: | 1*Gigabit Ethernet Port | Storage: | 1* Standard SATA3.0+1* Mini-PCIe MSATA |
| WIFI: | Support WIFI | Dimension: | 200*194.8*29.8mm |
| Power Supply: | Single DC Power Supply, DC12-19V | ||
| Highlight: | I3-4010U OPS MINI PC,OPS MINI PC Embedded,OPS 4gb mini pc |
||

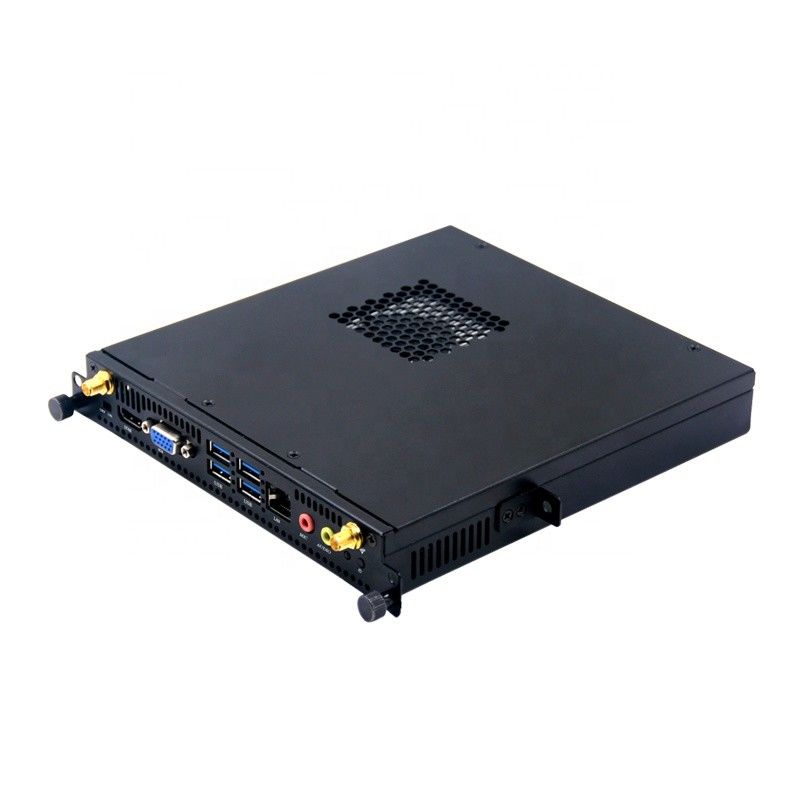

Haswell i3-4010U Industrial Mini PC Embedded OPS pc onboard 4GB ram electronic whiteboard
Haswell i3-4010U Industrial Mini PC Embedded OPS pc onboard 4GB ram
Key features
Integrated Intel® dual Core 4 threads i3-4010U 1.7Ghz Processor
Onboard 2GB4GB DDR3L
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1* Mini-PCIe MSATA
1*HDMI
1*VGA
4*USB3.0
1*80pin standard OPS port
Support WIFI
Single DC Power Supply, DC12-19V,+/-5%
Size: 200*194.8*29.8mm
Specifications
| Processor | CPU |
Support Intel Core™ 4th Haswell-U Soc i3/i5/i7 processor Integrated Intel® dual Core 4 threads i3-4010U 1.7Ghz Processor |
| CPU package | BGA | |
| chipset | intel® Haswell-U serialSOC | |
| BIOS | AMI 64M BIOS | |
| Memory | Technology Architecture | Singel channel DDR3L 1066/1333/1600MHz |
| Onboard | Onboard 2GB4GB DDR3L | |
| socket | Can add one ram socket ,Max to be 8GB Ram | |
| Video | Graphic controller | Intel HD Graphics 4400 (I3-4010U graphics card); graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | Maximum resolution support (HDMI1.4)3200*2000@60HZ support 4K display output | |

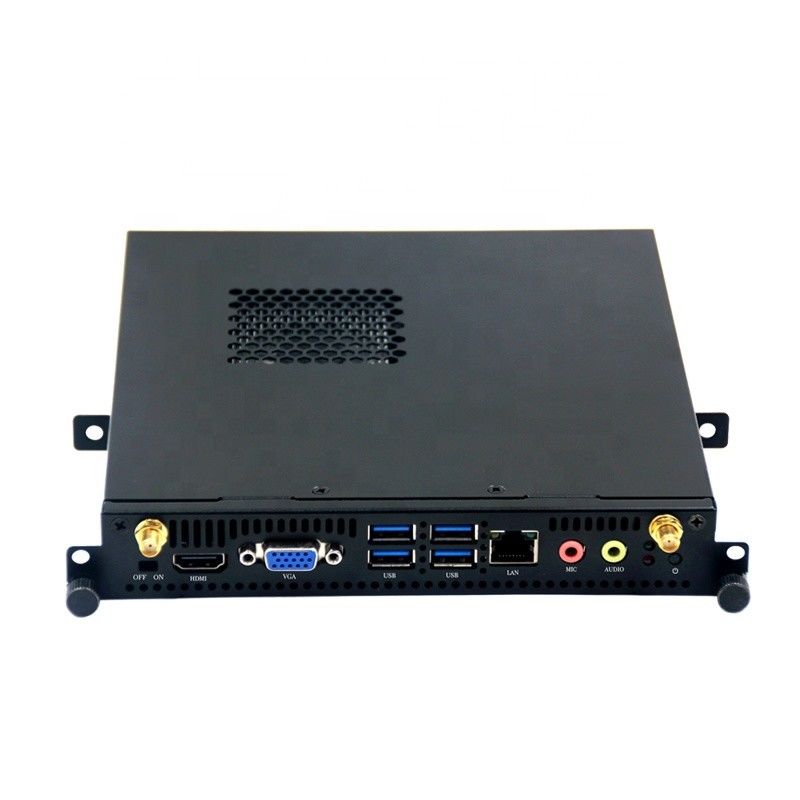

| I/O interface | Port |
1*LAN 1*(HDMI) 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 4*USB3.0 2*WIFI antenna interface 1*80pin standard OPS port |

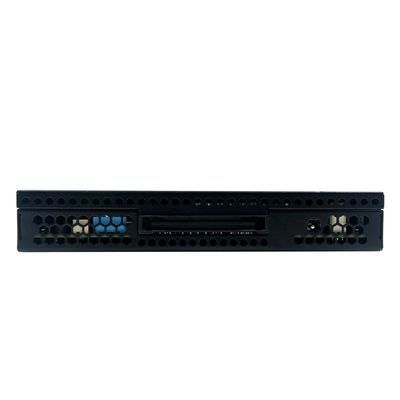

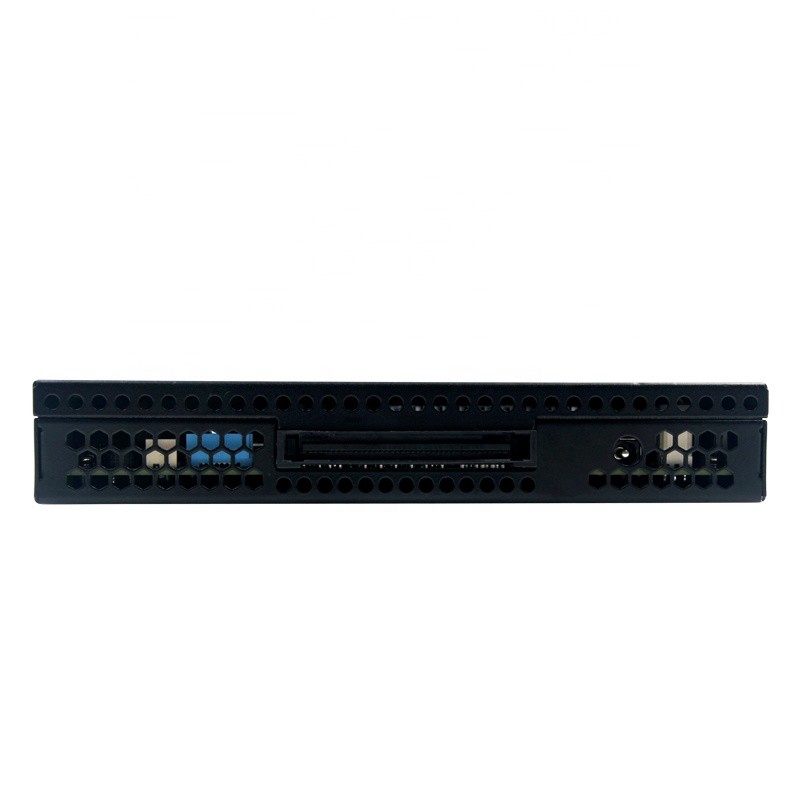

| OPS straight card interface |
1*LINE-OUT 1*HDMI 1*DC 3*USB2.0 1*Power on /off button |
|
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 1 *standard SATAIII interface, the maximum transfer rate of 6Gb / s |
| M-SATA | 1* Mini-PCIe MSATA Socket, support SANDISK protocol, the maximum transfer rate of 6gb / s | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 200*194.8*29.8mm mm |
| Standard Components | 1*12V 60W power adapter 1*OPS card (Optional) 1*WIFI antenna interface | |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
