| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P05-5TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| CPU: | Intel®Broadwell-U I3-5005U / I5-5200U / I7-5500U | RAM: | 1 *DDR3L |
|---|---|---|---|
| Ethernet: | 1*Gigabit Ethernet Port | Storage: | 1* Standard SATA3.0+1* Mini-PCIe MSATA |
| WIFI: | Support WIFI | Dimension: | 179.6*118*30 Mm |
| Power Supply: | Single DC Power Supply, DC12-19V | ||
| Highlight: | l I7-5500U Mini Industrial Computer,Broadwell Mini Industrial Computer,Whiteboard industrial mini computer |
||
Broadwell i7-5500U industrial OPS computer for office electronic interactive whiteboard pc
Notice:
When you inquiry , you can choose the following Model
OPSPC-P05-5TH-I3 , Integrated Intel®5th Mobile Broadwell-U i3-5005U dual cores 4 threads 2.0Ghz
OPSPC-P05-5TH-I5 , Integrated 5th Generation Intel® Core™ i5-5200U dual cores 4 threads 2.2~2.7GHz Processor
OPSPC-P05-5TH-I7 , Integrated 5th Generation Intel® Core™ i7-5500U dual cores 4 threads 2.4~3.0GHz Processor
Broadwell i3-5005U i5-5200U i7-5500U industrial OPS computer for office electronic interactive whiteboard pc
Key features
Integrated Intel®Broadwell-U i3-5005U / i5-5200U / i7-5500U
Support 1 *DDR3L SODIMM 204 Socket 1066/1333/1600MHz
Onboard 1*Gigabit Ethernet Port
1*SATA3.0
1* Mini-PCIe MSATA
1*HDMI
1*VGA
2*USB3.0
2*USB2.0
1*80pin standard OPS port
Support WIFI
Single DC Power Supply, DC12-19V,+/-5%

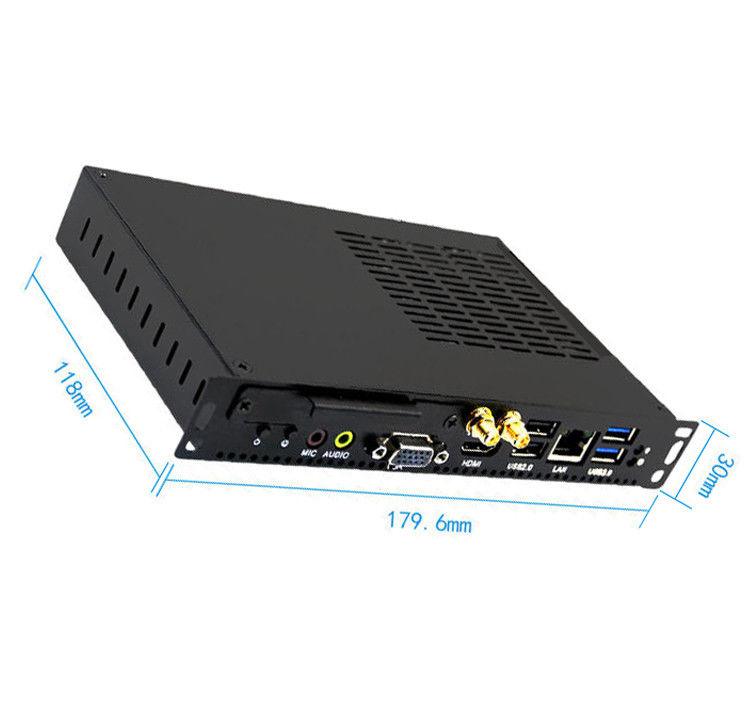

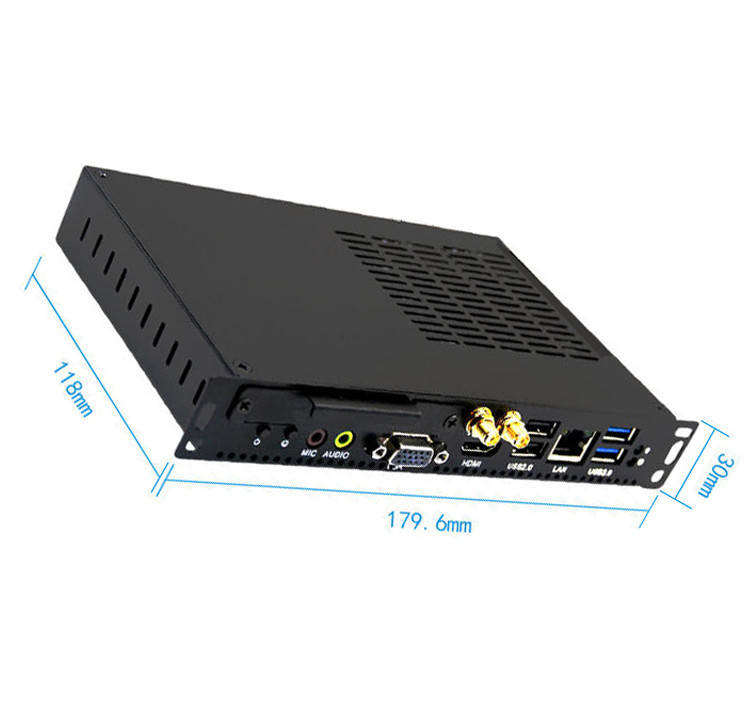

Size: 179.6*118*30 mm
Specifications
| Processor | CPU |
Integrated Intel®Broadwell-U i3-5005U / i5-5200U / i7-5500U |
| CPU package | BGA | |
| chipset | intel® Broadwell -U serialSOC | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Singel channel DDR3L 1066/1333/1600MHz |
| socket | 1 *DDR3L SODIMM 204 Socket | |
| Video | Graphic controller | Intel HD Graphics 5500 (I3-5010U graphics card); graphics models related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | Maximum resolution support (HDMI1.4)3200*2000@60HZ support 4K display output | |
| I/O interface | Port |

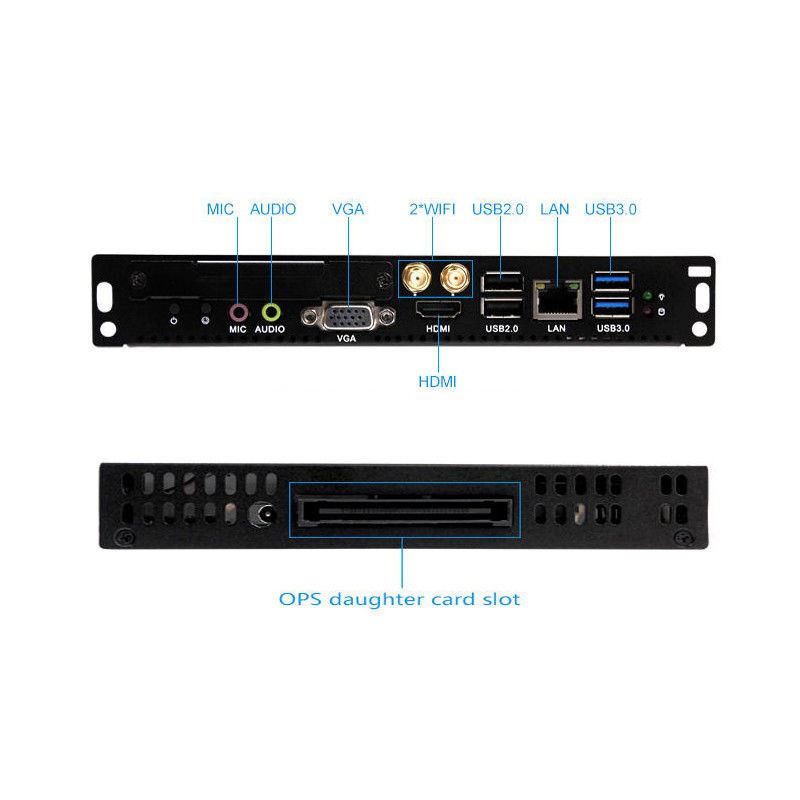

1*LAN 1*(HDMI) 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 2*USB3.0 2*USB2.0 2*WIFI antenna interface 1*switch button 1*Reset button 1*Hard disk indicator 1*Power Indicator 1*80pin standard OPS port |
| OPS straight card interface |
1*LINE-OUT 1*HDMI 1*DP 1*DC 3*USB2.0 1*Power on /off button |
|
| Internet | controller | 1 * RTL8111E-V Gigabit Ethernet, RJ45 |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 1 *standard SATAIII interface, the maximum transfer rate of 6Gb / s |
| SATA_HDD | 1 * SATA_HDD hard disk interface, the maximum transfer rate of 6Gb / s | |
| M-SATA | 1* Mini-PCIe MSATA Socket, support SANDISK protocol, the maximum transfer rate of 6gb / s | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 179.6*118*30 mm |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
