| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P02-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Intel® J1900 | RAM: | Single Channel DDR4 |
|---|---|---|---|
| Network: | 1* Gigabit LAN | NGFF_SSD Port: | 1*NGFF_SSD Port |
| SATAIII: | 1* Standard SATA2.0 | Dimension: | 195*180*30mm |
| Highlight: | J1900 Mini PC Intel Quad Core,Mini PC Intel Quad Core 30mm,mini computer box 1LAN |
||

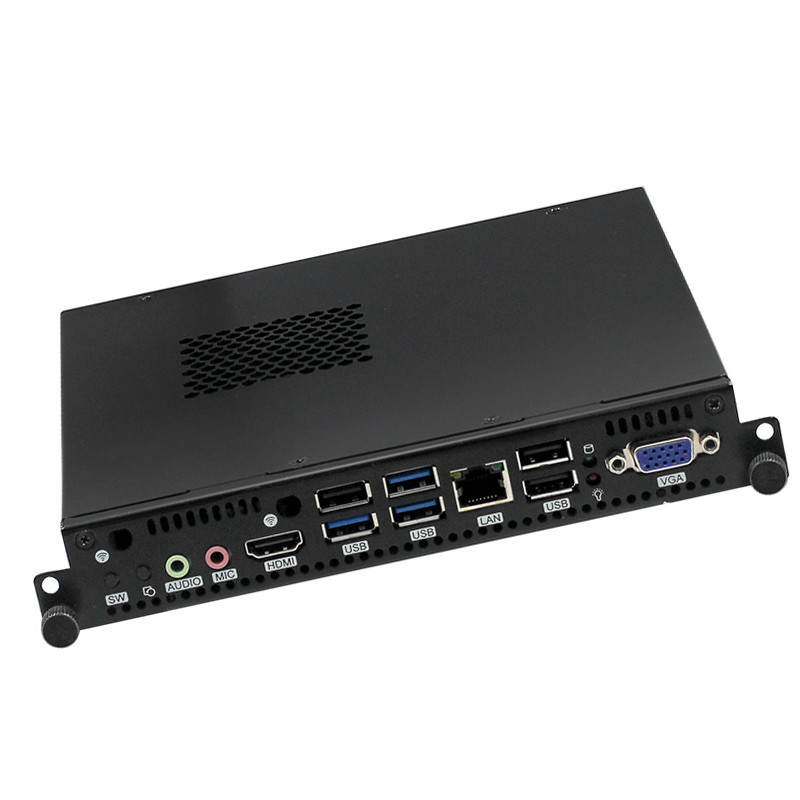

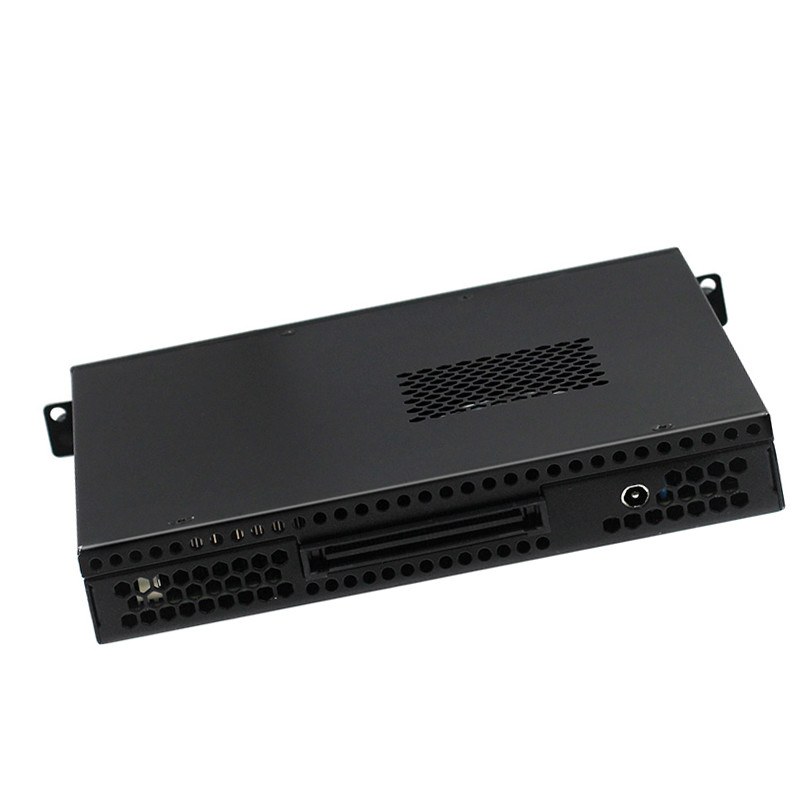

Quad core J1900 CPU OPS slot computer 30mm Mini PC Box PC for digital signage interactive whiteboard
Key features
Integrated Celeron® Baytrail quad core 4 threads 2.0~2.42Ghz J1900 processor
Support Single Channel DDR3 1066/1333 MHz
Onboard 1*Gigabit Ethernet Port
1*SATA2.0
1*NGFF_SSD Port
1*HDMI
1*VGA
1*USB3.0
5*USB2.0
1*80pin standard OPS port
Support WIFI
Single DC Power Supply, DC12-19V,+/-5%
Size: 195*180*30mm
Specifications
| Processor | CPU |
Integrated Celeron® Baytrail quad core 4 threads 2.0Ghz J1900 processor Burst Frequency 2.42Ghz |
| CPU package | BGA | |
| chipset | Baytrail-D/I/M Processor | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single Channel DDR3 1066/1333 MHz |
| socket | 1*DDR3 SODIMM 240 Socket | |
| Video | Graphic controller | Intel HD Graphics |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | (HDMI) Maximum supported 1920x1200 | |
| I/O interface | Port |
1*LAN 1*HDMI 1*VGA 1*DC 1*MIC-IN 1*LINE-OUT 1*USB3.0 5*USB2.0 2*WIFI antenna Ports |
| OPS straight card interface |
1*LINE-OUT 1*HDMI or1*DP (pick one from two ) 1*DC 3*USB2.0 1* switch button |
|
| Internet | controller |
1*RTL8111H Gigabit Ethernet LAN 1*NGFF Interface support WIFI/ 3G/4G module |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| storage | SATA | 1*Standerd SATAII interface(Maximum transmission rate to 3Gb/s) |
| NGFF | 1*NGFF_SSD Port | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 195*180*30mm |
Application
Teaching whiteboard / Education electronic whiteboard / Classroom interactive whiteboard
Meeting interactive whiteboard / Coference interactive whiteboard
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
