| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | OPSPC-P02-H110 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Processor: | Intel® 6th And 7th I3-i5-i7 | RAM: | Single Channel DDR4 |
|---|---|---|---|
| Network: | 1* Gigabit LAN | NGFF_SSD Port: | 1*NGFF_SSD Port |
| SATAIII: | 1* Standard SATA3.0 | Dimension: | 195*180*30mm |
| Highlight: | DDR4 OPS Mini PC,1 LAN OPS Mini PC,Industrial I3 Mini PC |
||

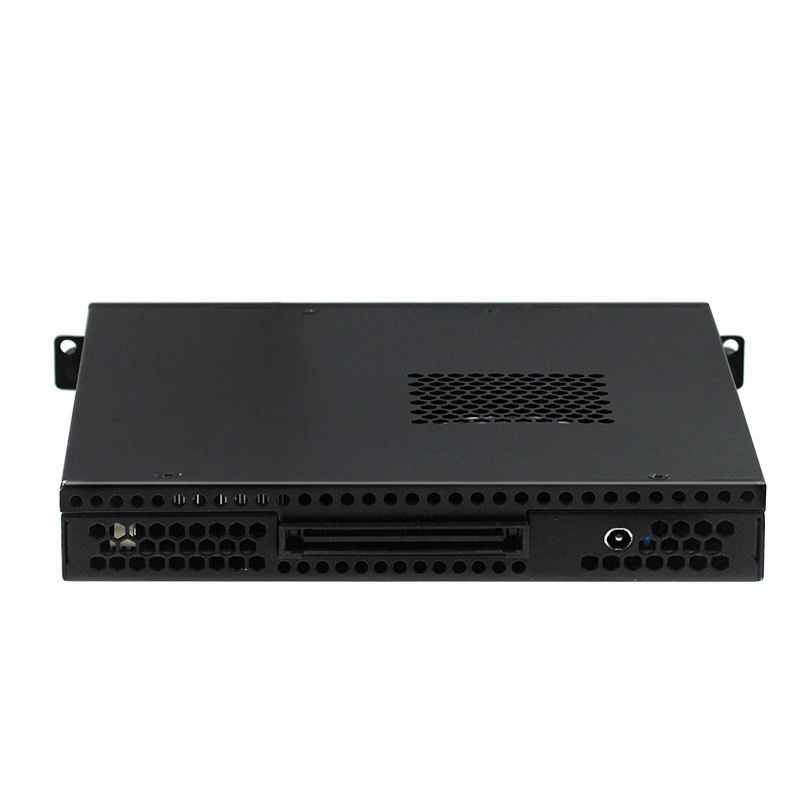

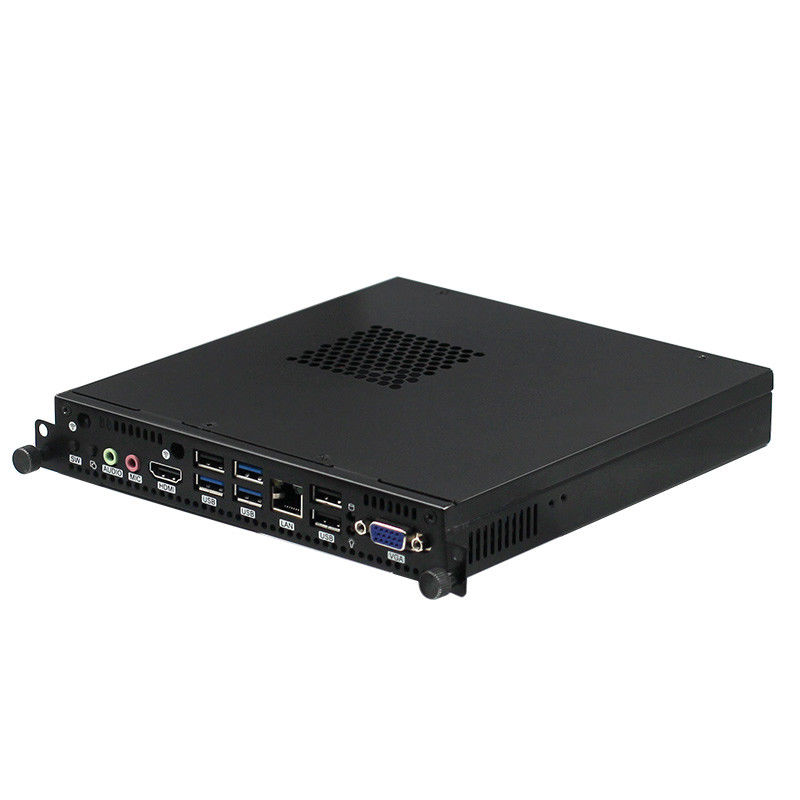

LGA1151 Intel® 6th 7th i3 i5 i7 industrial OPS pc H110 H170 Mini OPS PC for digital signage interactive whiteboard
Key features
Support LGA1151 and Intel® 6th and 7th i3-i5-i7/Pentium/Celeron CPU
H110/H170 high speed Chipset
1 *DDR4 SODIMM 260 Socket
Intel HD Graphics
Onboard 1*Gigabit Ethernet Port
1* standard SATAIII interface
1*NGFF Port
1*HDMI
1*VGA
4*USB3.0
2*USB2.0
Support OPS-C+ expansion
Support WIFI
Size: 195*180*30mm
Specifications
| Processor | CPU | Support LGA1151 and Intel® 6th and 7th i3-i5-i7/Pentium/Celeron CPU |
| CPU package | LGA1151 | |
| chipset | H110/H170 high speed Chipset | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Single channel DDR4 2133/2400MHz |
| socket | 1 *DDR4 SODIMM 260 Socket | |
| Video | Graphic controller | Intel HD Graphics 610 (G4560 Graphic card);Graphics card model is related to CPU |
| VGA | VGA support max resolution:2048x1536 | |
| HDMI | support max resolution (HDMI1.4)4096*2304 support 4k display | |
| I/O interface | Port |

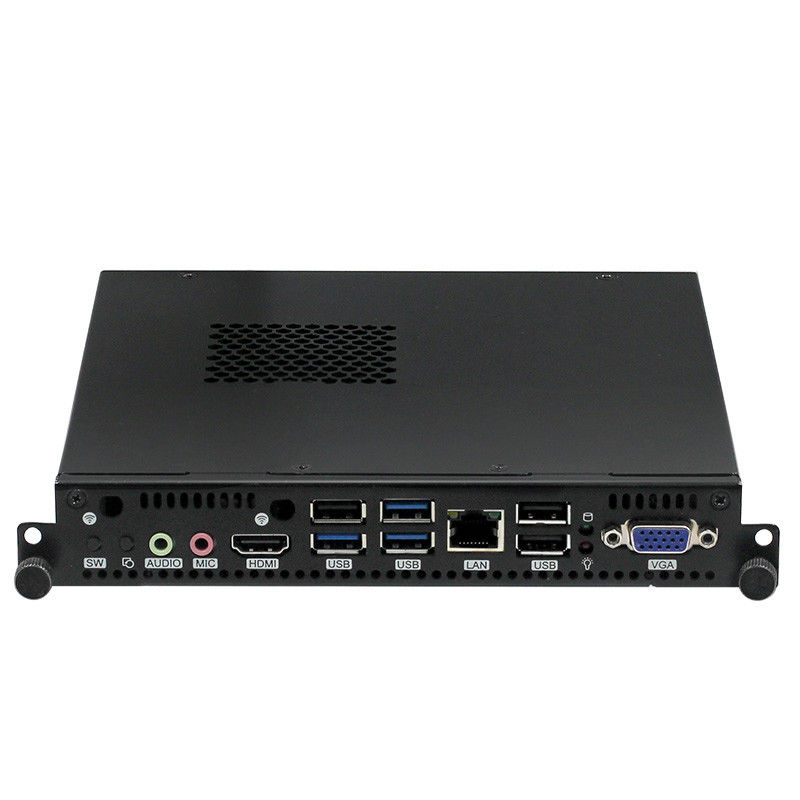

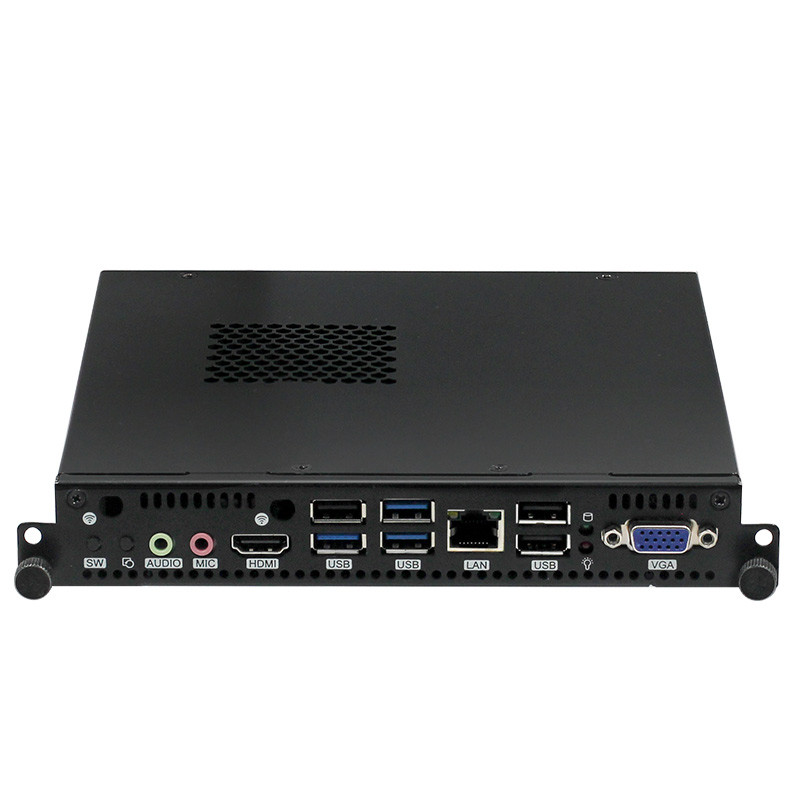

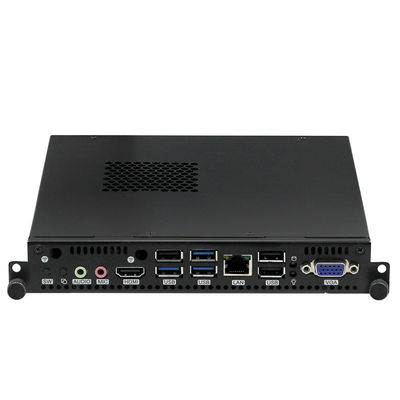

1*LAN 1*HDMI 1*VGA 1*COM 1*DC 1*MIC-IN 1*LINE-OUT 4*USB3.0 2*USB2.0 2*WIFI antenna Ports |
| OPS straight card interface |
1*LINE-OUT 1*HDMI or1*DP (pick one from two ) 1*DC 3*USB2.0 1* switch button |
|
| Internet | controller | 1*RTL8111E gigabit Lan Port |
| Expansion | Mini-PCle | 1*Mini-PCIe slot for PCIe and USB devices |
| Audio | controller | Realtek HD ALC662 audio decoding (left and right channel + microphone) |
| storage | SATA |
1* standard SATAIII interface, maximum transmission rate 6Gb/s 1*SATA_HDD Port |
| NGFF | 1*NGFF Port | |
| Hardware control | Watchdog timer | 0-255 seconds to provide watchdog routines |
| Cooler | Aluminum heat sink(fan or fanless) | |
| Power type | Power type | Single DC Power Supply, DC12-19V,+/-5% |
| Working Environment | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Operating humidity | 0% to 90% relative humidity, no condensation | |
| Storage humidity | 0% to 90% relative humidity, no condensation | |
| Dimension | size | 195*180*30mm |
