| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-BF1404003HDS- 11-I3 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 178mm*126mm*55mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Core™ I3-1115G4 |
| RAM: | 2 *DDR4 | Gigabit LAN: | 4* 2.5G LAN |
| COM Port: | 1* CISCO Standard RS232 Serial |
Intel® Core™ i3-1115G4 4*2.5G LAN Firewall Pc PFSENSE industrial computer Fanless mini pc
Key Features
Aluminium alloy chassis
Intel® Core™ i3-1115G4 dual-core quad-thread 2.0~4.1GHz CPU
2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB
1×SATA interface, 1×M.2_2280 interface
1×MINI PCI-E interface
4*INTEL i225/i226 LAN
1×RJ45 COM port
1×DP+HD interface
4×USB3.0
1×SIM card slot
DC 12V-4A, 5.5×2.5mm barrel jack

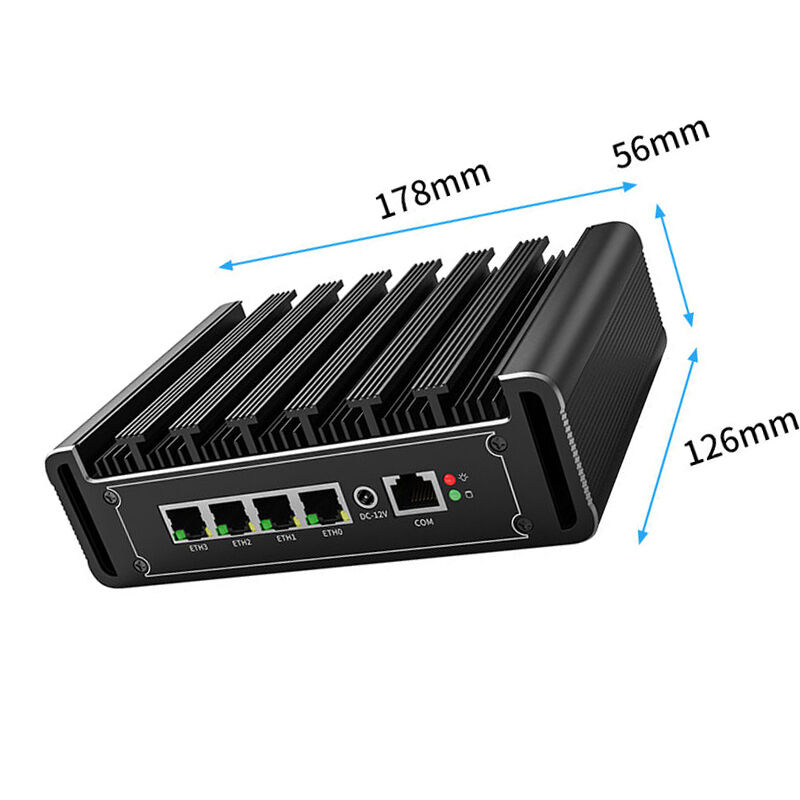

Dimension: 178 × 126 × 55 mm
Specifications
|
Model No. |
VGS-BF1404003HDS-11-I3 |
|---|---|
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| CPU | Intel® Core™ i3-1115G4 dual-core quad-thread 2.0~4.1GHz CPU |
| Memory | 2×DDR4 260PIN SO-DIMM slots, support DDR4 3200, single stick max 32GB |
| Storage | 1×SATA interface, 1×M.2_2280 interface |
| Expansion Bus | 1×MINI PCI-E interface |
| Network | Onboard INTEL I225/I226 2.5G NIC chip |

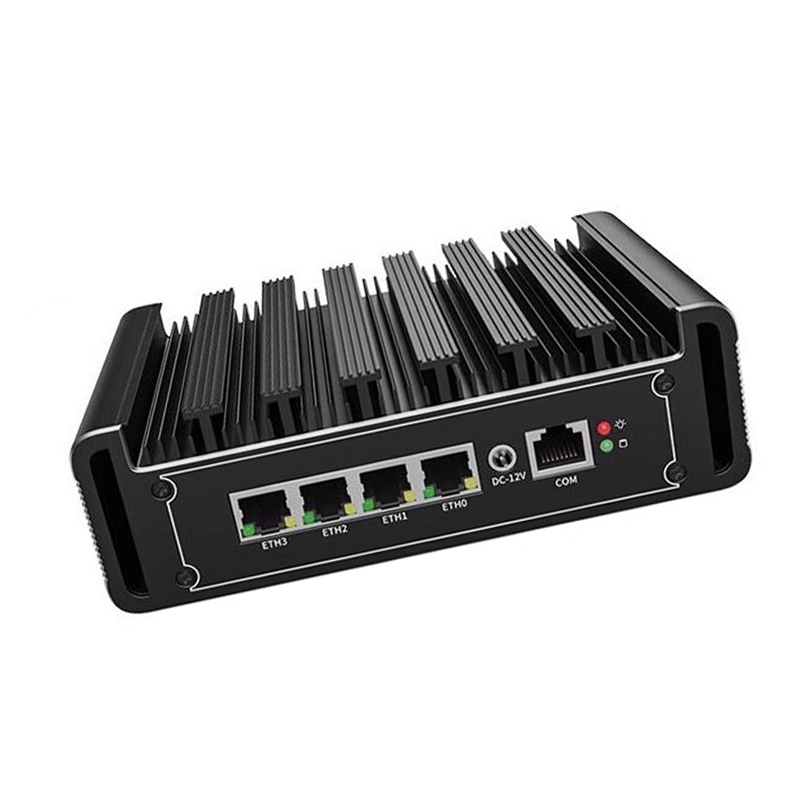

| Front Panel I/O | 4×2.5G Ethernet ports, 1×RJ45 COM port, 1×DC power interface, 1×LED indicator |
| i3-1115G4 Rear Panel I/O |
1×DP+HD interface, 4×USB3.0 1×PWR_BTN switch button, 1×SIM card slot |
| Onboard I/O | 1×SATA power interface, 1×CPU fan power socket, 1×7pin SATA |
| Power Supply | DC_IN 12V |
| Operating Temperature | -20~55 ℃ |
| Ambient Humidity | 5~90% relative humidity, non-condensing |
| Dimensions | 178 × 126 × 55 mm |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
