| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF00204003-J4125 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Alloy | Dimension: | 137mm*127mm*40mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron® Processor J4125 Quad Core |
| RAM: | 1 X DDR4 2133/2400 MHz | Gigabit LAN: | 4 Gigabit LAN |
| Highlight: | Industrial Fanless Mini Pc J4125,PFsense Industrial Fanless Mini Pc,4 Gigabit firewall appliance |
||
Industrial computer fanless mini pc J4125 4 Gigabit LAN firewall PC appliance soft router support pFsense
J4125 quad core 4 LAN AES NI pfsense Mikrotik network firewall appliance desktop mini pc
Key Features
Integrated Intel® Celeron® Processor J4125 quad core 4 threads 2.0~2.7G hz processor
1 x DDR4 2133/2400 MHz
Support 1*MSATA SSD expansion
4*RJ45 Gigabit Lan
2*USB3.0
1* H-D-M-I display output
1* VGA
DC 12V 4A power supply

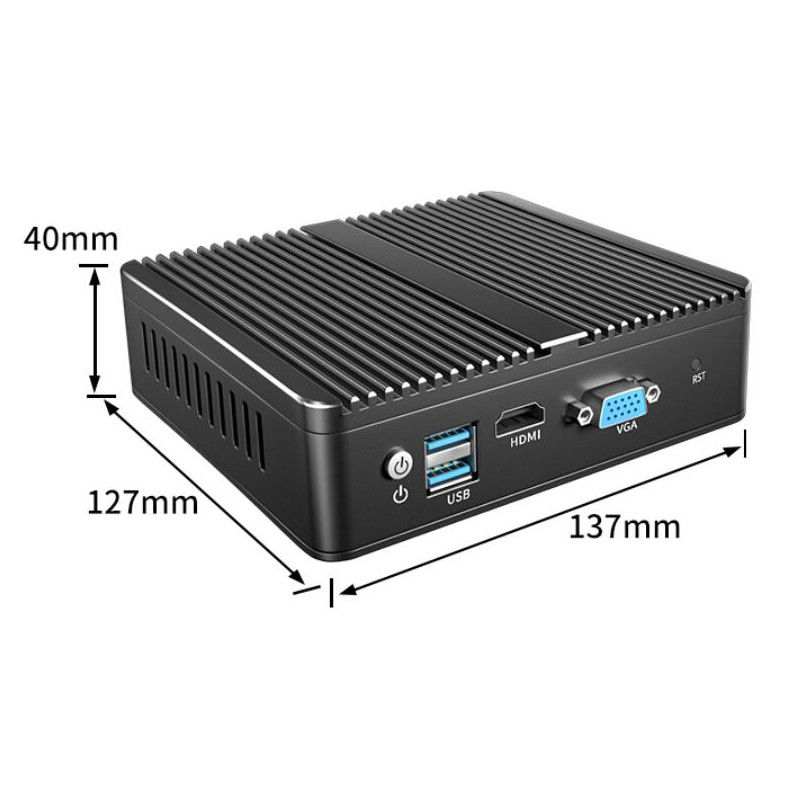

Dimension: 137mm*127mm*40mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF00204003-J4125 | |
| Chassis | Color | Black |
| Dimension | 137mm*127mm*40mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor | Integrated Intel® Celeron® Processor J4125 quad core 4 threads 2.0~2.7G hz processor |
| Chipset | Gemini Lake Refresh series chipset | |
| Graphics |
Integrated Intel® UHD Graphics 600 support 1*H-D-M-I +1*VGA |
|
| RAM | Memory | 1 x DDR4 2133/2400 MHz |
| Storage | SSD | Support 1*MSATA SSD expansion |
| Audio | Audio | N/A |
| Network | Ethernet | 4*INTEL i211 Gigabit Network Cards |
| WiFi | N/A | |

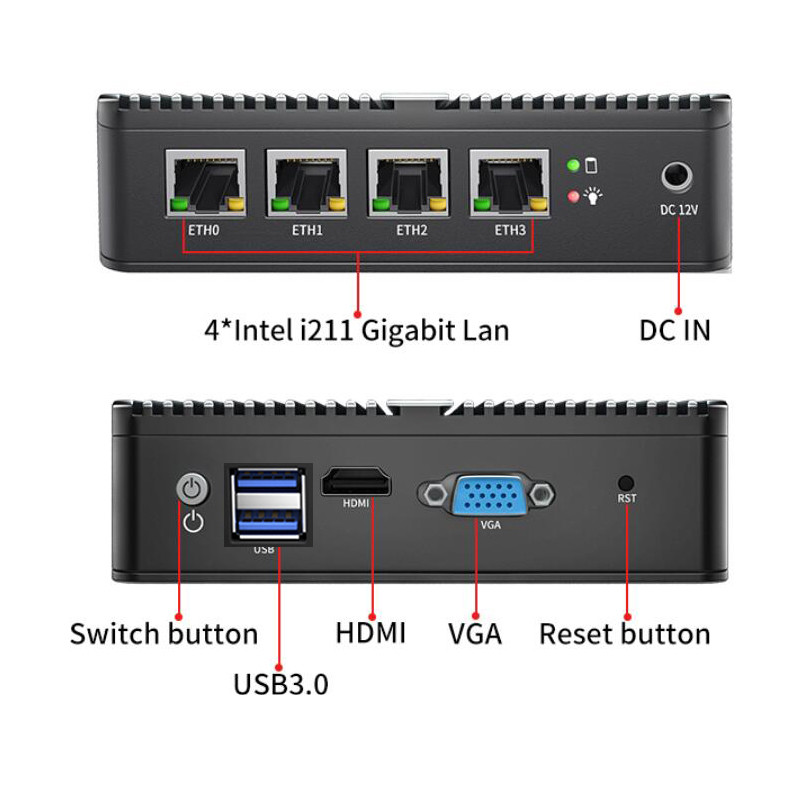

| Interface | Front I / O | 1*Reset button |
| 1*power button | ||
| 2*USB3.0 | ||
| 1*VGA | ||
| 1* H-D-M-I | ||
| Back I / O | 1*DC Power adapter interface | |
| 4*RJ45 Gigabit Lan | ||
| Expansion | Mini PCIe | Support 1 mini PCIE (either wifi or 4G) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test.
3.High-quality product and competitive price.
4.1 years Warranty
