| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF10406003-11TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 180*125*55mm |
|---|---|---|---|
| Chassis Color: | Silver | CPU: | Tiger Lake I3-1110G4 / I5-1135G7 / I7-1165G7 |
| RAM: | 2 *DDR4 | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | Mini Firewall PC,Firewall PC I5-1135G7,I7-1165G7 quad core mini pc |
||
11th Generation quad core Intel® i5-1135G7 / i7-1165G7 6 LAN firewall appliance mini PC pFsense soft router
Notice:
When you inquiry , you can choose the following Model
PF10406003-11TH-I3 Integrated 11th Generation Tiger Lake Intel® Core™ i3-1110G4 dual cores 4 threads 3.9GHz Processor
PF10406003-11TH-I5, Integrated 11th Generation Tiger Lake Intel® Core™ i5-1135G7 Quad cores 8 threads 2.4~4.2GHz Processor
PF10406003-11TH-I7, Integrated 11th Generation Tiger Lake Intel® Core™ i7-1165G7 Quad cores 8 threads 2.8~4.7GHz Processor
11th Generation quad core Intel® i5-1135G7 / i7-1165G7 6 LAN firewall appliance mini PC pFsense soft router
Key Features
Integrated Intel® Core™ 11th generation Tiger Lake i3-1110G4 / i5-1135G7 / i7-1165G7
2 *DDR4 SODIMM 260 Socket
Support Dual Channel DDR4 2400/2666/3200MHz
1* SATAIII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI
4*USB3.1
1*RJ45 COM

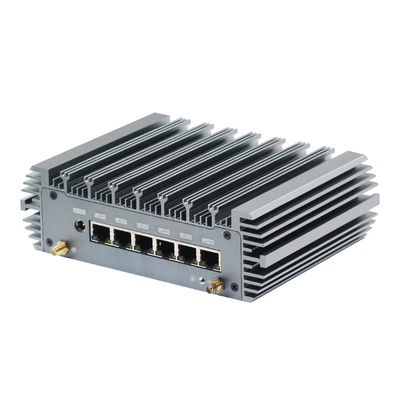

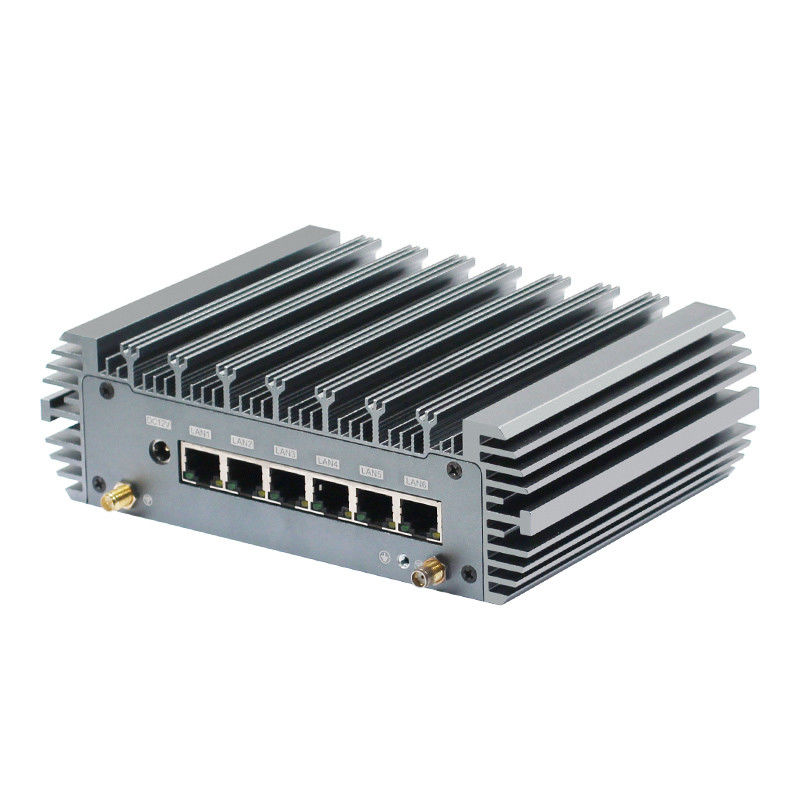

6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%
Dimension: 180*125*55mm
Aluminium chassis
Specifications
| Chassis | Color | Gray | |
| Dimension | 180*125*55mm | ||
| Material | High-quality aluminum mini pc case | ||
| Platform | Processor | Integrated Intel® Core™ 11th generation Tiger Lake i3-1110G4 / i5-1135G7 / i7-1165G7 | |
| Chipset | Intel® Tiger Lake serial SOC | ||
| Video | Graphics |
Intel® Iris® Xe Graphics 1*H-D-M-I Support maximum resolution(HDMI2.0)4096*2304@60HZ Support 4K display |
|
| Memory | Technology framework | Dual Channel DDR4 2400/2666/3200MHz | |
| RAM socket | 2 *DDR4 SODIMM 260 Socket,Support Dual Channel | ||
| Storage | SATA | 1 *standard SATAIII interface, maximum transfer rate 6Gb/s | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket, support SANDISK protocol, maximum transfer rate 6gb/s | ||
| Network | Ethernet | 6*Intel I211AT or Intel I210(Choose one of two to choose 4 lan ports) | |
| WiFi | Support | ||
| Input/Output Interface | Ports |

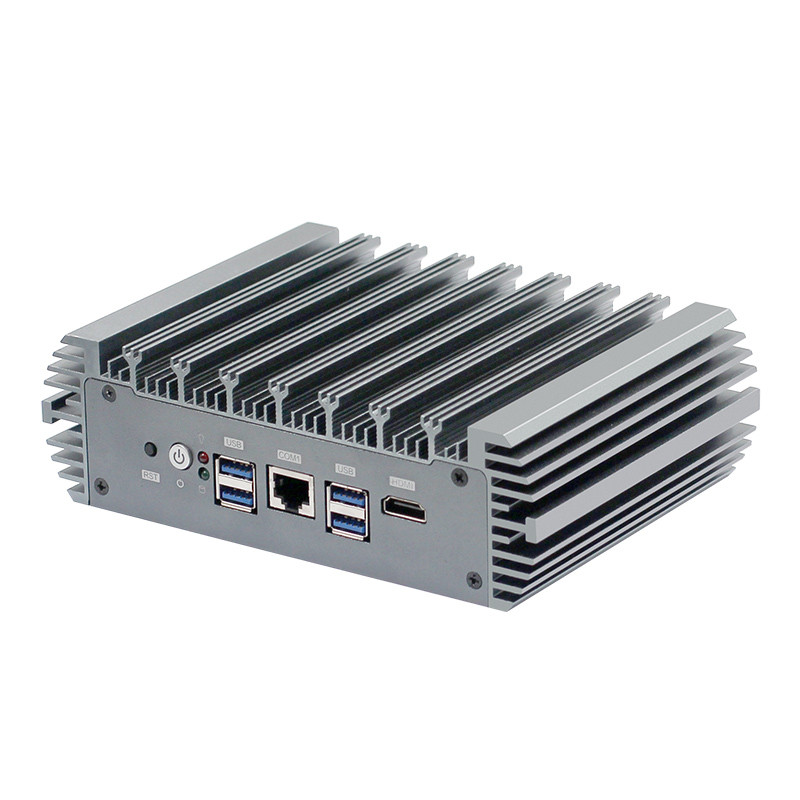

6*LAN 1*RJ45 port RS232 1*HDMI 1*DC 4*USB3.1(GEN 2) 2*WIFI antenna interface 1*switch button 1*reset button 1*hard disk indicator 1*power indicator |
|
| Expansion | Mini PCIe | 1 Mini-PCIe slot, option 1: support USB signal device, option 2: Mini-PCIE slot supports PCIE signal and USB signal | |
| Cooling | Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment) | ||
| Power Supply | Power type | Single input DC power,DC12-19V,+/-5% | |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ | |
| storage temperature | -40℃ ~ +85℃ | ||
| Working humidity | 0% ~ 90% relative humidity, no condensation | ||
| Storage humidity | 0% ~ 90% relative humidity, no condensation | ||
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | ||
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
