Chassis: | Aluminium Chassis | Dimension: | 134*126*45.3 Mm |
---|---|---|---|
Chassis Color: | Black | CPU: | Intel® Bay Trail J1800 / J1900 / E3845 CPU |
RAM: | 1*DDR3L Up To 8GB | Gigabit LAN: | 4* Gigabit LAN |
COM Port: | 1* CISCO Standard RS232 Serial | ||
Highlight: | RJ45 COM Fanless Mini PC,PFsense Fanless Mini PC,E3845 Mini PC 4 LAN |

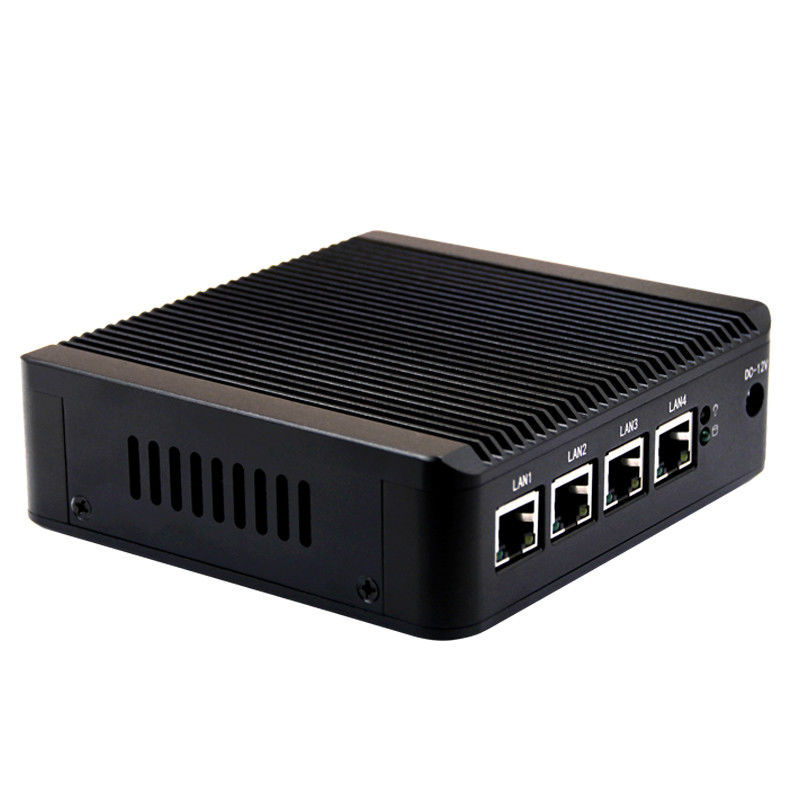

4 ethernet LAN quad core J1900 / E3845 firewall appliance RJ45 COM fanless mini PC support pFsense
Notice:
When you inquiry , you can choose the following Model :
PF11104003-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF11104003-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF11104003-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
4 ethernet LAN quad core J1900 E3845 firewall appliance fanless mini PC support Mikrotik pFsense
Key Features
Integrated Intel® Bay Trail J1800 / J1900 / E3845 CPU
Single channel DDR3L 1066/1333MHz max up to 8GB
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
Onboard 32/64/128G EMMC chip(Optional);
1*HDMI
1*USB3.0
1*USB2.0
1*RJ45 COM
4*RJ45 Gigabit Lan
Single input DC power,DC12V
Dimension: 134*126*45.3 mm
Fanless Design,Noiseless design
Aluminium chassis
Specifications
Chassis | Color | Black | |
Dimension | 134*126*45.3 mm | ||
Material | High-quality pure aluminum mini pc case | ||
Platform | Processor | Intel® Bay Trail J1800 / J1900 / E3845 CPU | |
Chipset | Baytrail-D/I/M processor | ||
Video | Graphics |
Intel HD Graphics 1*H-D-M-I Resolution maximum 1920x1080 |
|
Memory | Technology framework | Singel channel DDR3 1066/1333/1600MHz max to 8GB | |
RAM socket | 1 *DDR3 SODIMM 204 Socket | ||
Storage | SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s | |
M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s | ||
eMMC | On board 32/64/128G EMMMC | ||
Network | Ethernet | 4*Intel I211AT high performance Gigabit Ethernet Port,RJ45 Port | |
WiFi | Support | ||

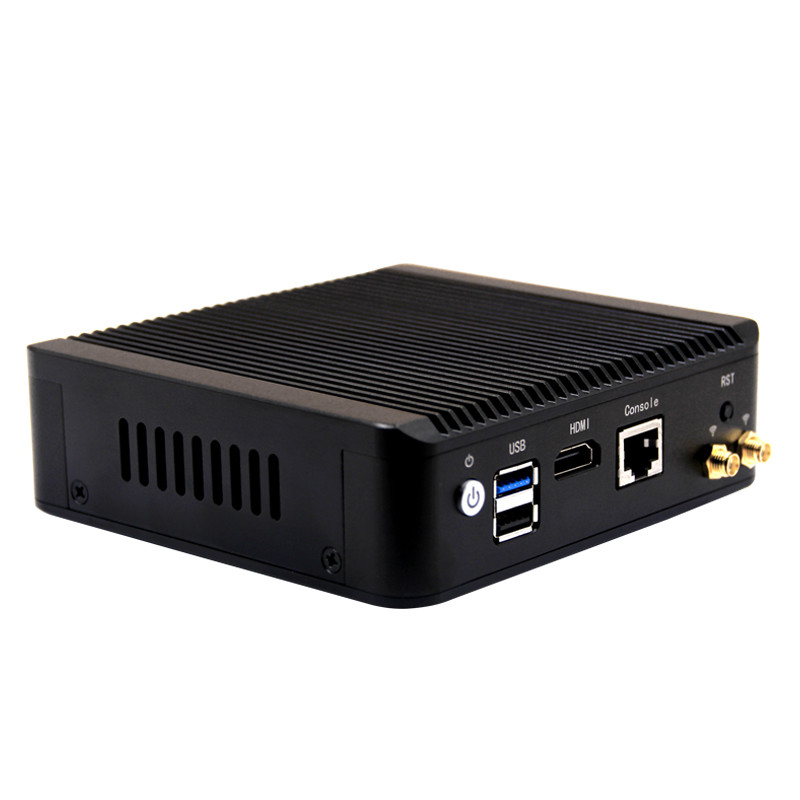

Input/Output Interface | Ports |
4*I211 Gigabit Ethernet 1*Power Indicator 1*Hard disk indicator 1*DC Power supply interface
1*Power switch (with indicator light) 1*Reset Button 1*HDMI 1*RJ45 interface RS232 1*USB2.0 1*USB3.0 |
|
Expansion | Mini PCIe | 1*MINI-PCIE socket,can added wifi,3G/4G module(Support PCIE&USB Signal equipment) | |
Cooling | Fanless Design,Noiseless design | ||
Power Supply | Power type | Single-input DC power supply, DC12V power supply | |
WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ | |
storage temperature | -40℃ ~ +85℃ | ||
Working humidity | 0% ~ 90% relative humidity, no condensation | ||
Storage humidity | 0% ~ 90% relative humidity, no condensation | ||
Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
Advantages
Small size
All Vegashine Firewall mini pcs smaller than A4 paper. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
Durability
All Vegashine Firewall mini pcs are highly intergrated, fanless design makes it runs silent and no need extra maintenance like normal fat comptuters. And most of them using aluminium alloy computer case, very durable.
Low power
all the mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
