1U Rackmount Firewall PC Quad Cores N5105 6 I225 2500M NIC Soft Router Support PFsense

Basic Information
Place of Origin: China
Brand Name: VEGASHINE / OEM
Model Number: BF10206001-N5105
Minimum Order Quantity: 1 unit
Packaging Details: Carton
Delivery Time: 3 to 10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 units per Month
Chassis: High Quality Aluminium Sheet Chassis Dimension: 440mm*250mm*44mm
Chassis Color: Black CPU: Celeron® Jasper Lake N5105 Quad Cores
Memory: Support 2*SO-DIMM DDR4 Max To 16GB Gigabit LAN: 6* Intel® I225B3 2.5G LAN
Highlight:

Firewall PC Quad Cores

,

1U Rackmount Firewall PC

,

PFsense fire wall pc

1U rackmount quad cores N5105 6 I225 2500M NIC firewall PC appliance soft router support pFsense



1U rackmount Celeron® Jasper Lake quad cores N5105 6 * I225 2500M NIC firewall PC appliance soft router support pFsense



Key Features

Integrated Intel® Celeron® Jasper Lake N5105 quad cores 2.0~2.9Ghz Processor

Integrated Intel UHD Graphics

Support 2*SO-DIMM DDR4 max to 16GB

Support 1*MSATA SSD

1* CISCO standard serial port

2* USB3.0

6* Intel® I225B3 2.5G LAN

1* VGA display output

High quality aluminium sheet chassis

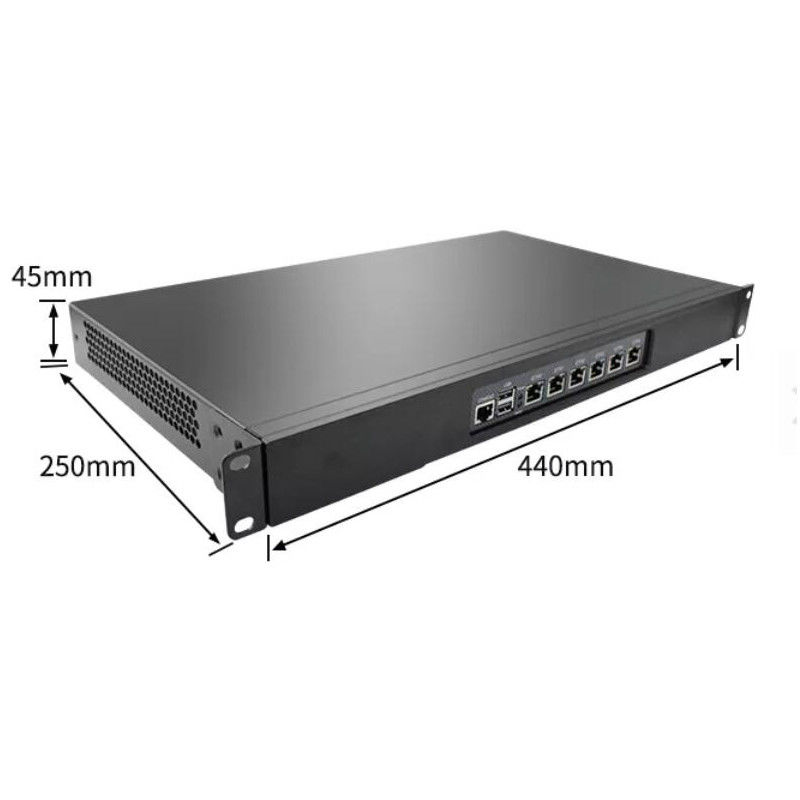

Dimension: 440mm*250mm*45mm

1U rackmount Standard chassis



Specifications

Model No. BF10206001-N5105
Chassis Color Black
Dimension 440mm*250mm*45mm
Structure 1U rackmount Standard chassis
Material High quality aluminium sheet chassis
Platform Processor

Integrated Intel® Celeron® Jasper Lake N5105 quad cores 4 threads 2.0~2.9Ghz Processor

TDP 10W

4M Cache

Chipset Jasper Lake
Graphics

Intel® UHD Graphics

support 1*VGA display output

RAM DDR4 Support 2*SO-DIMM DDR4 max to 16GB
Storage HDD Support 1* 2.5”/3.5” HDD bay
SSD Support 1*MSATA SSD expansion
Audio Audio N/A
Network Ethernet Onboard 6* Intel® I225B3 2.5G LAN
Expansion Mini PCIe 2*Mini PCIE slots ( Mini PCIE2 only support USB signal and 4G module)
I/O Port Serial Port 1* CISCO standard serial port
USB 2* USB3.0
LAN 6* RJ45 Port
LED 1* HDD LED, 1* Power LED
Display 1* VGA display output
Power Supply 1* Power Interface
Power Supply Input AC 110V ~ 240V
Power type ATX power supply
Reliability Operating Temp. 0℃~45℃
Storage Temp. -20℃~70℃
Relative Humidity 5%-95%, no condensing
Vibration 0.5g rms/5-500HZ/random/operating
Operate System Support Win 7/8/10, Linux, Pfsense etc.
