| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-BF1404003HDSF-J5005 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 178x126x56(mm) |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron J5005 Processor Quad-Core |
| RAM: | 2 *DDR4 | Gigabit LAN: | 4 ×Intel I226 2.5G LAN |
| COM Port: | 1* CISCO Standard RS232 Serial |
Intel® J5005 4*2.5G LAN Firewall computer pFsense industrial pc fan cooling
Key Features
Aluminium alloy chassis
Onboard Intel® Celeron J5005 Processor Quad-Core Quad-Thread
2 × DDR4 SO-DIMM slots, DDR4 2400, Max. 8GB supported
1 × SATA port
1 × M-SATA SSD port
1 × M.2 2280 SSD port
Integrated Intel UHD Graphics 450MHz
1 × DP port, 1 × HDMI port
4 ×Intel I226 2.5G Ethernet ports,
1 × RJ45 COM port
2 × USB2.0, 2 × USB3.0,
1 × HDMI (with audio output) + DP, 1 × power button,
1 × SIM card slot
DC 12V-4A, 5.5×2.5mm barrel jack

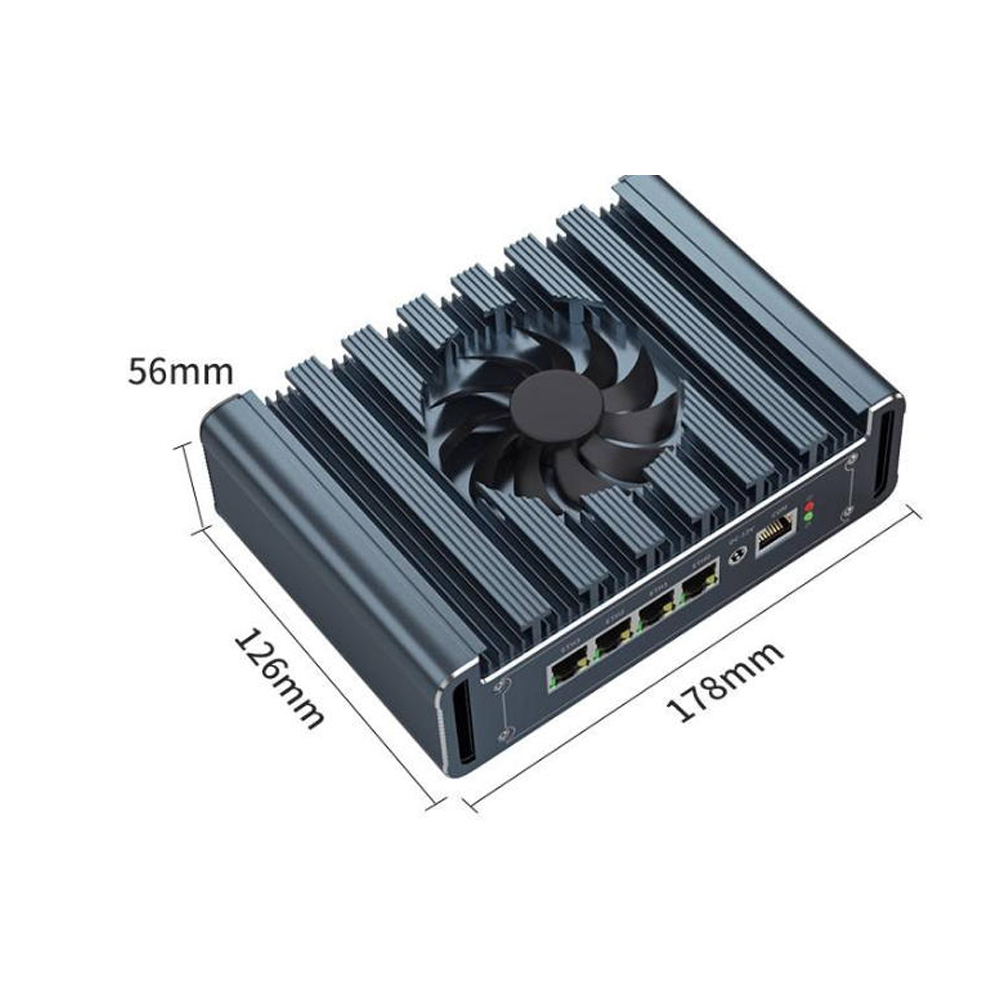

Dimension: 178x126x56(mm)
Weight: 1.75 kg (complete unit),1.15 kg (bare unit)
Package size: 33× 23 × 8 cm
Specifications
| Model No | VGS-BF1404003HDSF-J5005 |
| Chassis Color | Black |
| Material | aluminium alloy chassis |
| Installation | Desktop |
| Processor | Onboard Intel® Celeron J5005 Processor, FCBGA1090, Quad-Core Quad-Thread, 1.5GHz |
| Chipset | J5005 |
| BIOS | AMI EFI BIOS |
| Memory | 2 × DDR4 SO-DIMM slots, DDR4 2400, Max. 8GB supported |
| Storage |
1 × SATA port 1 × M-SATA SSD port 1 × M.2 2280 SSD port, PCIe 2.0 x1 |
| Graphics | Integrated Intel UHD Graphics 450MHz |
| Display Interfaces |
1 × DP port 1 × HDMI port |

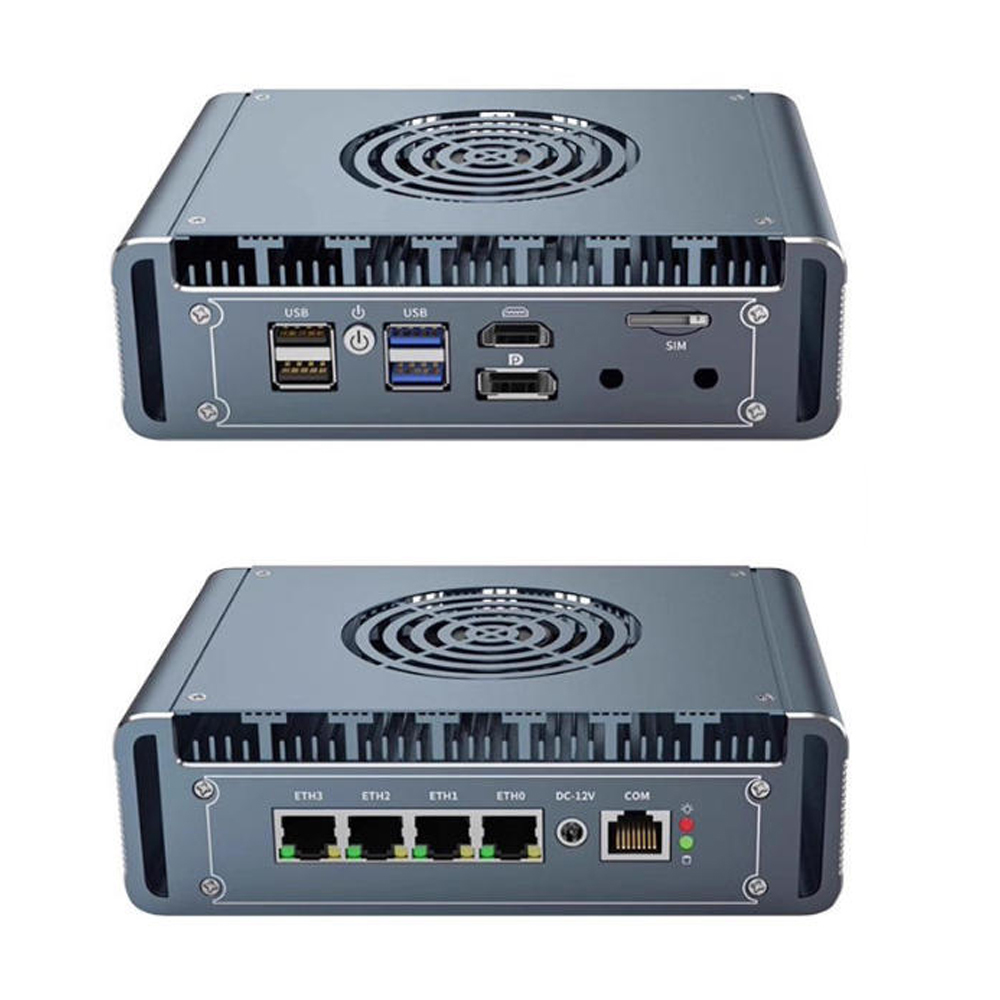

| Front I/O |
4 × 2.5G Ethernet ports 1 × RJ45 COM port 1 × DC power jack 1 × power/HDD LED indicator |
| Rear I/O |
2 × USB2.0 2 × USB3.0 1 × HDMI (with audio output) + DP 1 × power button 1 × SIM card slot |
| Expansion Slot | 1 × Mini PCI-E slot |
| Network | Onboard Intel I226 2.5G Ethernet controller, 4-port design |
| Features | Power-on on AC restore, scheduled power-on, Wake-on-LAN, PXE boot, Watchdog timer |
| Power Supply | DC 12V-4A, 5.5×2.5mm barrel jack |
| Certifications | CE, CCC, FCC, RoHS |
| Dimensions | 178x126x56(mm) |
| Operating Temperature |
0 ~ +50℃(with commercial HDD), -20℃~ +50℃(with industrial SSD), with air flow |
| Humidity | 5 ~ 90% relative humidity, non-condensing |
| Weight | 1.75 kg (complete unit),1.15 kg (bare unit) |
| Package Dimensions | 33 × 23 × 8 cm |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
