| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-BF1204006-5G-J41 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Galvanized Steel Sheet | Dimension: | 200*175*40 (MM) |
|---|---|---|---|
| Chassis Color: | Gray | CPU: | Celeron® J4125, Quad-Core |
| RAM: | 1*DDR4 | Gigabit LAN: | 4 *2.5G LAN |

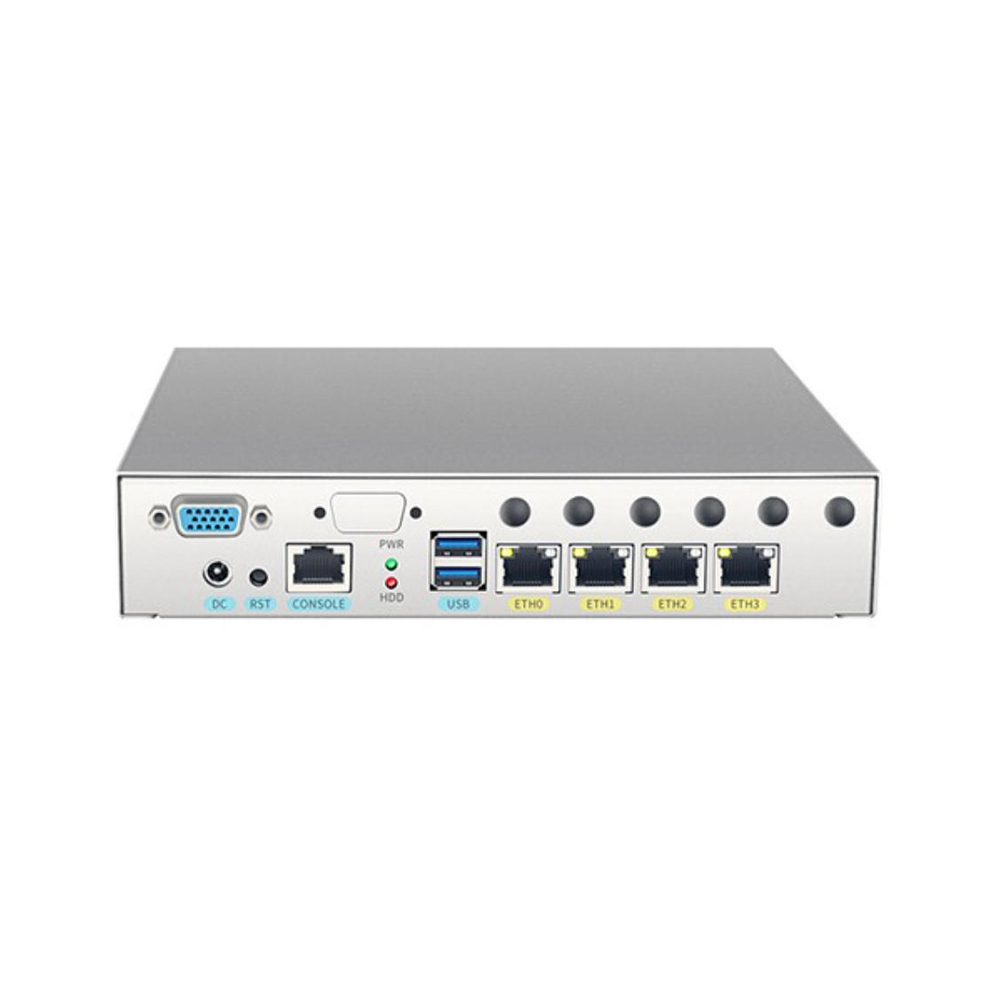

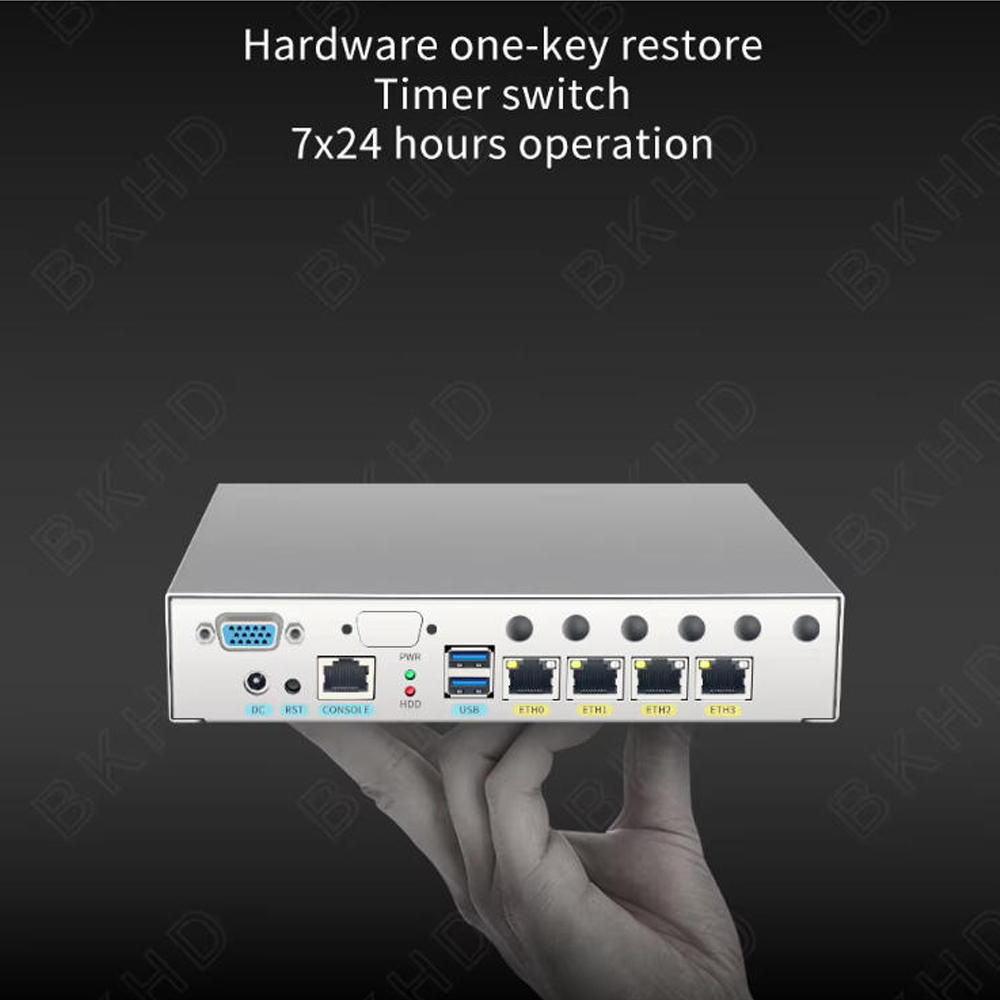

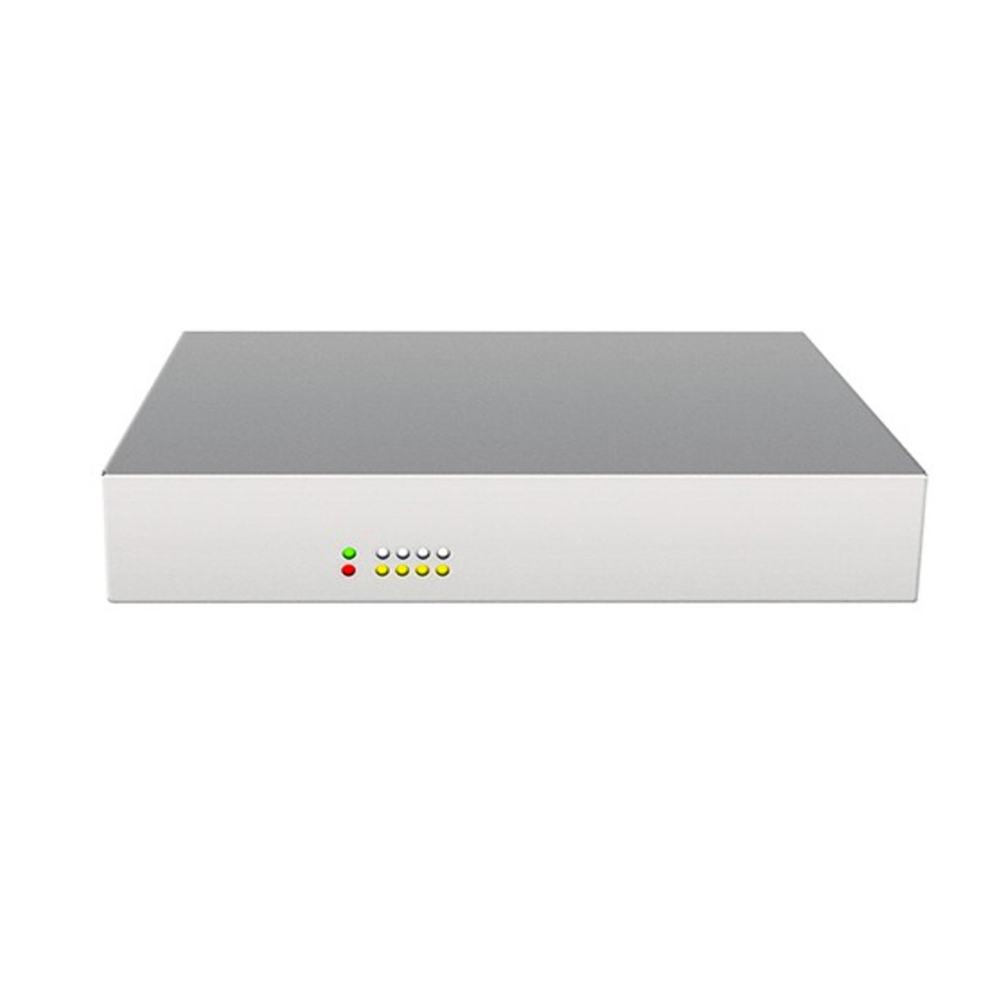

Intel® J4125 4 port 2.5G LAN Firewall appliance Mini industrial computer PFsense support 5G network
Key Features
Intel® Celeron® J4125, Quad-Core Quad-Thread, Base Frequency: 2.0GHz
1*DDR4 2400 MHz SO-DIMM Slot,up to 8GB
1*MSATA SSD Slot
1*SATA (Support 2.5 inch HDD/SSD)
1*M.2Slot(Support 5G,WIFI and 5G cannot work at the same time)
4* Intel® I225 2.5G Ethernet ports
2*USB3.0
1*CONSOLE
1*VGA port
DC12V-4A power supply
Weight: Gross Weight 1.5kg; Net Weight 1.1kg
Package: 33*23*8 (CM)
Specifications
| Model No | VGS-BF1204006-5G-J41 |
| CPU | Intel® Celeron® J4125, Quad-Core Quad-Thread, Base Frequency: 2.0GHz |
| Memory | 1*DDR4 2400 MHz SO-DIMM Slot,up to 8GB |
| Storage |
1*MSATA SSD Slot 1*SATA (Support 2.5 inch HDD/SSD) |
| Extended Bus | 1*Mini-PCIe Slot (Support half or full length WiFi or 4G module, WIFI and 4G cannot work at the same time) |
| 1*M.2Slot(Support 5G,WIFI and 5G cannot work at the same time) | |
| Front I/O interface | 4*2.5Gigabit Ethernet ports 1*Power Adapter port 2*USB3.0 1*CONSOLE 1*1*VGA port |
| Network Cards | Intel® I225 2.5G Adaptive Network interface, (Opt. I226) |
| Certificate | CE,CCC,FCC,ROHS |
| Power Supply | DC12V-4A 5.5*2.5 |
| Working Temperature |
-0~+50℃ (Commercial HDD); -20℃~+50℃ (Industrial SSD); Surface Air flow |
| Size | 200*175*40 (MM) |
| Environment Humidity | 5~90℃ Relative humidity, no condensation |
| Weight | Gross Weight 1.5kg; Net Weight 1.1kg |
| Package Size | 33*23*8 (CM) |
| Operate System | Support Pfsense ,Linux, iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
