| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-BF1204005-J41 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Galvanized Steel Sheet | Dimension: | 262mm*200mm*45mm |
|---|---|---|---|
| Chassis Color: | White | CPU: | Celeron® J4125, Quad-Core |
| RAM: | 1*DDR4 | Gigabit LAN: | 4 *2.5G LAN |

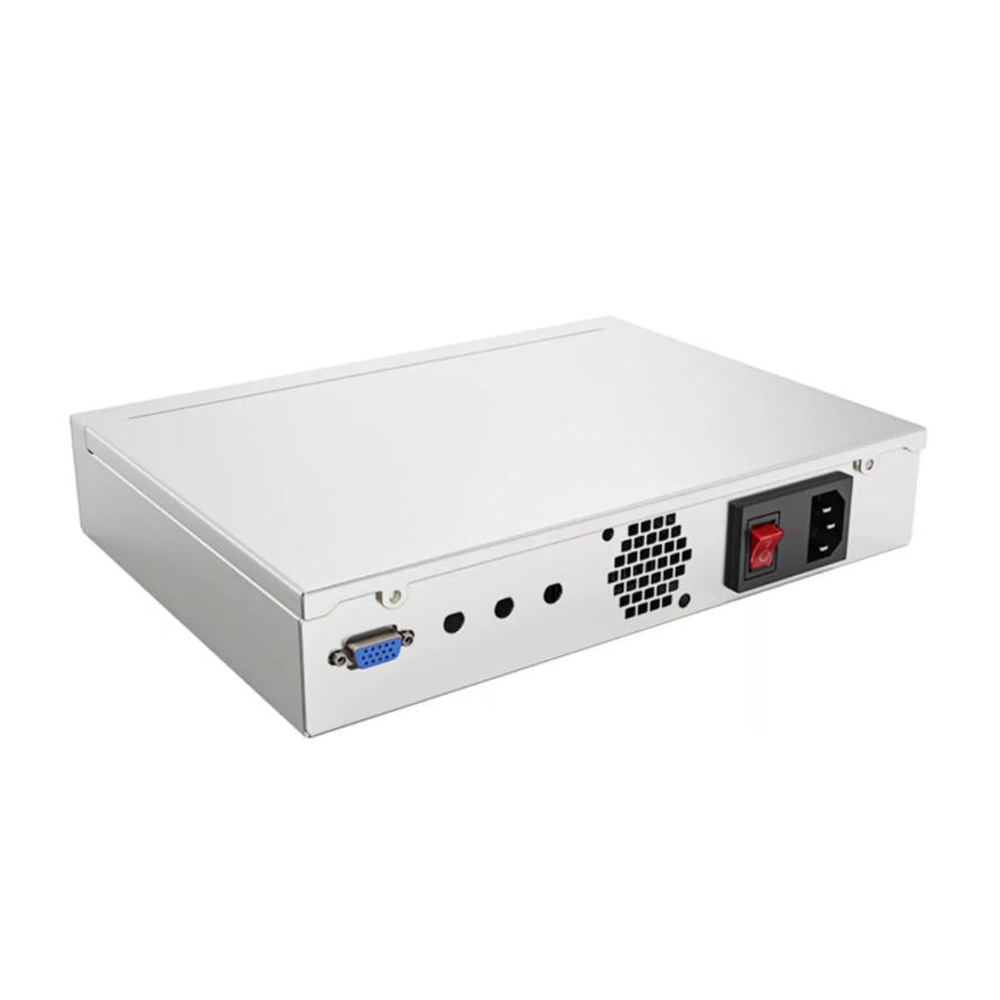

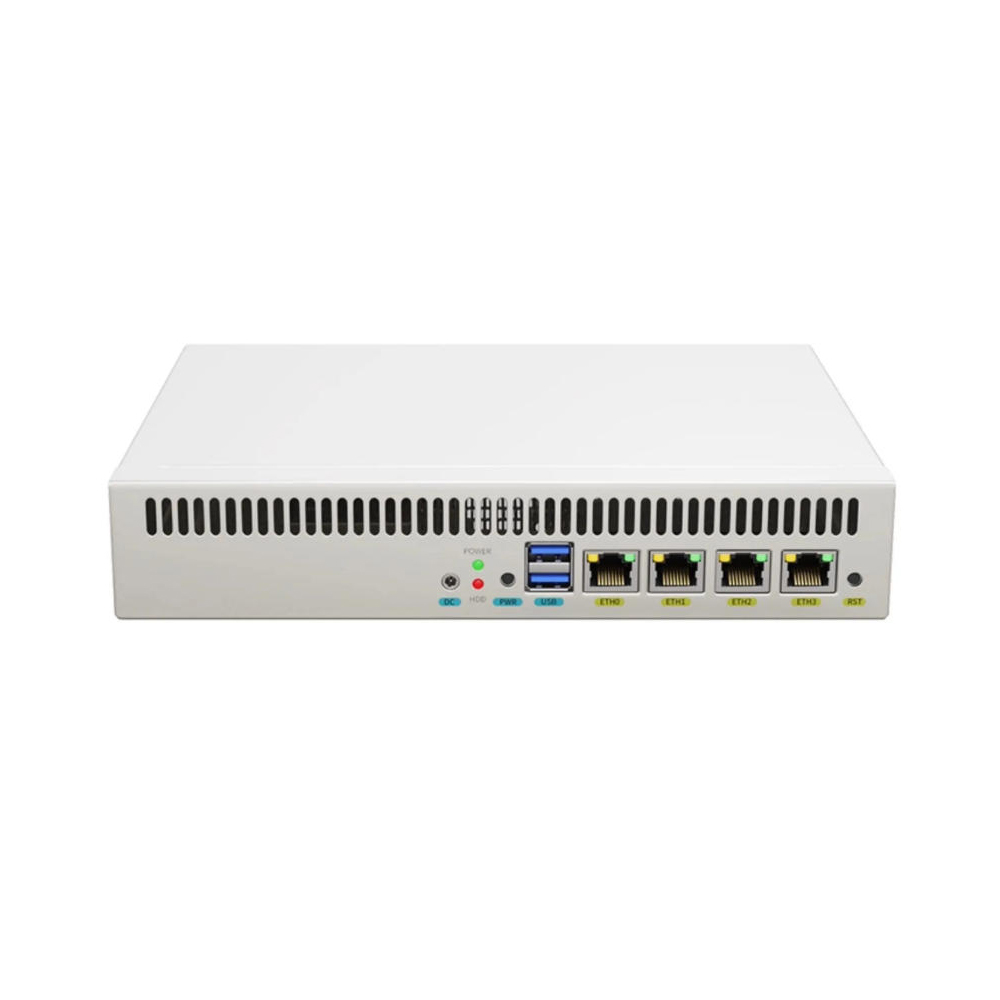

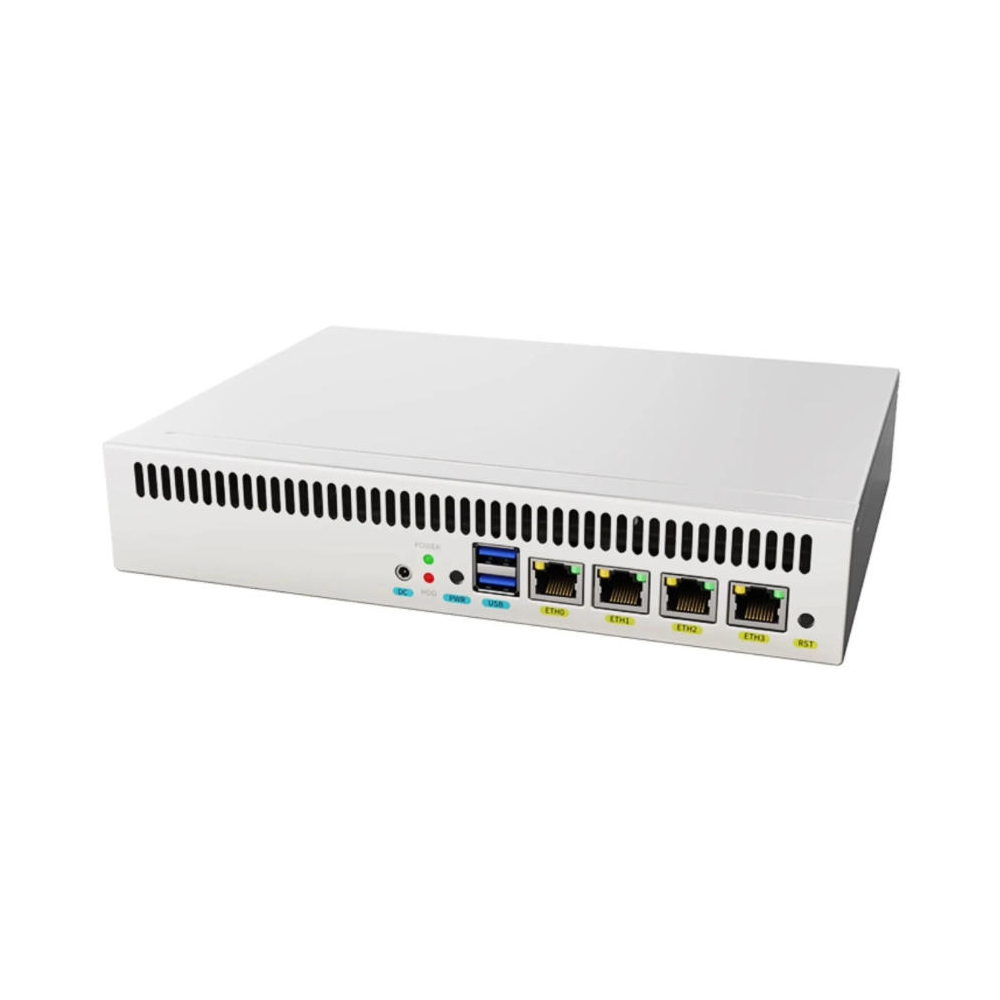

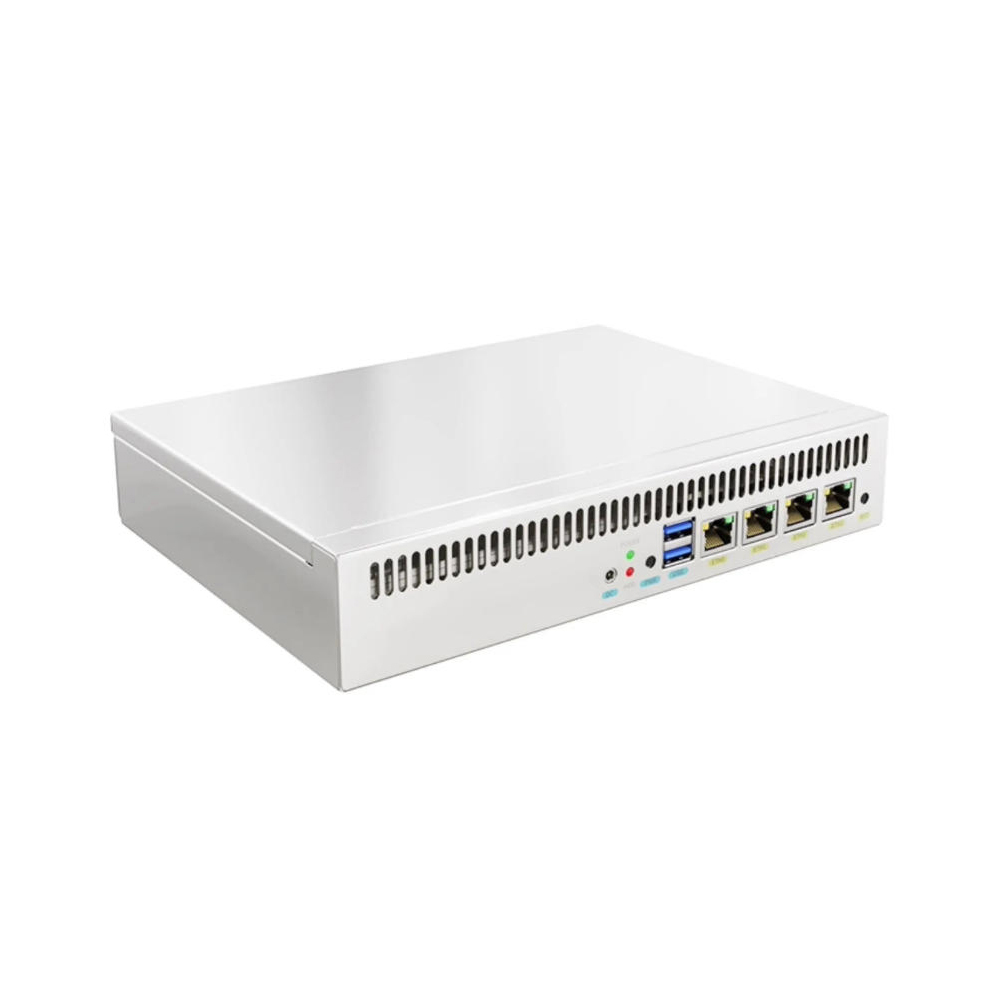

Desktop Celeron® J4125 4 *2.5G LAN Firewall computer Mini Firewall Appliance PFsense Soft Router
Key Features
Intel® Celeron® J4125, Quad-Core Quad-Thread, Base Frequency: 2.0GHz
1*DDR4 2400 MHz SODIMM slot, up to 8GB
1*mSATA SSD,
1*SATA 3.0 interface
Integrated Intel® HD Graphics 600
1*VGA / 1*HDMI
4*Intel® I225 2.5G LAN
2*USB3.0,
1*RJ45 COM
2*Mini PCI-E slots, supporting 4G/5G/WiFi modules
Dimension : 262mm*200mm*45mm
Weight: 2.2kg (complete unit), 1.9kg (barebone unit)
Package size: 330mm*230mm*80mm
High quality galvanized steel sheet chassis
Specifications
| Model No | VGS-BF1204005-J41 |
| Chassis Color | Silver |
| Chassis Material | High quality galvanized steel sheet |
| Installation | Desktop |
| Processor | Intel® Celeron® J4125, Quad-Core Quad-Thread, Base Frequency: 2.0GHz |
| Chipset | J4125 |
| BIOS | AMI EFI BIOS |
| Memory | 1*DDR4 2400 MHz SODIMM slot, up to 8GB |
| Storage |
1*mSATA SSD, 1*SATA 3.0 interface |
| Graphics | Integrated Intel® HD Graphics 600 |
| Display Interfaces | 1*VGA / 1*HDMI |

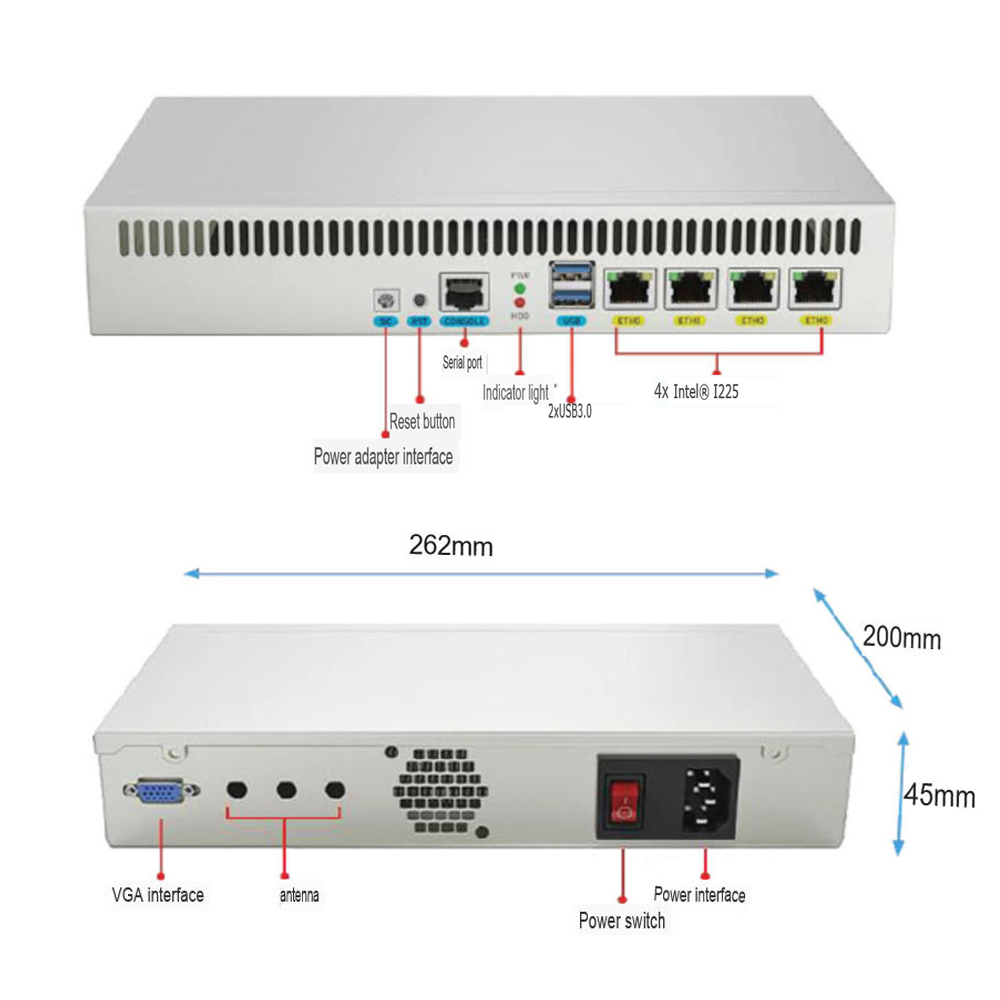

| Front I/O |
4*Intel® I225 2.5G LAN 2*USB3.0, 1*RJ45 COM 1*DC Power Jack |
| Rear I/O |
1*VGA, 1*AC Power Socket |
| Expansion Slots | 2*Mini PCI-E slots, supporting 4G/5G/WiFi modules |
| Network Interface | 4*Intel® I225 2.5G Gigabit Ethernet (I226 optional) |
| Other Features | Timed power-on, Wake-on-LAN, PXE boot, Watchdog timer |
| Power Supply |
Industrial-grade Mean Well LRS-50-12, Input: 100-240V~1.0A, Output: 12V 4.2A |
| Operating Temperature | 0~+50℃(commercial HDD), -20℃~+50℃(industrial SSD), with surface airflow |
| Relative Humidity | 5~90% RH, non-condensing |
| Dimension | 262mm*200mm*45mm |
| Weight | 2.2kg (complete unit), 1.9kg (barebone unit) |
| Package Dimensions | 330mm*230mm*80mm |
| Operate System | Support Pfsense ,Linux, Pfsense,iKuai, LEDE, Openwrt, Panabit, Smart6, Win 7/8/10 etc. |
