| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-F10206041J-H770 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Aluminium Sheet Chassis | Dimension: | 430mm*470mm*45mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Support Intel® 12/13/14th Generation Core™ I3/i5/i7 |
| Memory: | 4*DDR5 LO-DIMM,MAX Support 128GB | Gigabit LAN: | 6* Intel® I226V 2.5G LAN 4*XL710 10G Optical Ports |

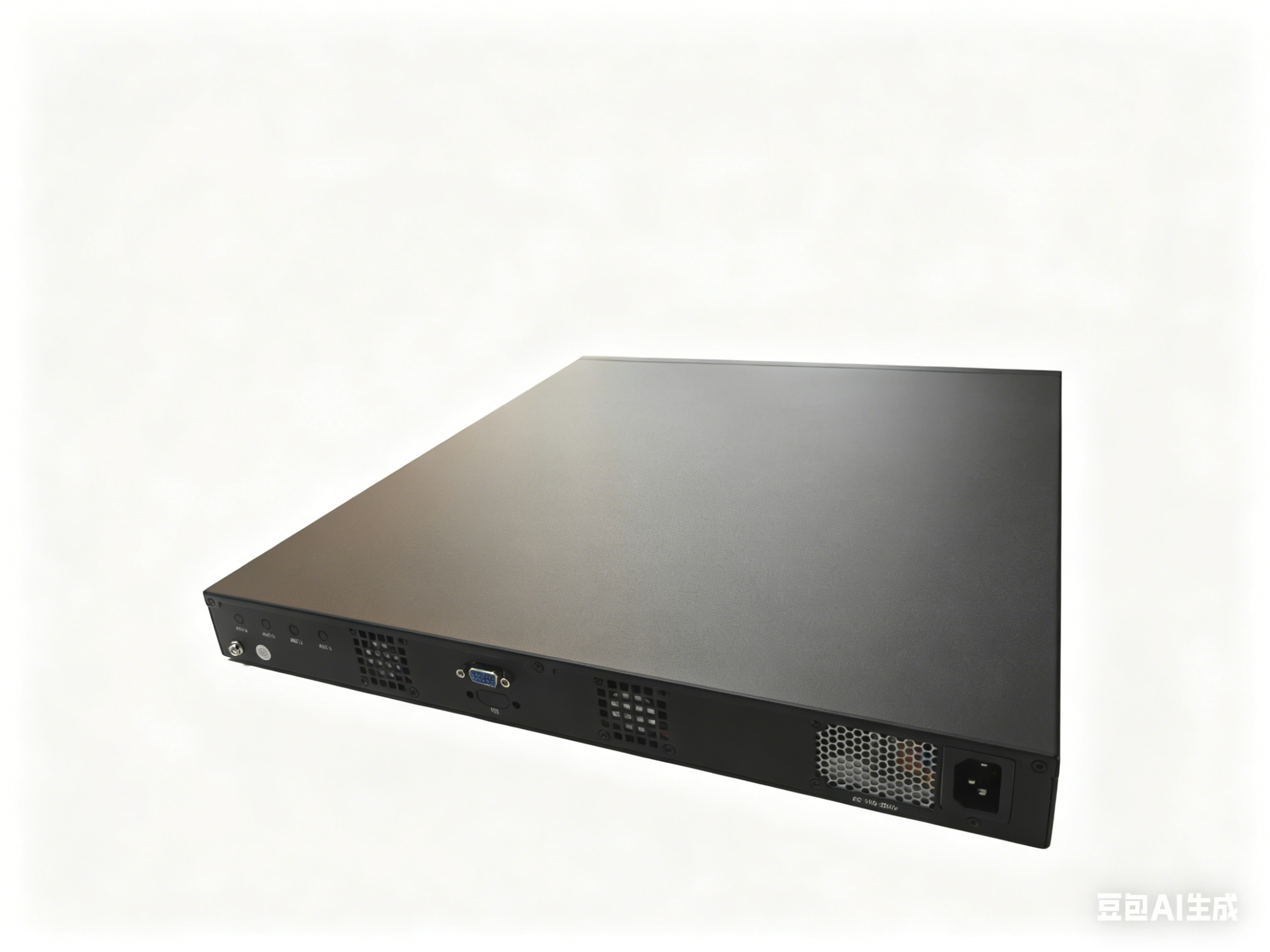

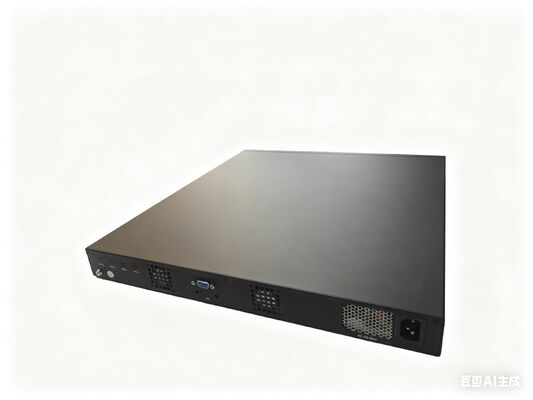

1U rackmount Intel® H770 6*2.5G LAN 4*10G SFP fiber optical Firewall Appliance support pFsense
Key Features
Support Intel® 12/13/14th Generation Core™ i3/i5/i7
Support 1*VGA/HDMI display output
4*DDR5 LO-DIMM,MAX support 128GB
Support 3*SATA3.0+1*SAS(4*SATA)+1*M.2 NVME/SATA
6*Intel I226V 2.5G electrical ports
4*XL710 10G optical ports
1* CISCO standard serial port console
2* USB3.0
1*M.2 support 4G/5G
1*M.2 support WIFI6
ATX PSU AC 110V ~ 240V
Dimension : 430mm*470mm*45mm
Paper box : 550 mm *560 mm *145mm
High quality galvanized steel sheet chassis
1U standard rack mounting method
Specifications
| Model No. | VGS-F10206041J-H770 | |
| Chassis | Color | Black |
| Dimension | 430mm*470mm*45mm | |
| Structure | 1U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 1U standard rack mounting method | |
| Platform | Processor | Support Intel® 12/13/14th Generation Core™ i3/i5/i7, Pentium®, Celeron® CPU,FCLGA1700 |
| Chipset | Adopt Intel® H770/H610/H660/B660 | |
| Graphics |
Integrated Intel® HD Graphics support 1*VGA/HDMI display output |
|
| Storage | Memory | 4*DDR5 LO-DIMM,MAX support 128GB |
| HDD | 3*SATA3.0+1*SAS(4*SATA) | |
| SSD | 1*M.2 NVME/SATA | |
| Audio | Audio | N/A |
| Expansion | WiFi /4G /5G |
1*M.2 support 4G/5G,1*SIM 1*M.2 support WIFI6 |

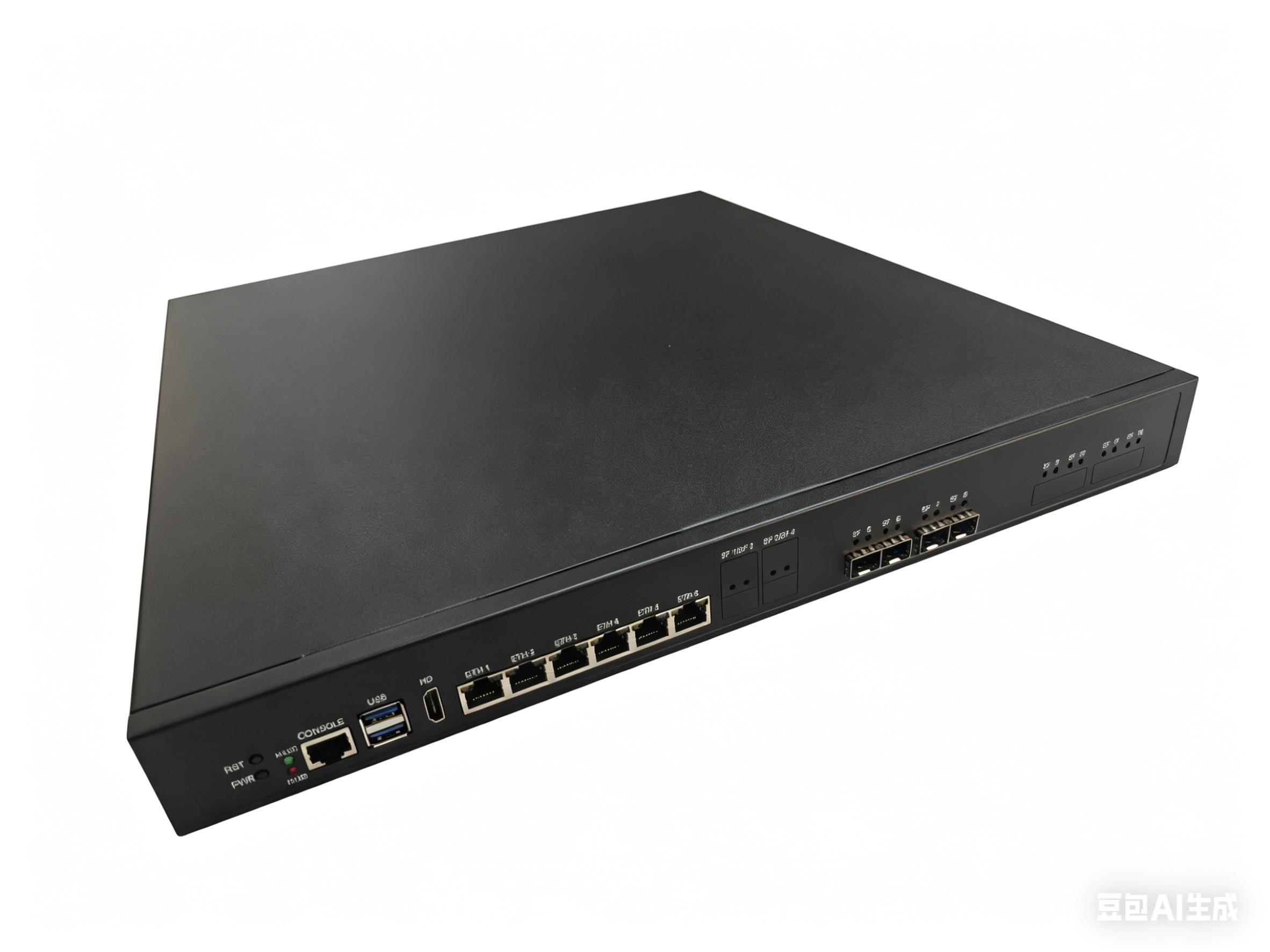

| Front I /O | Serial Port | 1* CISCO standard serial port console |
| USB | 2* USB3.0 | |
| LAN |
6*Intel I226V 2.5G electrical ports 4*XL710 10G optical ports Support bypass 2x segment, LAN1/2 & 3/4 (Optional) |
|
| SFP | Support 4*10G SFP(Optional)+2/4*10GSFP(Optional)+2/4*10G SFP(Optional) | |
| LED | 1* HDD LED, 1* Power LED | |

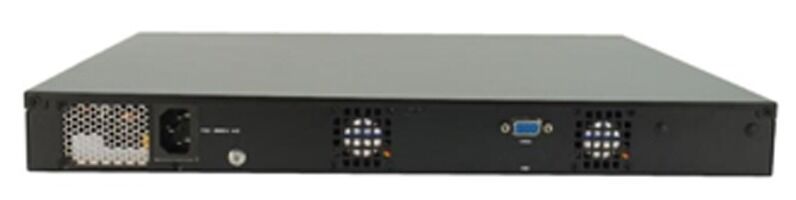

| Back I/O | Display | 1*VGA/1*HDMI(default VGA) |
| Power Interface | 1* ATX Power Interface | |
| Power Supply | Input |
ATX PSU AC 110V ~ 240V |
| Reliability | Operating Temp. | -10℃~60℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 10/11, Linux, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos, Pfsense, iKuai, WayOS etc. | |
