| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | VGS-F10406003L-5305U |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 178mm*126mm*56mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron 5305U Dual Core 2.3G Hz |
| RAM: | 2 *DDR4 | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial |
Celeron 5305U 6 Gigabit LAN firewall PC appliance soft router support pFsense Industrial computer fanless mini pc
Key Features
Integrated Intel® Celeron® 5305U dual core 2 thread 2.3G hz processor
Intel® UHD Graphics
Support Dual slot DDR4 memory up to 64GB
Supports 1*2.5 inch hard drive
Support 1*MSATA SSD expansion
1* CISCO standard RS232 serial
6*Intel® I211 Gigabit Gigabit Lan
4*USB3.0
1* H-D-M-I display output
DC 12V 4A power supply
Dimension: 178mm*126mm*56mm
Package Size 330mmx230mmx80mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | VGS-F10406003L-5305U | |
| Chassis | Color | Black |
| Dimension | 178mm*126mm*56mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor | Integrated Intel® Celeron® 5305U dual core 2 thread 2.3G hz processor |
| Chipset | Comet Lake | |
| BIOS | AMI EFI BIOS | |
| Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors, support 1*H-D-M-I display output |
|
| Storage | Memory | Support Dual slot DDR4 memory 2400MHz up to 64GB |
| HDD | 1* SATA supports 1* 2.5 inch hard drive | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | 6*Intel® I211 Gigabit Ethe (6*RJ45 GLAN) |
| WiFi | N/A | |

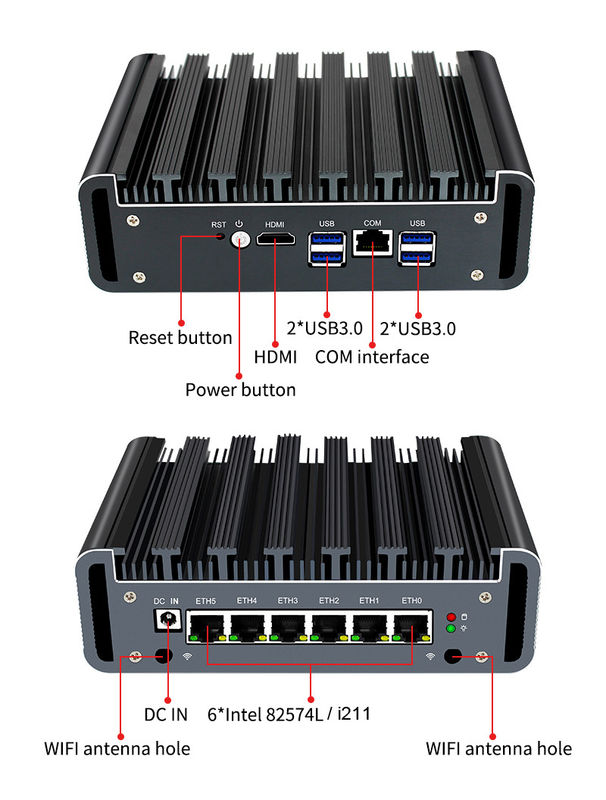

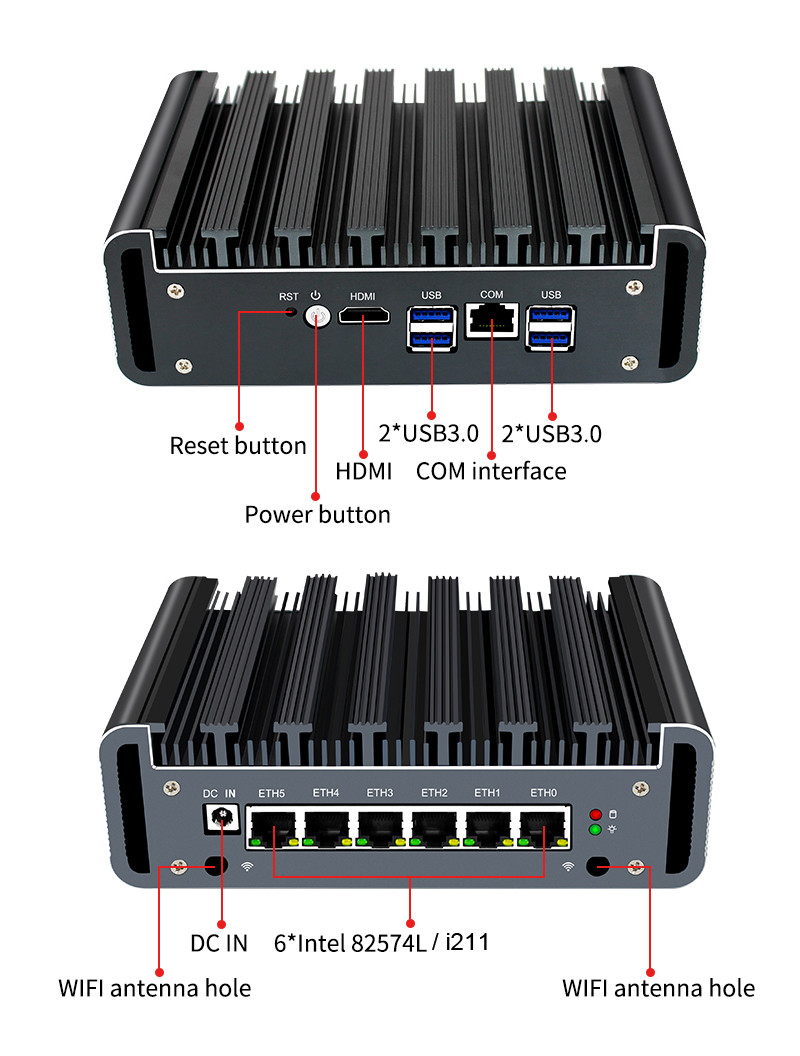

| Interface | Front I / O | 1*Reset button |
| 1*power button | ||
| 1* CISCO standard RS232 serial | ||
| 4*USB3.0 | ||
| 1* H-D-M-I display output | ||

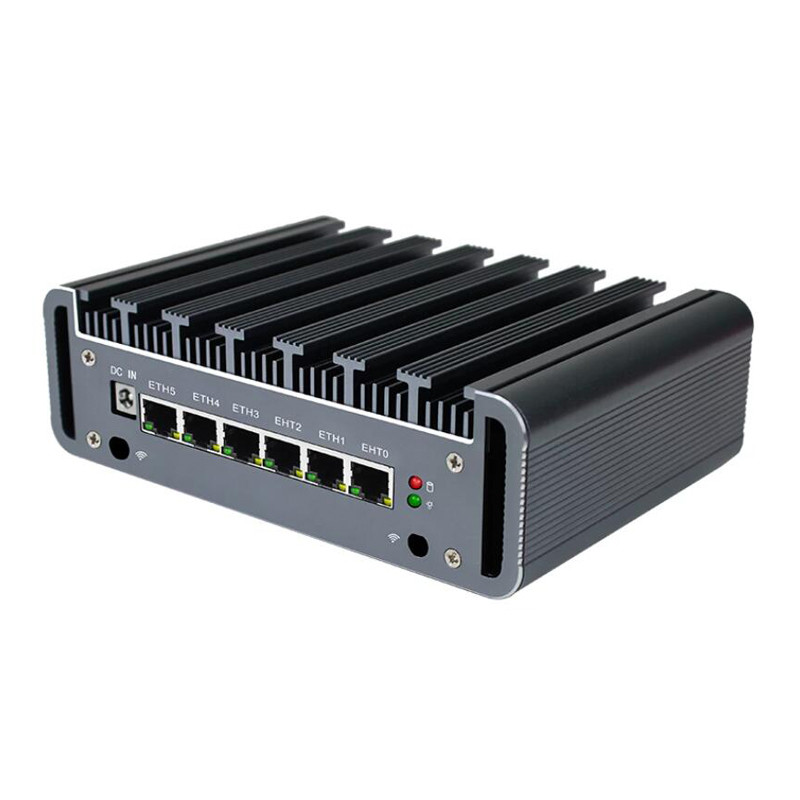

| Back I / O | 1*Power adapter interface | |
| 6*RJ45 Gigabit Lan | ||
| Expansion | Mini PCIe | 1*Mini PCIe Half-height for WiFi/Bluetooth |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
About shipping
1.Leading Time:1 ~ 3 Days for one sample, 4~6 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
