| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | HF13102003VH-BT-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 128mm*128mm*41mm(L*W*H) |
|---|---|---|---|
| Chassis Color: | Gray | CPU: | Intel® Bay Trail Quad Cores J1900 Processor |
| RAM: | 1*DDR3L Max Up To 8GB | Gigabit LAN: | 2 Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | Display: | 1*VGA , 1* HDMI |
| Power Supply: | DC12V /5A |

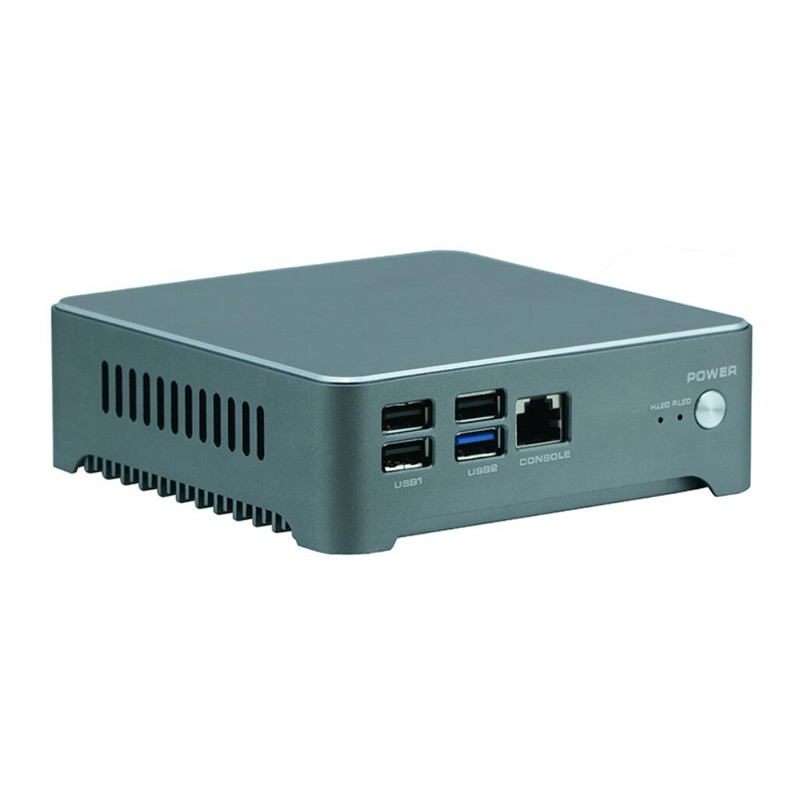

Dual gigabit LAN Industrial pFsense Firewall Fanless Mini Pc Quad Cores J1900 With RJ45 RS232
Quick Details
Specifications
| CPU | Processor | Integrated Intel® Celeron J1900 quad core 2.0GHz processor |
| Chipset | Intel® Bay trail SOC chipset platform | |
| Graphics | HD Graphics |
Integrated Intel® HD Graphics support VGA, HDMI synchronous/asynchronous display. |
| Resolution | VGA: max support 2560 x 1600 @ 60HZ | |
| HDMI: max support 1920 x 1080 @ 60HZ | ||
| RAM | DDR3L | 1* SODIMM 1600/1333MHz DDR3L/1.35V memory, max up to 8GB |
| Storage | SATA | 1* SATA2.0 HDD port, transfer rate up to 3Gbps |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Sound Card | Integrated ALC662 6 channels Hi-Fi audio controller, support 1*MIC, 1*Line_out |
| Network | Ethernet | 2*RTL8111F Gigabit LAN, support Wake On LAN /PXE |
| WiFi | Provide 1xMini-PCIE slot, support WiFi, 3G module | |
| Front I/O | Serial Port | 1*CISCO standard RS232 |
| USB | 3* USB2.0, 1*USB3.0 | |
| Power Switch | 1* Power switch | |
| LED indicator | 1*HDD LED, 1*Power LED | |

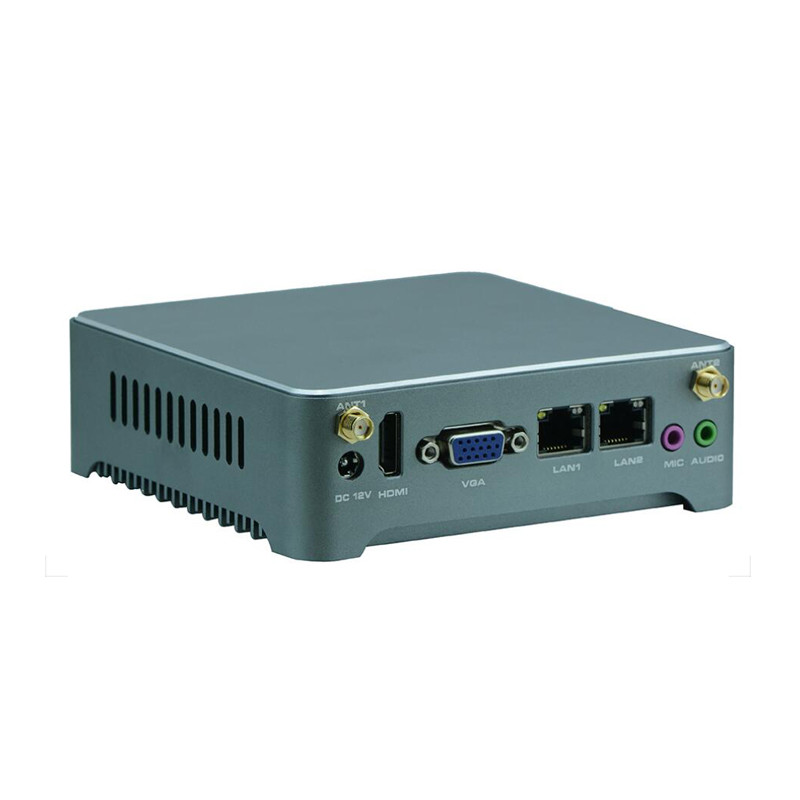

| Rear I/O | LAN | 2*RJ45 Gigabit LAN port |
| Display | 1*VGA, 1*HDMI | |
| Power | 1*12V DC IN Jack | |
| Antenna | 2*WiFi/3G SMA antenna (Optional) | |
| Audio | 1*Line-out, 1*MIC | |
| Power | Power Adaptor | 12V/5A adaptor |
| Reliability | Operating Temp. | -10℃～60℃ |
| Storage Temp. | -20℃～70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operating System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
| Chassis | Color | Iron gray |
| Dimension | 128mm*128mm*41mm(L*W*H) | |
| Structure | Full aluminum fanless cooling structure | |
| Installation | Desktop type or mounted installation | |
FAQ
Q: How long would the warranty period be?
A: 1 year warranty. It can be prolonged with extra fee.
Q: Is logo customization available?
A: Laser print is free.
Q: What is the minimum order quantity (MOQ)?
A: 1 piece.
Q: Which term for after sales?
A: Return and replacement
About shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 60 days
