Chassis: | Aluminium Chassis | Dimension: | 178.3*125.7*55mm |
---|---|---|---|
Chassis Color: | Silver | CPU: | Intel® Core 7th Gen Kaby Lake-U I3-7100U I5-7200U I7-7500U Dual Core Processor |
RAM: | 2 *DDR4 | Gigabit LAN: | 6* Gigabit LAN |
COM Port: | 1* CISCO Standard RS232 Serial | ||
Highlight: | Firewall PC 6 Gigabit LAN,Firewall PC 3865U,dual core mini pc PFsense |

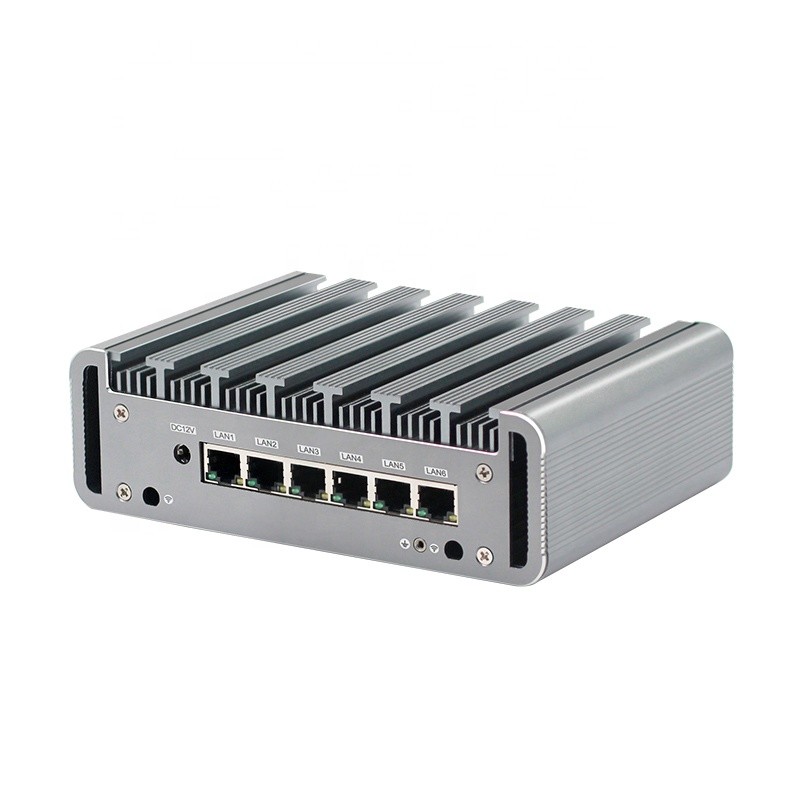

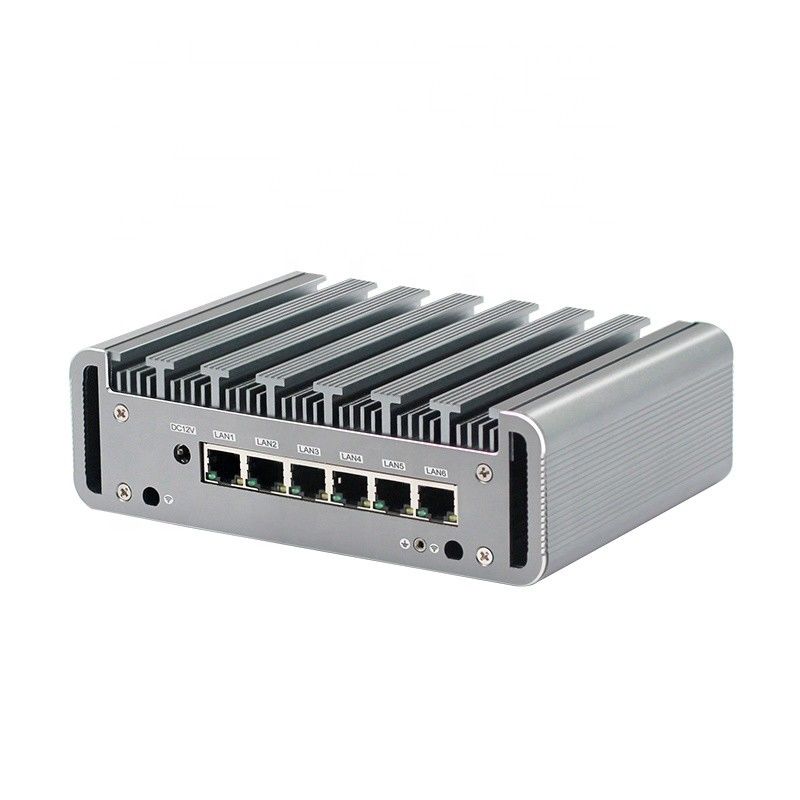

Celeron® dual core 3865U 6 Gigabit LAN firewall appliance fanless mini PC support pFsense Mikrotik
Dual core Celeron® 3865U / 3965U 6 Gigabit LAN firewall appliance fanless mini PC support pFsense Mikrotik
Key Features
Integrated Intel® Celeron® Processor Kaby Lake 3865U dual core 2 threads 1.8Gzh processor
Dual channel DDR4 2133Mhz;
2 *DDR4 SODIMM 260 Socket
1* SATAIII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI
4*USB3.0
1*RJ45 COM
6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%
Dimension: 178.3*125.7*55mm
Aluminium chassis
Specifications
Chassis | Color | Gray | |
Dimension | 178.3*125.7*55mm | ||
Material | High-quality pure aluminum mini pc case | ||
Platform | Processor | Integrated Intel® Celeron® Processor Kaby Lake 3865U dual core 2 threads 1.8Gzh processor | |
Chipset | Intel® Kaby Lake Series SOC | ||
Video | Graphics |
Intel HD Graphics 610 Maximum resolution support (HDMI1.4) 4096*2304@24HZ Support 4K display |
|
Memory | Technology framework | Dual channel DDR4 2133Mhz; | |
RAM socket | 2 *DDR4 SODIMM 260 Socket | ||
Storage | SATA | 1* SATAIII ports,Maximum transmission rate to 6gb/s | |
M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) | ||
Network | Ethernet | 6 Intel I211AT or Intel I210 (choose one) | |
WiFi | Support | ||
Input/Output Interface | Ports |

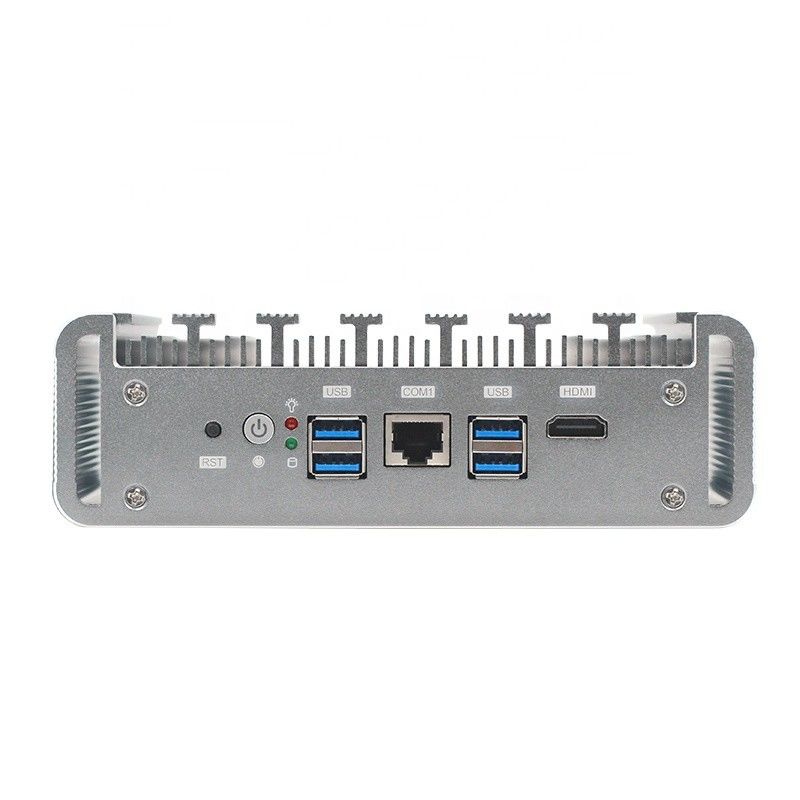

6*LAN 1*HDMI 1*DC 4*USB3.0 2*WIFI Antenna interface, 1* switch button 1* Reset button 1* Hard disk indicator, 1* Power Indicator |
|
Expansion | Mini PCIe | 1 Mini-PCIe slot for PCIE signal and USB signal devices | |
Cooling | Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment) | ||
Power Supply | Power type | Single input DC power,DC12-19V,+/-5% | |
WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ | |
storage temperature | -40℃ ~ +85℃ | ||
Working humidity | 0% ~ 90% relative humidity, no condensation | ||
Storage humidity | 0% ~ 90% relative humidity, no condensation | ||
Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Warranty 1 year
