| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10206003L-8TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 177mm*121mm*54mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Intel®8th Kaby Lake R-U I3-8130U / I5-8250U / I7-8550U Processor |
| RAM: | 2 *DDR4 | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | I7-8550U Firewall PC,Industrial Firewall PC,Industrial Computer Fanless 6LAN |
||
Notice:
When you inquiry , you can choose the following Model
BF10206003L-8TH-I3 Integrated Intel® Kaby Lake R i3-8130U dual cores 4 threads 2.2~3.4GHz Processor, 4 MB Intel® Smart Cache
BF10206003L-8TH-I5 Integrated Intel® Kaby Lake R i5-8250U quad cores 8 threads1.6~3.4GHz Processor, 6 MB Intel® Smart Cache
BF10206003L-8TH-I7 Integrated Intel® Kaby Lake R i7-8550U quad cores 8 threads1.8~4.0GHz Processor, 8 MB Intel® Smart Cache
Quad core 8th Gen i5-8250U / i7-8550U 6 Gigabit LAN Firewall mini PC Industrial Computer PFsense
Key Features
Integrated Intel®8th Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U processor
Integrated Intel® UHD Graphics 620
Support Dual slot DDR4 memory
Supports 1*2.5 inch hard drive
Support 1*MSATA SSD expansion
1* CISCO standard RS232 serial
6*RJ45 Gigabit Lan
4*USB3.0
1* H-D-M-I display output
DC 12V 4A power supply

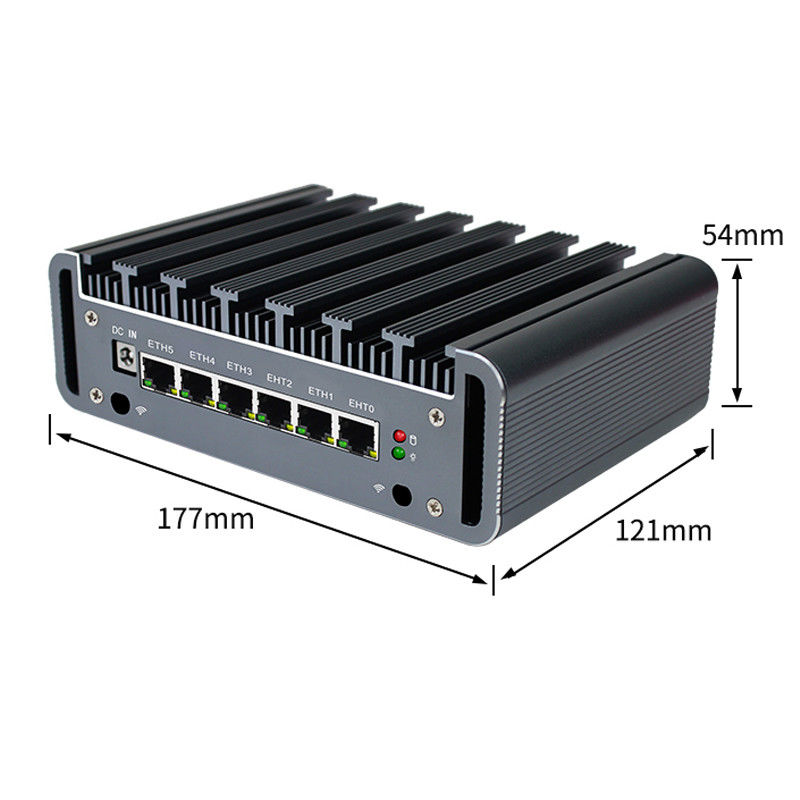

Dimension: 177mm*121mm*54mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF10206003L-8TH-I7 | |
| Chassis | Color | Black |
| Dimension | 177mm*121mm*54mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor |
Integrated Intel®8th Kaby Lake R-U i3-8130U / i5-8250U / i7-8550U processor |
| Chipset | Kaby Lake R-U | |
| Graphics |
Integrated Intel® UHD Graphics 620 support 1*H-D-M-I display output |
|
| Storage | Memory | Support Dual slot DDR4 memory 2400MHz |
| HDD | supports 1* 2.5 inch hard drive | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel 82574L chip 6*RJ45 GLAN |
| WiFi | N/A | |

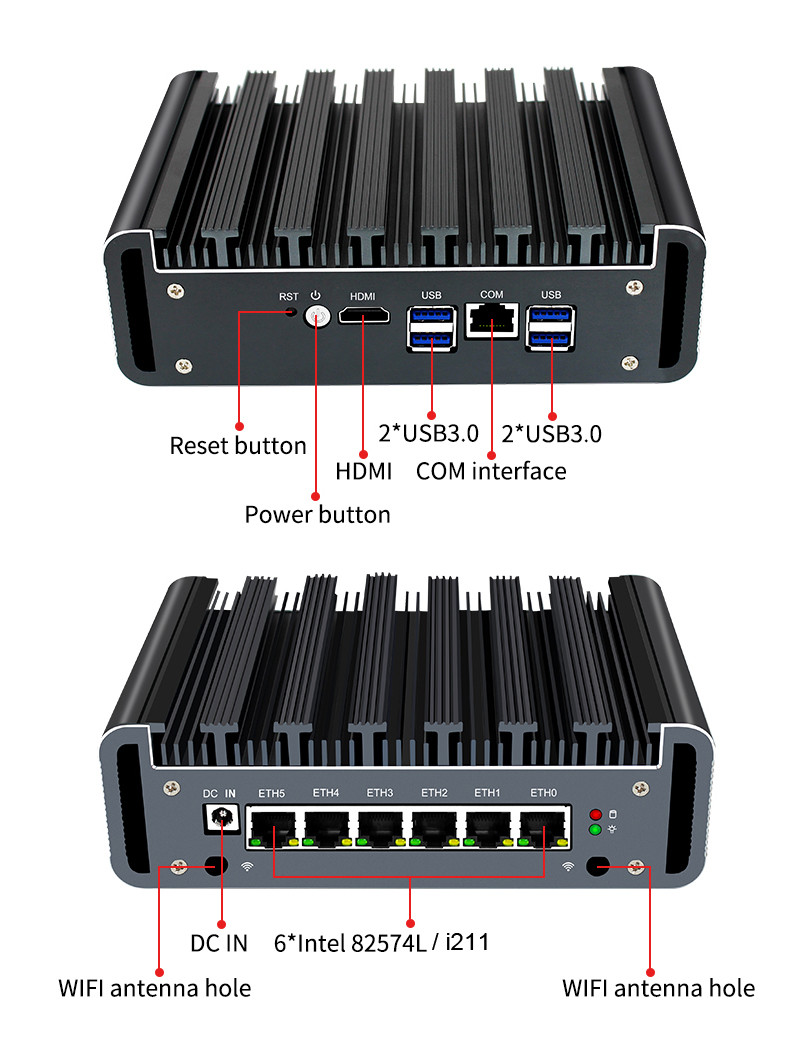

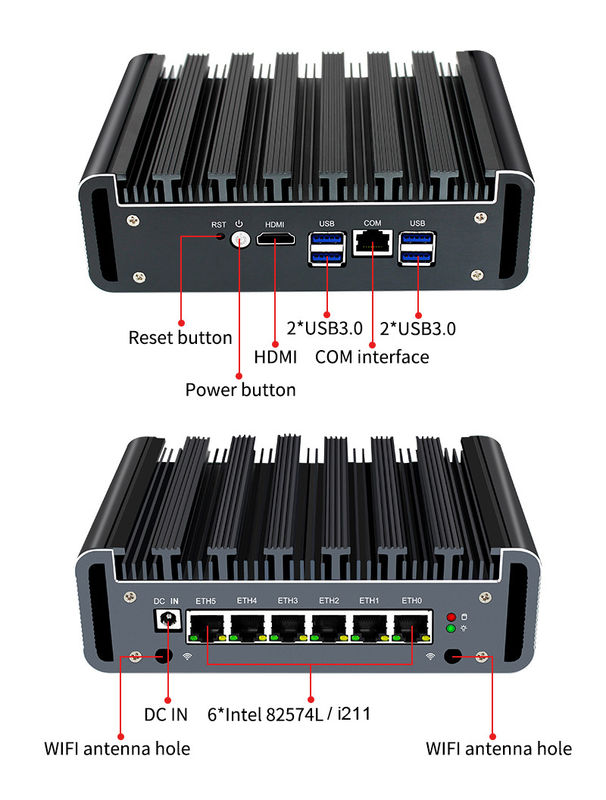

| Interface | Front I / O | 1*Reset button |
| 1*power button | ||
| 1* CISCO standard RS232 serial | ||
| 4*USB3.0 | ||
| 1* H-D-M-I display output | ||
| Back I / O | 1*Power adapter interface | |
| 6*RJ45 Gigabit Lan | ||
| Expansion | Mini PCIe | Support 1 mini PCIE channel (WIFI / Bluetooth for optional) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
