| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF10406003-6TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 178.3*125.7*55mm |
|---|---|---|---|
| Chassis Color: | Silver | CPU: | Dual Core Intel® I3-6100U / I5-6200U / I7-6500U |
| RAM: | 2 *DDR4 | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | 6LAN Firewall Mini Pc,I3-6100U Firewall Mini Pc,I7-6500U pfsense mini pc |
||
6th Gen dual core Intel® i3-6100U i5-6200U i7-6500U 6 GLAN firewall mini pc support pFsense
Notice:
When you inquiry , you can choose the following Model
PF10406003-6TH-I3 Integrated Skylake i3-6100U dual cores 4 threads 2.3GHz Processor
PF10406003-6TH-I5 Integrated Skylake i5-6200U dual cores 4 threads 2.3~2.8GHz Processor
PF10406003-6TH-I7 Integrated Skylake i7-6500U dual cores 4 threads 2.5~3.1GHz Processor
6th Generation Intel® i3-6100U / i5-6200U / i7-6500U 6 GLAN firewall mini pc support pFsense industrial mini computer soft router
Key Features
Integrated Intel® CoreTM 6th generation Skylake-U i3-6100U / i5-6200U / i7-6500U
Dual channel DDR4 2133Mhz;
2 *DDR4 SODIMM 260 Socket
1* SATAIII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI
4*USB3.0
1*RJ45 COM
6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%
Dimension: 178.3*125.7*55mm
Aluminium chassis
Specifications
| Chassis | Color | Gray |
| Dimension | 178.3*125.7*55mm | |
| Material | High-quality pure aluminum mini pc case | |
| Platform | Processor | Integrated Intel® CoreTM 6th generation Skylake-U i3-6100U / i5-6200U / i7-6500U |
| Chipset | Intel® Skylake--U Series SOC | |
| Video | Graphics |
Intel HD Graphics 520 Maximum resolution support (HDMI1.4) 4096*2304@30HZ Support 4K display |
| Memory | Technology framework | Dual channel DDR4 2133Mhz; |
| RAM socket | 2 *DDR4 SODIMM 260 Socket | |
| Storage | SATA | 1* SATAIII ports,Maximum transmission rate to 6gb/s |
| M-SATA | 1 Mini-PCIe M-SATA Scoket, supporting SANDISK protocol, maximum transfer rate 6gb/s (optional M-SATA and SATA1 interfaces) | |
| Network | Ethernet | 6 Intel I211AT or Intel I210 (choose one) |
| WiFi | Support | |
| Input/Output Interface | Ports |

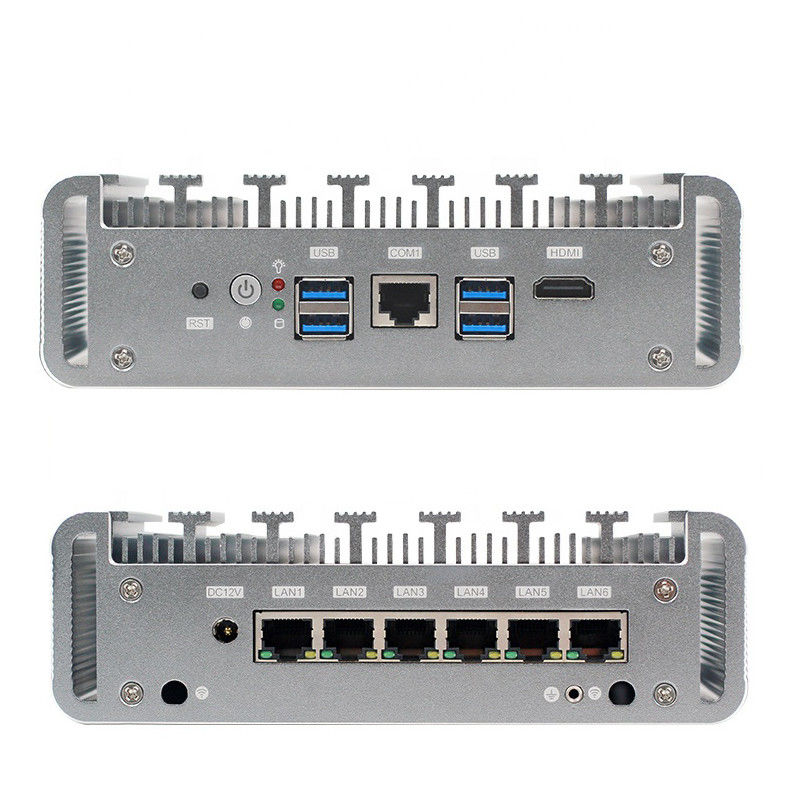

6*LAN 1*HDMI 1*DC 4*USB3.0 2*WIFI Antenna interface, 1* switch button 1* Reset button 1* Hard disk indicator, 1* Power Indicator |
| Expansion | Mini PCIe | 1 Mini-PCIe slot for PCIE signal and USB signal devices |
| Cooling | Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment) | |
| Power Supply | Power type | Single input DC power,DC12-19V,+/-5% |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ |
| storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90% relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% relative humidity, no condensation | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
