| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF11106003-BT-E3845 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 134*126*40.6 Mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Integrated Intel® Bay Trail J1800 / J1900 / N2806 /E3845 |
| RAM: | 1*DDR3L | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | Firewall Fanless Mini Pc Pfsense,Fanless Mini Pc Pfsense 6 LAN,J1900 mini quad core pc |
||

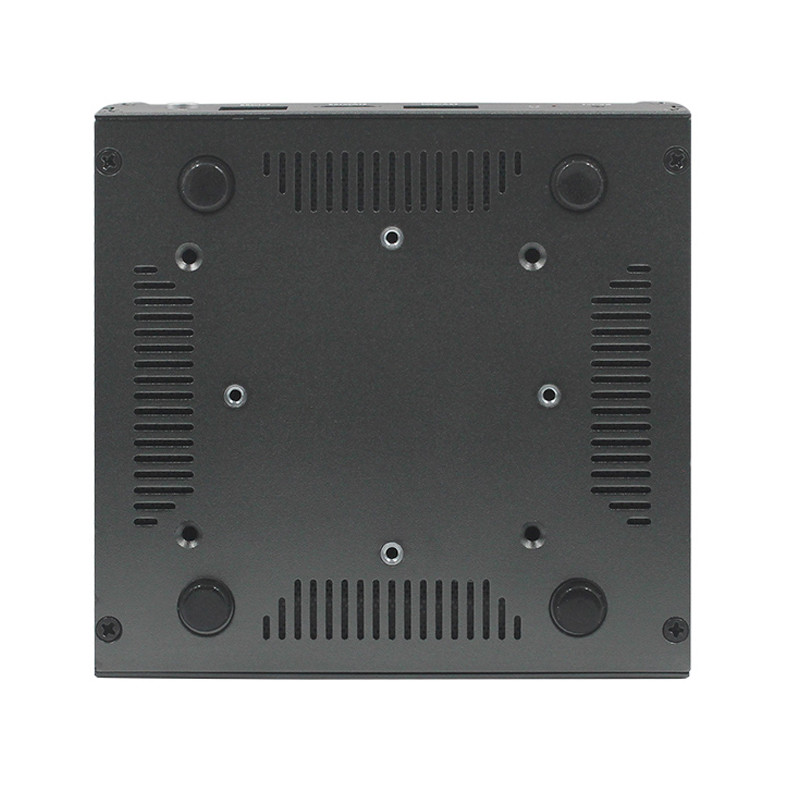

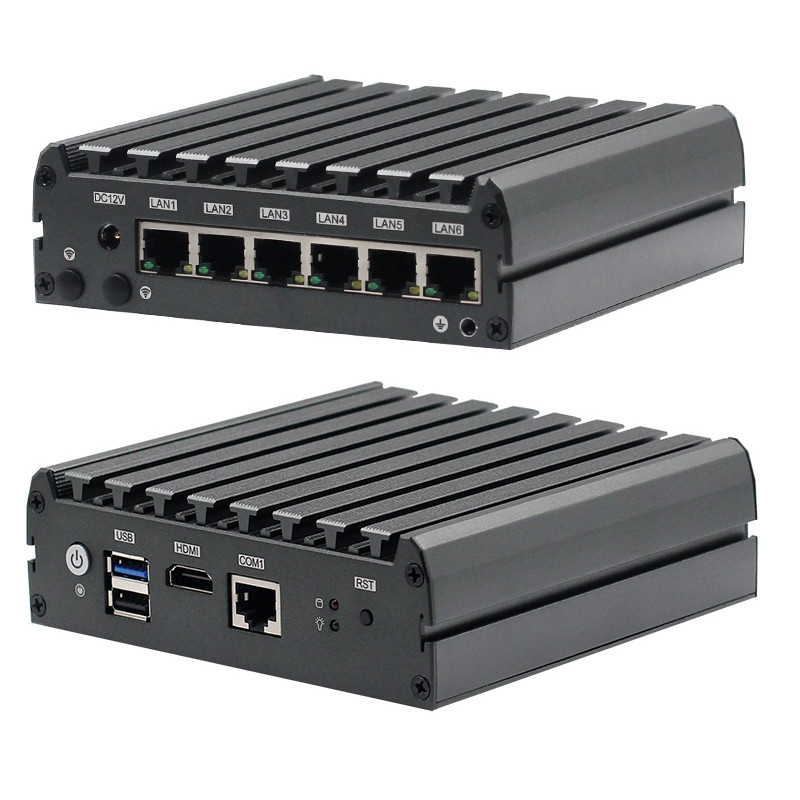

6 Gigabit LAN Network security firewall appliance quad core E3845 / J1900 pFsense fanless mini PC
Notice :
When you inquiry , you can choose the following Model :
PF11106003-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF11106003-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF11106003-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor
PF11106003-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
6 Gigabit LAN Network security firewall appliance quad core E3845 / J1900 pFsense fanless mini PC
Key Features
Integrated Intel® Bay Trail J1800 / J1900 / N2806 /E3845
Single channel DDR3L 1066/1333MHz max up to 8GB
1* SATAIII ports
1*Mini-PCIe M-SATA Scoket
Onboard 32/64/128G EMMC chip(Optional);
1*HDMI
1*USB3.0
1*USB2.0
1*RJ45 COM
6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%
Dimension: 134*126*40.6 mm
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| Chassis | Color | Black | |
| Dimension | 134*126*40.6 mm | ||
| Material | High-quality pure aluminum mini pc case | ||
| Platform | Processor | Integrated Intel® Bay Trail J1800 / J1900 / N2806 /E3845 Processor | |
| Chipset | Baytrail-D/I/M processor | ||
| Video | Graphics |
Intel HD Graphics 1*H-D-M-I Resolution maximum 1920x1080 |
|
| Memory | Technology framework | Single channel DDR3L 1066/1333MHz max to 8GB | |
| RAM socket | 1 *DDR3 SODIMM 204 Socket | ||
| Storage | SATA | 1* SATAIII ports,Maximum transmission rate to 6gb/s | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 6gb/s | ||
| eMMC | Support 32/64/128G(optional) | ||
| Network | Ethernet | 6*Intel I211AT or Intel I210 Gigabit LAN(optional) | |
| WiFi | NA | ||
| Input/Output Interface | Ports |
1*HDMI 1*USB3.0 1*USB2.0 6*LAN 1*Quick Power On button with indicator 1*Restart button 1*DC 1*Power Indicator 1*Hard disk indicator 1*RJ45 port RS232 or RS485(optional) |
|
| Expansion | Mini PCIe | 1*Mini-PCIe socket,support PCIE and USB Signal equipment | |
| Cooling | Fanless Design,Noiseless design | ||
| Power Supply | Power type | Single input DC power,DC12-19V,+/-5% | |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ | |
| storage temperature | -40℃ ~ +85℃ | ||
| Working humidity | 0% ~ 90% relative humidity, no condensation | ||
| Storage humidity | 0% ~ 90% relative humidity, no condensation | ||
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | ||
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 8 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
