| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF12004001-BT-E3845 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Galvanized Steel Sheet Chassis | Dimension: | 480*200*45mm (L*W*H) |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Bay Trail J1800 / N2806 / J1900 / E3845 Processor |
| Memory: | Onboard 2GB\4GB DDR3 | Gigabit LAN: | 4* RJ45 Gigabit Ethernet Port |
| Bypass: | Support 2 Group Bypass Function | COM: | 1* RJ45 COM |
| Highlight: | Firewall PC E3845,Firewall PC J1900,Firewall PC 4LAN |
||

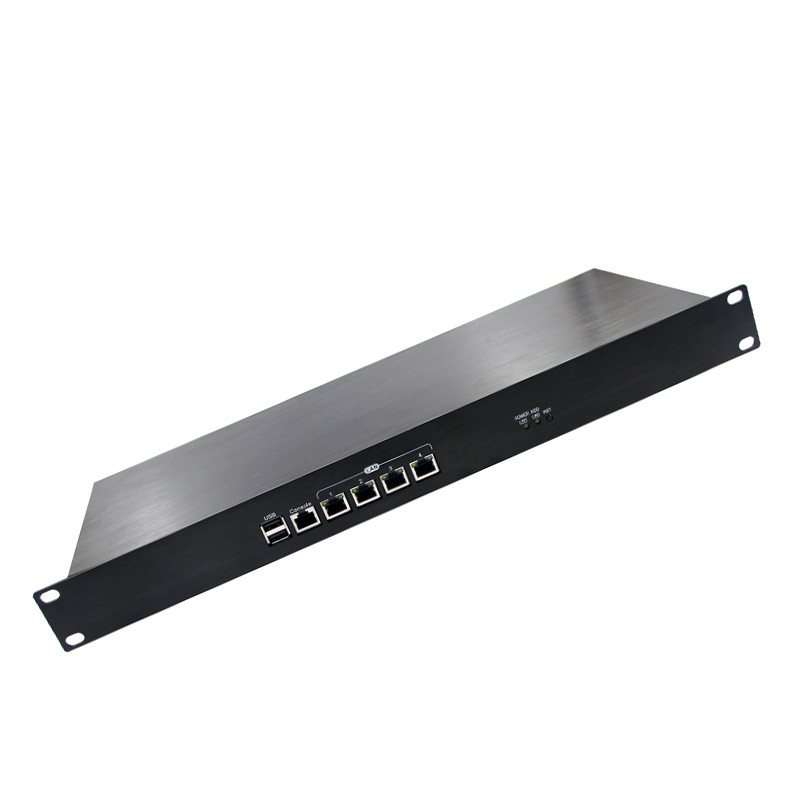

1U rack Quad core E3845 / J1900 4 LAN network security Firewall PC Redundant isolated power
Notice :
When you inquiry , you can choose the following Model :
PF12004001-BT-J1800 , Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF12004001-BT-J1900 , Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF12004001-BT-N2806 , Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor
PF12004001-BT-E3845 , Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
1U rack Quad core E3845 / J1900 4 LAN network security Firewall PC industrial fanless computer Redundant isolated power with wide AC/DC input range
Key Features
Integrated Intel® Bay Trail J1800 / N2806 / J1900 / E3845 Processor
Signal Channel DDR3 1066/1333/1600MHz
Onboard 2GB4GB DDR3
1*mSATA socket
1*SATA 2.0 (Optional)
1*CF/Cfast (Optional)
Onboard 4*Intel I211-AT Gigabit Ethernet LAN
Support 2 Group Bypass Function
1* RJ45 standard serial port
2* USB2.0 interface
1* VGA display output
Dimension: 480*200*45mm (L*W*H)
High quality galvanized steel sheet
1U standard rack mounting chassis
Specifications
| Chassis Color | Black |
| Dimension | 480*200*45mm (L*W*H) |
| Structure | 1U Standard chassis |
| Material | High quality galvanized steel sheet |
| Installation | 1U standard rack mounting method |
| Processor |
Support Intel Baytrail-D/I/M processor Integrated Intel® Bay Trail J1800 / N2806 / J1900 / E3845 Processor |
| Chipset | Support Intel Baytrail Single chip |
| Memory |
Signal Channel DDR3 1066/1333/1600MHz Onboard 2GB4GB DDR3 |
| Video |
Intel Graphics 1*VGA Resolution maximum:2048*1536 |
| Lan | 4*Intel I211AT Gigabit Ethernet(LAN1andLAN2,LAN3 and LAN4support 2 group Bypass function,Optional) |
| Storage socket | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s |
| 1*SATA 2.0 (Optional) | |
| 1*CF or Cfast storage interface(Optional) | |

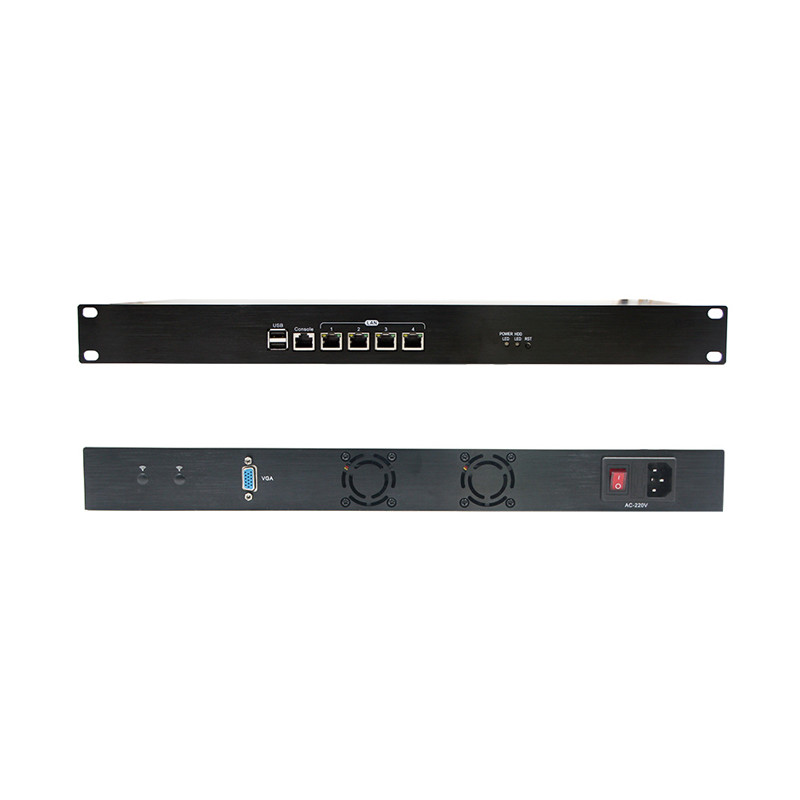

| Front panel interface | 4*Intel I211AT Lan card |
| 1*RJ45 RS232 | |
| 1*POWER_LED | |
| 1*HDD_LED | |
| 1*Reset Restart button | |
| 2*USB | |
| 1*POWER ON/OFF | |
| Back panel interface | 1*VGA |
| 1*AC power connector | |
| 2*WIFI antenna interface | |
| 1*AC POWER ON/OFF | |
| Power Input | AC 110V ~ 220V |
| Operating Temp. | -20°C~+60°C(-4°F~140°F) |
| Storage Temp. | -40°C~+85°C(-40°F~185°F) |
| Working humidity | 0%~90% (non-condensing) |
| Storage humidity | 0%~90% (non-condensing) |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| OS sytem | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
