| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF12006001-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis Material: | Galvanized Steel Sheet Chassis | Size: | 480*200*45mm (L*W*H) |
|---|---|---|---|
| Chassis Color: | Black | Processor: | Integrated Intel® Bay Trail J1800 / J1900 / E3845 Processor |
| RAM: | Onboard 2GB\4GB DDR3 | CF/Cfast: | 1* CF/Cfast |
| Gigabit LAN: | 6* RJ45 Gigabit Ethernet Port | Bypass: | Support 2 Group Bypass Function |
| COM: | 1* RJ45 COM | ||
| Highlight: | 1U Chassis Mini Quad Core PC,Mini Quad Core PC Firewall |
||
1U chassis quad cores J1900 / E3845 network security firewall appliance pc 6 Gigabit LAN bypass
Notice :
When you inquiry , you can choose the following Model :
PF12006001-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF12006001-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF12006001-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
1U chassis quad cores J1900 / E3845 network security firewall appliance pc 6 Gigabit LAN bypass support pFsense onboard 4GB RAM
Key Features
Integrated Intel® Bay Trail J1800 / J1900 / E3845 Processor
Signal Channel DDR3 1066/1333/1600MHz
Onboard 2GB4GB DDR3
1*mSATA socket
1*SATA 2.0
1*CF/Cfast
Onboard 6*Intel I211-AT Gigabit Ethernet LAN
Support 2 Group Bypass Function
1* RJ45 standard serial port
2* USB2.0 interface
1* VGA display output
Dimension: 480*200*45mm (L*W*H)
High quality galvanized steel sheet
1U standard rack mounting chassis
Specifications
| Chassis Color | Black |
| Dimension | 480*200*45mm (L*W*H) |
| Structure | 1U Standard chassis |
| Material | High quality galvanized steel sheet |
| Installation | 1U standard rack mounting method |
| Processor |
Support Intel Baytrail-D/I/M processor Integrated Intel® Bay Trail J1800 / J1900 / E3845 Processor |
| Chipset | Support Intel Baytrail Single chip |
| Memory |
Signal Channel DDR3 1066/1333/1600MHz Onboard 2GB4GB DDR3 |
| Video |
Intel Graphics 1*VGA Resolution maximum:2048*1536 |
| Lan | Onboard 6*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2,LAN3 and LAN4 support 2 Group Bypass Function) |
| Storage socket | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s |
| 1*SATA 2.0 | |
| 1*CF/Cfast | |

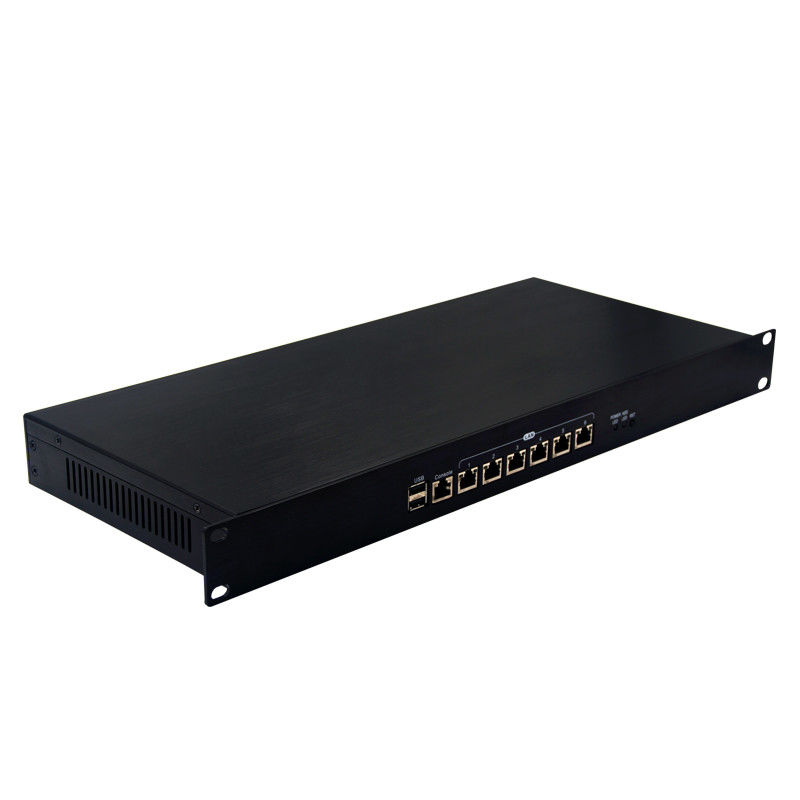

| Front panel interface | 6*Intel I211AT Lan card 4*USB |
| 1*RJ45 RS232 | |
| 1*POWER_LED | |
| 1*HDD_LED | |
| 1*Reset Restart button | |
| 2*USB | |
| 1*POWER ON/OFF | |

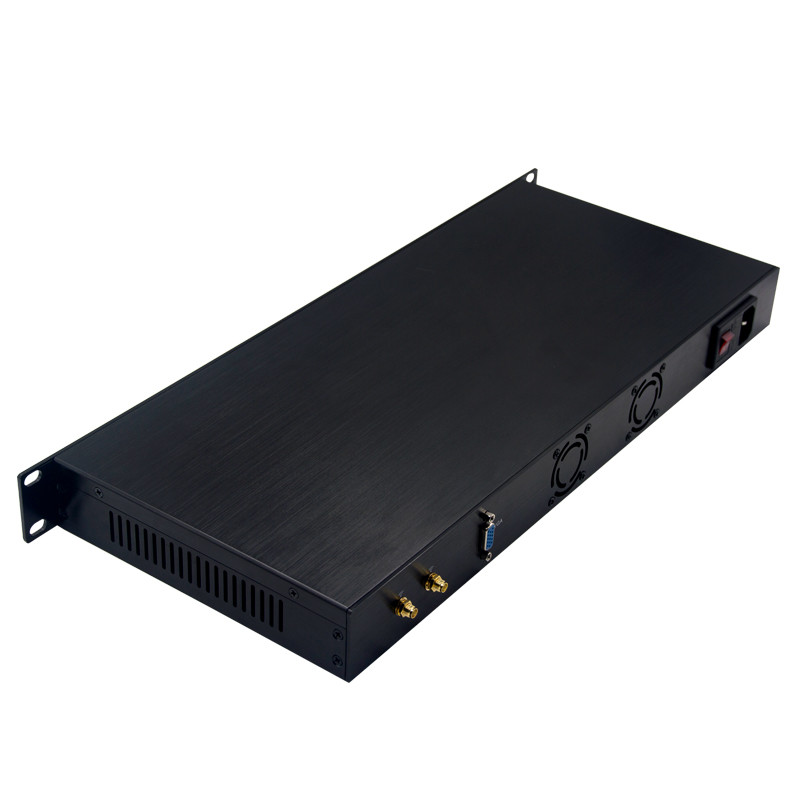

| Back panel interface | 1*VGA |
| 1*AC power connector | |
| 2*WIFI antenna interface | |
| 1*AC POWER ON/OFF | |
| Power Input | AC 110V ~ 220V |
| Operating Temp. | -20°C~+60°C(-4°F~140°F) |
| Storage Temp. | -40°C~+85°C(-40°F~185°F) |
| Working humidity | 0%~90% (non-condensing) |
| Storage humidity | 0%~90% (non-condensing) |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| OS sytem | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Warranty 1 year
