| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF10206401-H110 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Galvanized Steel Sheet Chassis | Dimension: | 560*480*110mm |
|---|---|---|---|
| Chassis Color: | Black | Chipset: | H110/H170/Z170 High-speed Chipset |
| CPU: | LGA1151 Socket Intel 6th And 7th I3-i5-i7 | Memory: | 2* DDR4 2133/2400Mhz |
| Gigabit LAN: | 6* RJ45 Gigabit Ethernet Port | Optical SFP Ports: | 4*I350 SFP Ports |
| COM: | 1* RJ45 COM | ||
| Highlight: | I7 Firewall PC,I5 Firewall PC,Intel mini pc 6 lan |
||

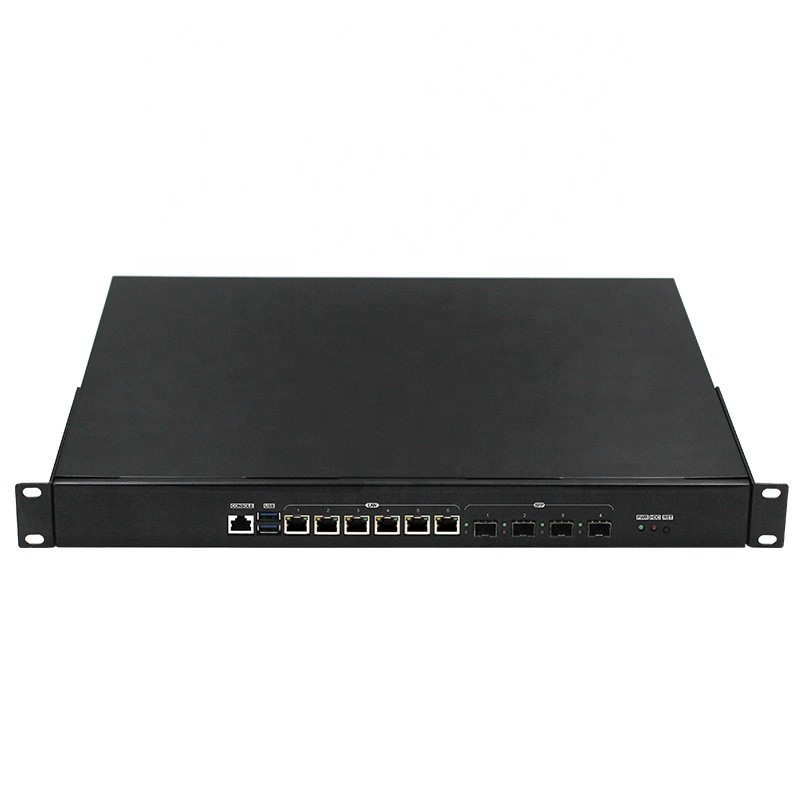

1U rackmount H110 H170 Intel 6th and 7th i3 i5 i7 bypass pFsense Firewall pc 6 Gigabit lan 4 Fiber ports
1U rackmount H110/H170/Z170 chipset Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU 6 Gigabit LAN 4 optical Fiber ports firewall appliance support pFsense
Key Features
Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
H110/H170/Z170 high-speed chipset
Support support 2* DDR4 2133/2400Mhz
Support 1*MSATA SSD expansion
6* Intel i211 gigabit LAN support 2 group bypass
4* Intel I350 SFP Ports
1* RJ45 standard serial port
2* USB3.0 interface
1* VGA display output
AC 110V ~ 220V AC power supply
Dimension: 486*411*43.9mm (L*W*H)
Package size: 560*480*110mm
Gross Weight: 7.3 KG
High quality galvanized steel sheet
1U standard rack mounting chassis
Specifications
| Chassis Color | Black |
| Dimension | 486*411*43.9mm (L*W*H) |
| Structure | 1U Standard chassis |
| Material | High quality galvanized steel sheet |
| Installation | 1U standard rack mounting method |
| Processor |
Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU Max Turbo Frequency 3.3Ghz |
| Chipset | H110/H170/Z170 high-speed chipset |
| Memory | 2*DDR4 Ram socket,support DDR4 2133/2400Mhz support dual channel |
| Lan |
6*Intel Lan Port I211 or I210 chipset for optional (LAN1 and LAN2,LAN3 and LAN4support 2*group Bypass function) |
| 4*I350 SFP Ports | |
| Storage socket | 1*MINISATA |
| 1*SATA | |
| 1*CF/Cfast | |
| Front panel interface | 6*Intel Lan Port I211 or I210 chipset for optional |
| 1*RJ45 RS232 | |
| 1*POWER_LED | |
| 1*HDD_LED | |
| 1*Reset Restart button | |
| 2*USB 3.0 | |
| 1*Switch button | |
| 4*I350 SFP Ports | |

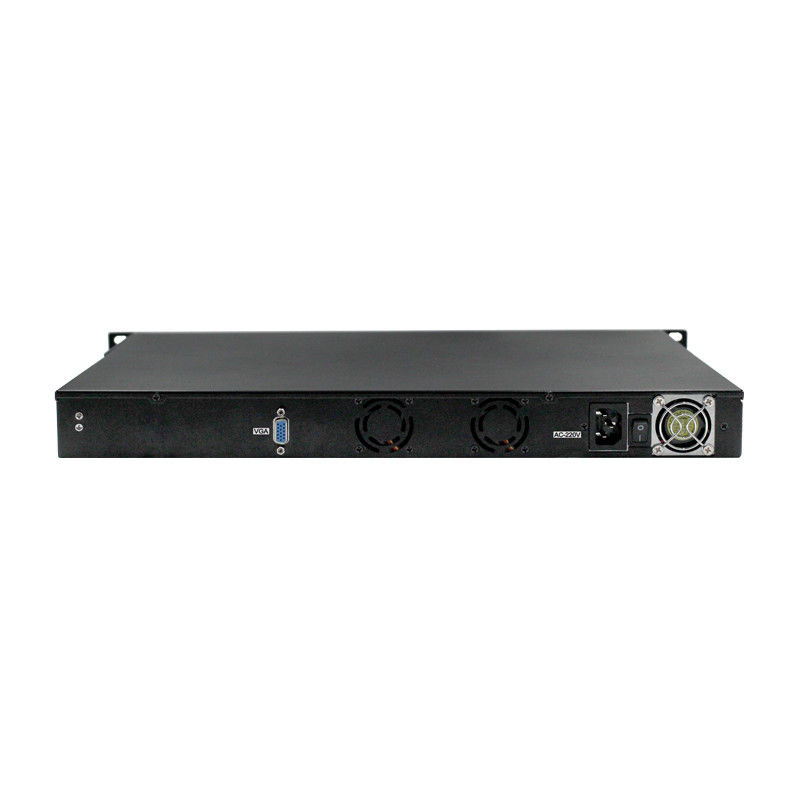

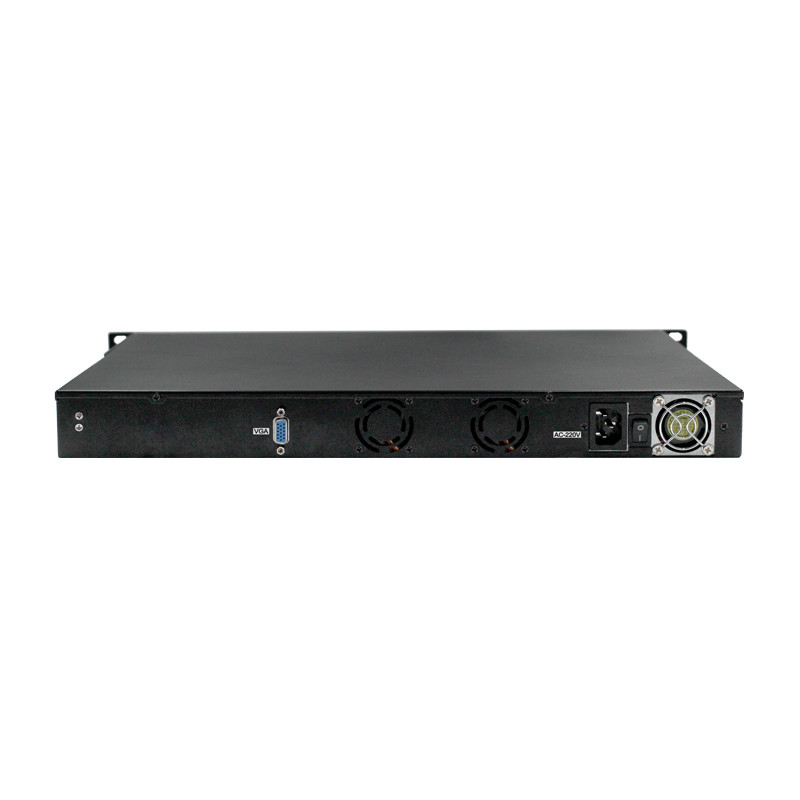

| Back panel interface | 1*VGA interface |
| 1*AC power connector | |
| 2*WIFI antenna interface | |
| 1*AC power switch | |
| Power Input | AC 110V ~ 220V |
| Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ |
| Relative Humidity | 5%-95%, no condensing |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| OS sytem | Support Win 7/8/10, Linux, Pfsense,iKuai, LEDE, Openwrt, Panabit, Smart6 etc. |
