| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF12202003-AP |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 134*126*40.6 Mm |
|---|---|---|---|
| Chassis Color: | Black | PROCESSOR: | Apollo Lake Quad Cores J3455 / E3940 / N3450 / N4200 / N3350 Processor |
| RAM: | 1*DDR3L | Gigabit LAN: | 2* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | PFsense Dual Gigabit Ethernet Mini PC,Firewall Dual Gigabit Ethernet Mini PC,RS232 dual ethernet mini pc |
||

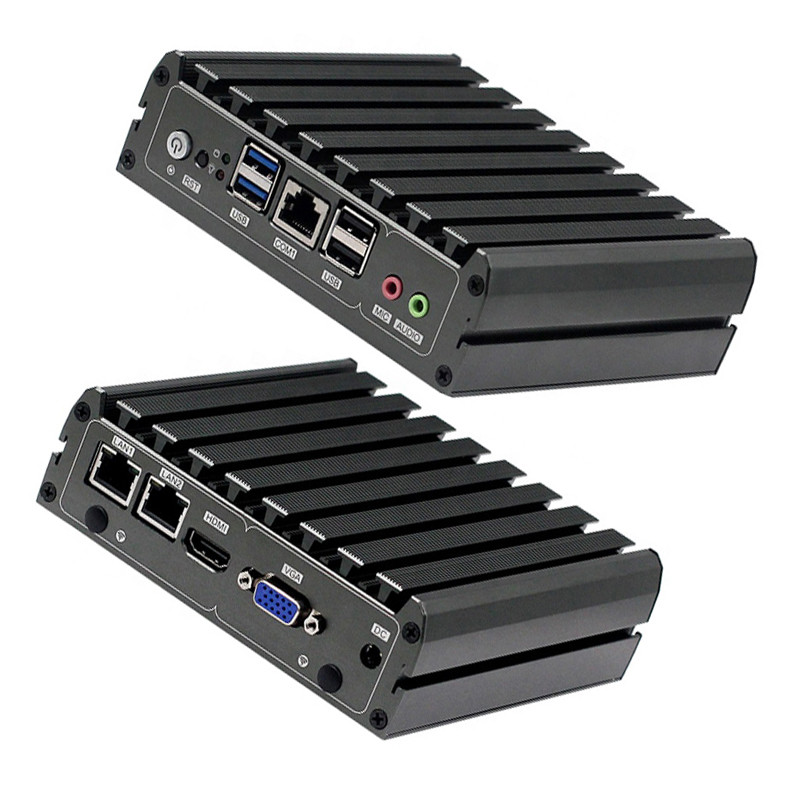

Quad cores E3940 J3455 N3450 Dual GLAN pFsense firewall appliance fanless mini PC with RS232
Notice:
When you inquiry , you can choose the following Model :
PF12202003-AP-J3455 , Integrated Intel Celeron® Processor Apollo Lake J3455 quad core 4 threads 1.5~2.3Ghz
PF12202003-AP-J4205 , Integrated Intel Pentium® Processor Apollo Lake J4205 quad core 4 threads 1.5~2.6Ghz
PF12202003-AP-E3940 , Integrated Intel Atom® Processor Apollo Lake E3940 quad core 4 threads 1.6~1.8Ghz
PF12202003-AP-N3450 , Integrated Intel Celeron® Processor Apollo Lake N3450 quad core 4 threads 1.1~2.2Ghz
PF12202003-AP-N4200 , Integrated Intel Pentium® Processor Apollo Lake N4200 quad core 4 threads 1.1~2.5Ghz
PF12202003-AP-N3350 , Integrated Intel Celeron® Processor Apollo Lake N3350 dual core 2 threads 1.1~2.4Ghz
Quad cores J3455 / E3940 / N3450 / N4200 Dual GLAN pFsense firewall appliance fanless mini PC with RS232
Key Features
Integrated Intel® Apollo lake Quad cores J3455 / E3940 / N3450 / N4200 / N3350 Processor
Single channel DDR3L 1066/1333/1600/1866MHz
DDR3 SODIMM 204 Socket
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI, 1*VGA
2*USB3.0
2*USB2.0
1*RJ45 COM
2*RJ45 Gigabit Lan
Single input DC Wide Voltage 12-19V
Dimension: 134*126*40.6 mm
Weight : 1.5KG
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| Chassis | Color | Black |
| Dimension | 134*126*40.6 mm | |
| Material | High-quality pure aluminum mini pc case | |
| CPU | CPU | Integrated Intel® Apollo lake Quad cores J3455 / E3940 / N3450 / N4200 / N3350 Processor |
| CPU package | BGA | |
| Chipset | Apollo lake single chip set | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Single channel DDR3L 1066/1333/1600/1866MHz |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphics controller | Intel HD Graphics 500 |
| VGA | VGA max resolution support 2048x1536 | |
| HDMI | max resolution support3840*2160 | |
| Dual display | VGA+HDMI Synchronous or asynchronous | |
| I/O back panel | Ports |
1*DC 1*VGA 1*HDMI 2*LAN 2*USB2.0 2*USB3.0 1*Power port |
| Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
| Input/output interface | USB | 2*USB2.0 2*USB3.0 Max support+5V/1A |
| Com | 1*RJ45 Port RS-232 | |
| Infrared | 1*IR Infrared receiving port | |
| Audio | 1*LINE OUT 1*MIC | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
| Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1*M-SATA Socket, Support SanDisk protocol, maximum rate 3gb/s | |
| EMMC | Support32/64/128G(optional) | |
| POWER SUPPLY | Power Type | Wide Voltage 12-19V |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
