Chassis: | Aluminium Chassis | Dimension: | 134*126*40.6 Mm |
---|---|---|---|
Chassis Color: | Black | CPU: | Apollo Lake N4200 Processor Quad Cores |
RAM: | 1*DDR3L | Gigabit LAN: | 2* Gigabit LAN |
COM Port: | 1* CISCO Standard RS232 Serial | ||
Highlight: | 2 Gigabit LAN Firewall PC,Fanless Firewall PC,RS232 Fanless Mini PC |
2 gigabit LAN quad cores N4200 cpu firewall appliance fanless mini PC with RS232 support Mikrotik pFsense
Key Features
Integrated Intel® Pentium® Apollo lake N4200 Processor quad cores 4 threads 1.1~2.5Ghz Processor
Single channel DDR3L 1066/1333/1600/1866MHz
DDR3 SODIMM 204 Socket
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI, 1*VGA
2*USB3.0
2*USB2.0
1*RJ45 COM
2*RJ45 Gigabit Lan
Single input DC Wide Voltage 12-19V
Dimension: 134*126*40.6 mm
Weight : 1.5KG
Fanless Design,Noiseless design
Aluminium chassis
Specifications
Chassis | Color | Black |
Dimension | 134*126*40.6 mm | |
Material | High-quality pure aluminum mini pc case | |
CPU | CPU | Integrated Intel® Pentium® Apollo lake N4200 Processor quad cores 4 threads 1.1~2.5Ghz Processor |
CPU package | BGA | |
Chipset | Apollo lake single chip set | |
BIOS | EFI BIOS | |
Ram | Technology Architecture | Single channel DDR3L 1066/1333/1600/1866MHz |
Socket | DDR3 SODIMM 204 Socket | |
Video | Graphics controller | Intel HD Graphics 505 |
VGA | VGA max resolution support 2048x1536 | |
HDMI | max resolution support3840*2160 | |
Dual display | VGA+HDMI Synchronous or asynchronous | |

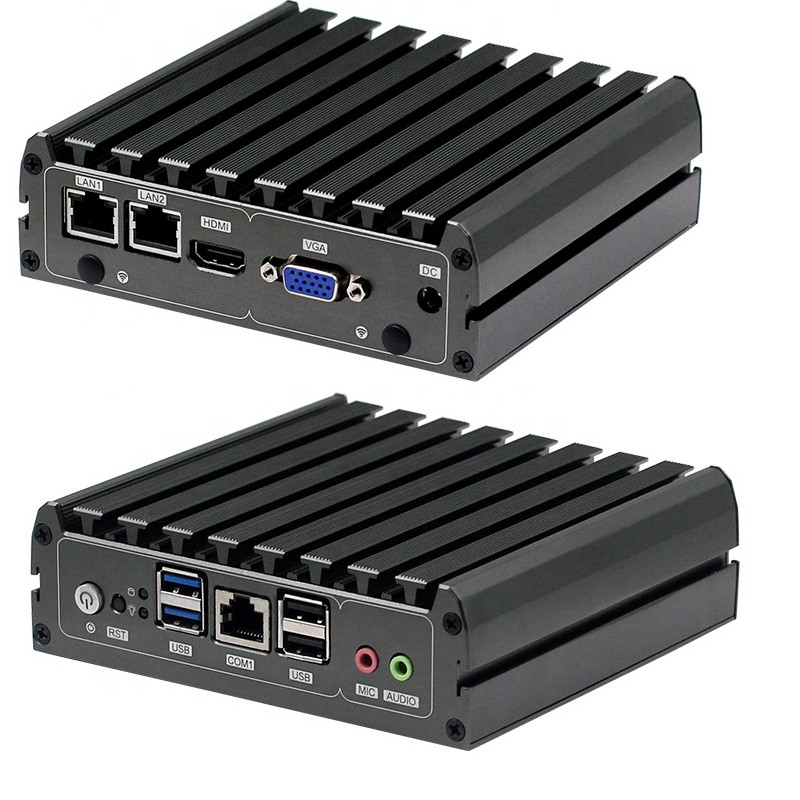

I/O back panel | Ports |
1*DC 1*VGA 1*HDMI 2*LAN 2*USB2.0 2*USB3.0 1*Power port |
Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
Input/output interface | USB | 2*USB2.0 2*USB3.0 Max support+5V/1A |
Com | 1*RJ45 Port RS-232 | |
Infrared | 1*IR Infrared receiving port | |
Audio | 1*LINE OUT 1*MIC | |
Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
M-SATA | 1*M-SATA Socket, Support SanDisk protocol, maximum rate 3gb/s | |
EMMC | Support32/64/128G(optional) | |
POWER SUPPLY | Power Type | Wide Voltage 12-19V |
WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90%(non-condensing) | |
Storage humidity | 0% ~ 90%(non-condensing) | |
Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
