| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF12206003-4TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 180*122.3*52.2mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Haswell-U I3-4010U / I5-4200U / I7-4200U Processor |
| RAM: | 1*DDR3L | Gigabit LAN: | 6* Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | 6 Gigabit LAN Firewall Mini Pc,I3-4010U Firewall Mini Pc,Soft Router pfsense mini pc |
||
Firewall Mini pc 4th gen Haswell-U i3-4010U / i5-4200U / i7-4200U 6 Gigabit LAN pFsense soft router
Notice :
When you inquiry , you can choose the following Model :
PF12206003-4TH-I3 Integrated Intel® Haswell i3-4010U dual cores 4 threads 1.7GHz Processor
PF12206003-4TH-I5 Integrated Intel® Haswell i5-4200U dual cores 4 threads 1.6~2.6GHz Processor
PF12206003-4TH-I7 Integrated Intel® Haswell i7-4500U dual cores 4 threads 1.8~3.0GHz Processor
Firewall Mini pc 4th gen Haswell-U i3-4010U / i5-4200U / i7-4200U 6 Gigabit LAN pFsense soft router
Key Features
Integrated Intel® Core™ Haswell-U i3-4010U / i5-4200U / i7-4200U processor
Single Channel DDR3L 1066/1333/1600MHz
1*DDR3L SODIMM 204 Socket
1* SATAIII ports
1*NGFF_SSD interfaces
1*Mini-PCIe M-SATA Scoket
1*HDMI
2*USB3.0 , 2*USB2.0
1*RJ45 COM
6*RJ45 Gigabit Lan
Single input DC power,DC12-19V,+/-5%

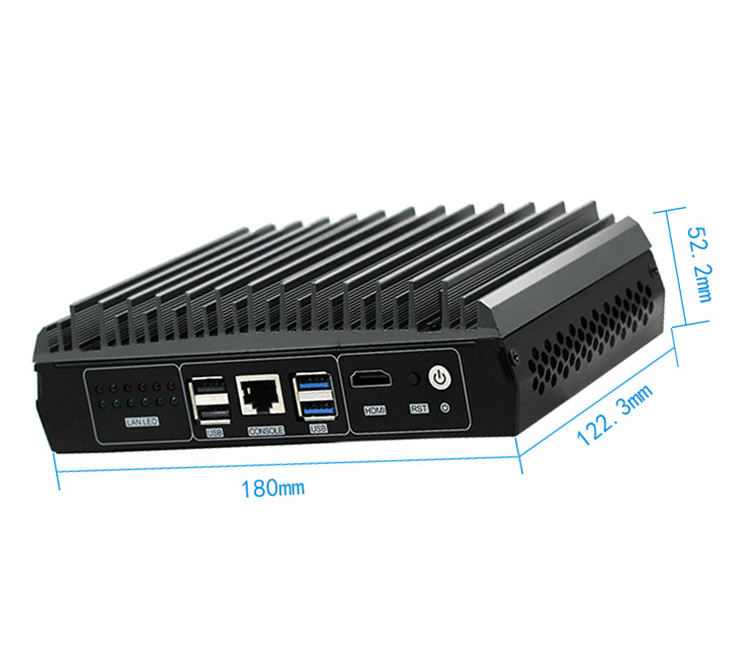

Dimension: 180*122.3*52.2mm
Aluminium chassis
Specifications
| Chassis | Color | Black |
| Dimension | 180*122.3*52.2mm | |
| Material | aluminium chassis | |
| Platform | Processor |
Integrated Intel® Core™ Haswell-U i3-4010U / i5-4200U / i7-4200U processor |
| Chipset | Intel® Haswell-U series SOC | |
| Video | Graphics |
Integrated Intel HD Graphics 4400 1*H-D-M-I Maximum support(HDMI1.4)3200*2000@60HZ Support 4K display output |
| Memory | Technology framework | Single Channel DDR3L 1066/1333/1600MHz |
| RAM socket | 1*DDR3L SODIMM 204 Socket | |
| Storage | HDD |
1* SATAIII ports,Maximum transmission rate to 6gb/s 1*NGFF_SSD interfaces 1*Mini-PCIe M-SATA Scoket, Maximum transmission rate to 6gb/s |
| Network | Ethernet | 6*Intel I211AT Gigabit Ethernet,RJ45 ports |
| WiFi | N/A | |
| Input/Output Interface | Ports |

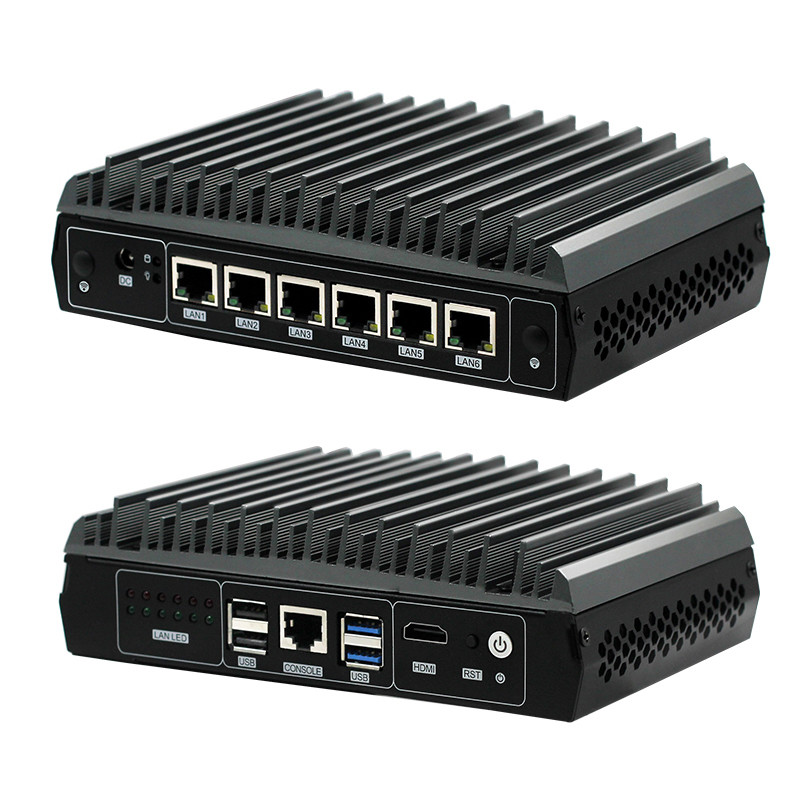

6*LAN 1*HDMI 1*DC 2*USB3.0 2*USB2.0 1*RJ45 COM 1* switch button 1* reset button 1* power indicator 1* hard disk indicator 6* NIC indicator |
| Expansion | Mini PCIe | 1*Mini-PCIe socket,Support PCIe and USB devices |
| Cooling | Aluminum alloy heat sink with fan(Support automatic and manual fan speed adjustment) | |
| Power Supply | Single input DC power,DC12-19V,+/-5% | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
