| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF13102003HD-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 154.8 * 117.4 *45.3 Mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Integrated Intel® Bay Trail J1800 / N2806 Dual Cores Processor |
| Display: | 1*DP, 1*H-D-M-I | RAM: | 1*DDR3L Max Up To 8GB |
| Gigabit LAN: | 2 Gigabit LAN | COM Port: | 1* CISCO Standard RS232 Serial |
| Highlight: | 2 Lan Mini Pc Firewall,Mikrotik 2 Lan Mini Pc,PFsense Dual Core Mini Pc |
||

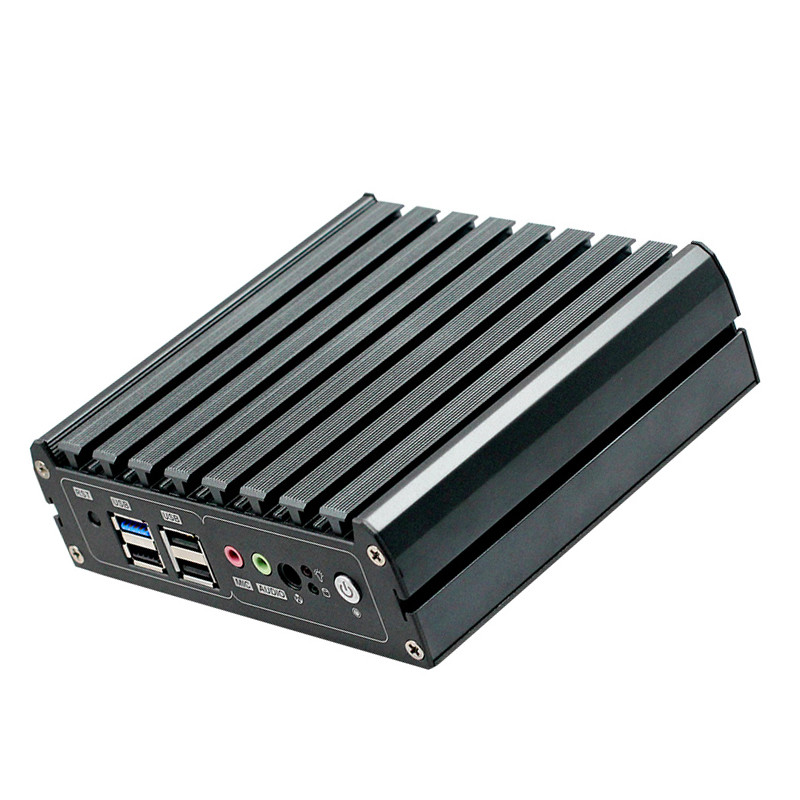

Dual core J1800 N2806 firewall appliance 2 LAN fanless mini PC DP Display support Mikrotik pFsense
Notice :
When you inquiry , you can choose the following Model :
PF13102003HD-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF13102003HD-BT-N2806 Integrated Celeron® Bay Trail N2806 dual core 2 threads 1.6~2.0Ghz processor
Dual core J1800 / N2806 firewall appliance 2 LAN fanless mini PC DP Display support Mikrotik pFsense
Key Features
Integrated Intel® Bay Trail J1800 / N2806 dual cores Processor
Single channel DDR3L 1066/1333MHz max up to 8GB
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
Support 32/64/128G EMMC chip(Optional);
1*DP
1*HDMI
1*USB3.0
3*USB2.0
2*RJ45 Gigabit Lan
1*RJ45 COM
Single input DC power Wide Voltage 12-19V
Dimension: 154.8 * 117.4 *45.3 mm
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| CPU | CPU |
Integrated Intel® Bay Trail J1800 / N2806 dual cores Processor |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M serial CPU | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Single channel DDR3L 1066/1333MHz |
| capacity | Max support 8GB Ram | |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphics controller | Intel HD Graphics |
| DP | DP support Max resolution 2560*1600 | |
| HDMI | HDMI Max resolution 1920x1080 | |
| Dual display | HDMI+DP Synchronous or asynchronous display | |

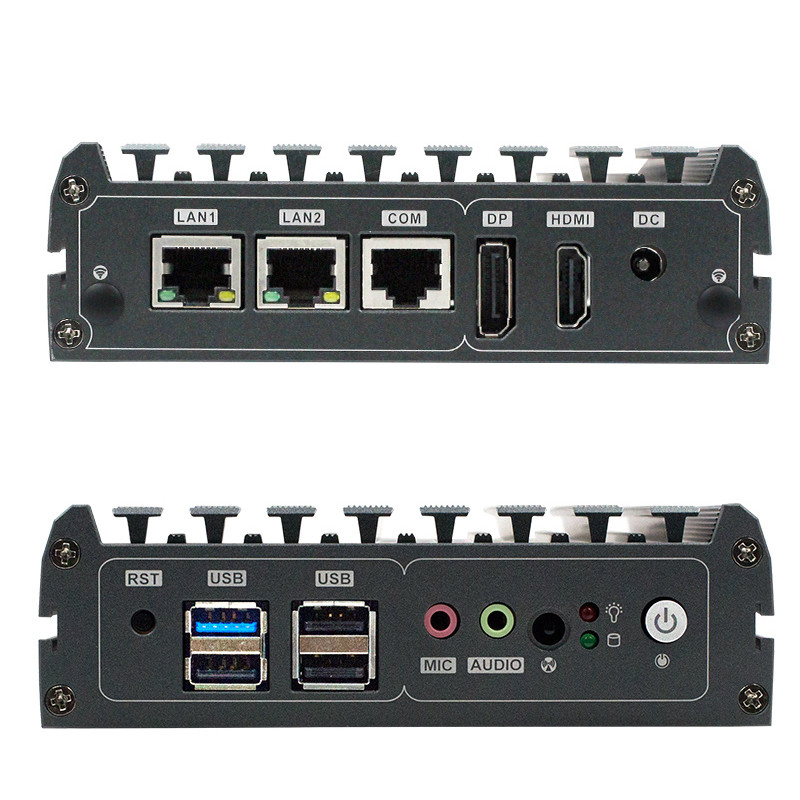

| I/O back panel | Ports |
1*DP 1*HDMI 4*USB 2*LAN 1* quick start button with indicator light 1* restart button 1*Line_out 1*MIC 1* power indicator 1* hard disk indicator |
| Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
| Input/output interface | USB |
3*USB2.0 1*USB3.0 Max support+5V/1A |
| Com | 1*RJ45 Port RS-232 | |
| Infrared | 1*IR Infrared receiving port | |
| Audio | 1*LINE OUT 1*MIC | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
| Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate | |
| 3gb/s | ||
| EMMC | Support 32/64/128G(optional) | |
| POWER SUPPLY | Power Type | Wide Voltage 12-19V |
| Power consumption | 20W | |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| Chassis | Color | Black |
| Dimension | 154.8 * 117.4 mm | |
| Material | High-quality pure aluminum mini pc case |
