| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF13102003HD-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 154.8 * 117.4 *45.3 Mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Bay Trail J1900 Quad Cores |
| Display: | 1*DP, 1*H-D-M-I | RAM: | 1*DDR3L Max Up To 8GB |
| Gigabit LAN: | 2 Gigabit LAN | COM Port: | 1* CISCO Standard RS232 Serial |
| Highlight: | Firewall Mini PC 2 Gigabit Ethernet,Fanless Mini PC 2 Gigabit Ethernet,J1900 2 ethernet mini pc |
||

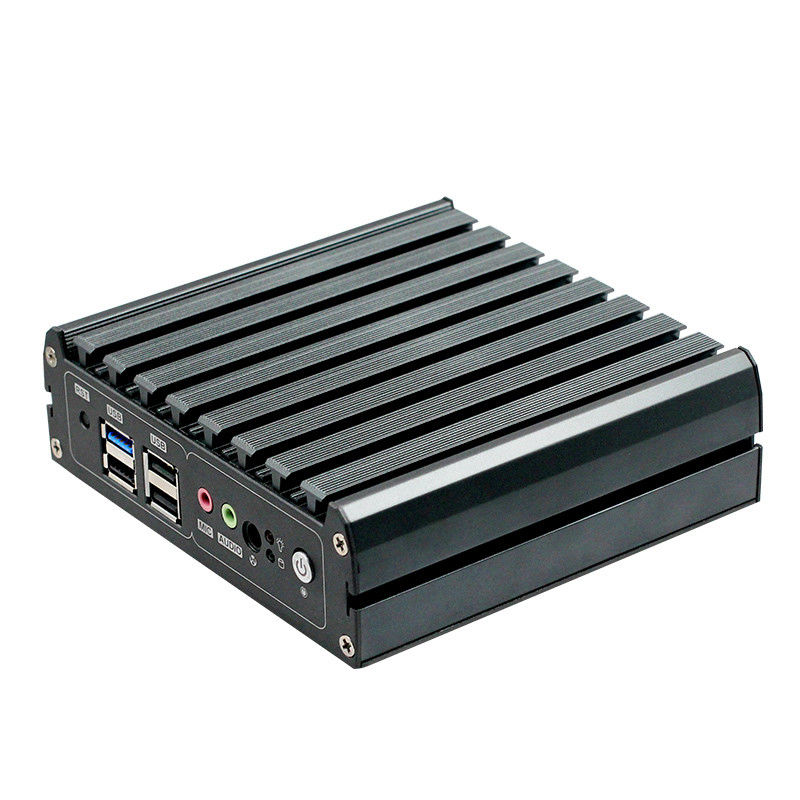

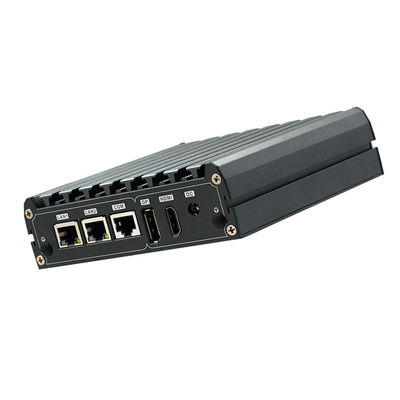

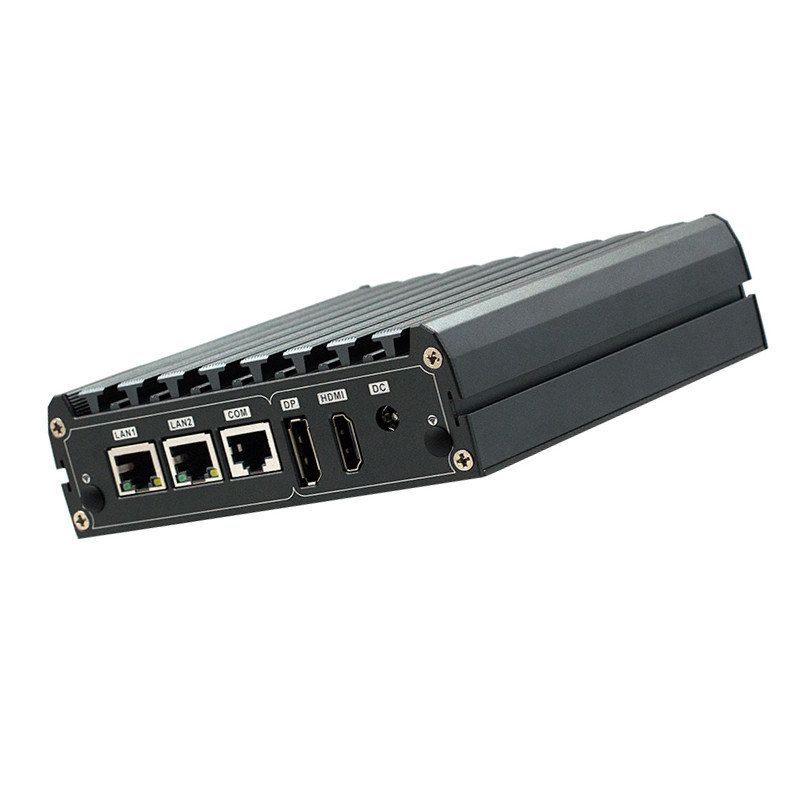

2 ethernet NIC quad core J1900 E3845 fanless firewall appliance mini PC DP H-D-M-I port support pFsense
Notice :
When you inquiry , you can choose the following Model :
PF13102003HD-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF13102003HD-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
2 ethernet NIC quad core J1900 / E3845 fanless firewall appliance mini PC DP H-D-M-I port support pFsense
Key Features
Integrated Intel® Bay Trail quad core J1900 / E3845 processor
Single channel DDR3L 1066/1333MHz max up to 8GB
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
Support 32/64/128G EMMC chip(Optional);
1*DP
1*HDMI
1*USB3.0
3*USB2.0
2*RJ45 Gigabit Lan
1*RJ45 COM
Single input DC power Wide Voltage 12-19V
Dimension: 154.8 * 117.4 *45.3 mm
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| CPU | CPU | Integrated Intel® Bay Trail quad core J1900 / E3845 processor |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M serial CPU | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Single channel DDR3L 1066/1333MHz |
| capacity | Max support 8GB Ram | |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphics controller | Intel HD Graphics |
| DP | DP support Max resolution 2560*1600 | |
| HDMI | HDMI Max resolution 1920x1080 | |
| Dual display | HDMI+DP Synchronous or asynchronous display | |
| I/O back panel | Ports |
1*DP 1*HDMI 4*USB 2*LAN 1* quick start button with indicator light 1* restart button 1*Line_out 1*MIC 1* power indicator 1* hard disk indicator |
| Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
| Input/output interface | USB |
3*USB2.0 1*USB3.0 Max support+5V/1A |
| Com | 1*RJ45 Port RS-232 | |
| Infrared | 1*IR Infrared receiving port | |
| Audio | 1*LINE OUT 1*MIC | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
| Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate | |
| 3gb/s | ||
| EMMC | Support 32/64/128G(optional) | |
| POWER SUPPLY | Power Type | Wide Voltage 12-19V |
| Power consumption | 20W | |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| Chassis | Color | Black |
| Dimension | 154.8 * 117.4 mm | |
| Material | High-quality pure aluminum mini pc case |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
