| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF13102003VH-BT-J1800 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 134*126*40.6 Mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Bay Trail J1800 Processor Dual Cores |
| RAM: | 1*DDR3L Max Up To 8GB | Gigabit LAN: | 2 Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | ||
| Highlight: | J1800 Mini PC Dual Core,2LAN Mini PC Dual Core,RS232 Mini PC PFsense |
||
2 LAN dual core J1800 firewall appliance fanless mini PC with RJ45 RS232 support pFsense
Key Features
Integrated Intel® Celeron® Bay Trail J1800 Processor dual cores 2 threads 2.41~2.58Ghz
Single channel DDR3L 1066/1333 MHz
DDR3 SODIMM 204 Socket
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI, 1*VGA
1*USB3.0
3*USB2.0
1*RJ45 COM
2*RJ45 Gigabit Lan
Single input DC power supply ,DC12V5A/7A
Dimension: 134*126*40.6 mm
Weight : 1.5KG
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| Chassis | Color | Black |
| Dimension | 134*126*40.6 mm | |
| Material | High-quality pure aluminum mini pc case | |
| CPU | CPU | Integrated Intel® Celeron® Bay Trail J1800 Processor dual cores 2 threads 2.41~2.58Ghz |
| CPU package | BGA | |
| Chipset | Support Baytrail-I/D/M serial CPU | |
| BIOS | EFI BIOS | |
| Ram | Technology Architecture | Single channel DDR3L 1066/1333 MHz |
| Socket | DDR3 SODIMM 204 Socket | |
| Video | Graphics controller | Intel HD Graphics 500 |
| VGA | VGA max resolution support 2048x1536 | |
| HDMI | HDMI support max resolution: 1920x1080 | |
| Dual display | VGA+HDMI Synchronous or asynchronous | |

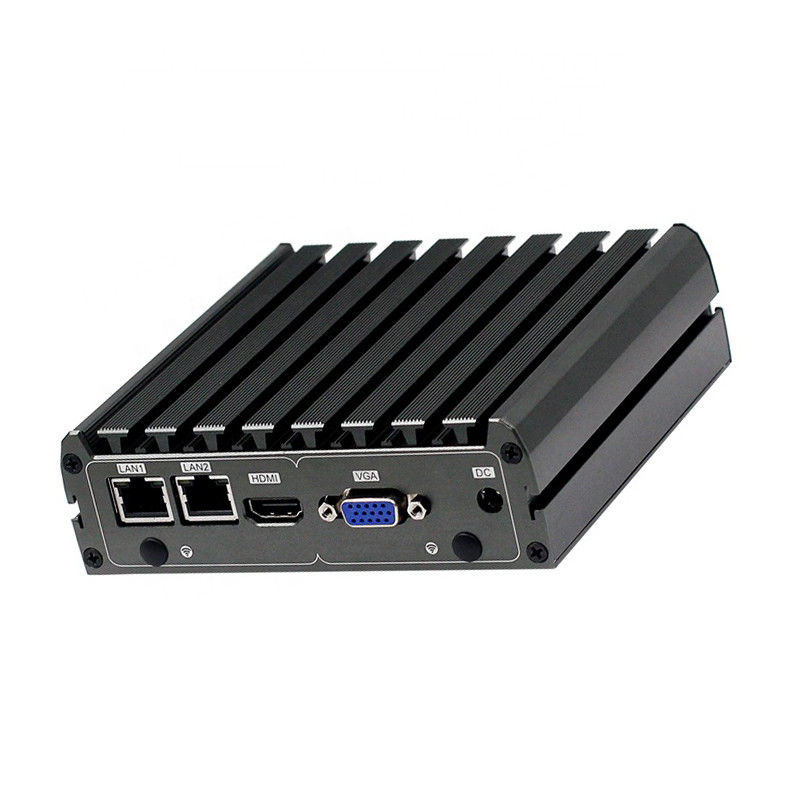

| I/O back panel | Ports |
1*DC 1*VGA 1*HDMI 2*LAN 3*USB2.0 1*USB3.0 1*Power port |
| Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
| Input/output interface | USB |
3*USB2.0 1*USB3.0 Max support+5V/1A |
| Com | 1*RJ45 Port RS-232 | |
| Audio | 1*LINE OUT 1*MIC | |
| Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
| Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
| M-SATA | 1*M-SATA Socket, Support SanDisk protocol, maximum rate 3gb/s | |
| EMMC | Support32/64/128G(optional) | |
| POWER SUPPLY | Power Type | Single input DC power supply ,DC12V5A/7A |
| WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
| Storage temperature | -40℃ ~ +85℃ | |
| Working humidity | 0% ~ 90%(non-condensing) | |
| Storage humidity | 0% ~ 90%(non-condensing) | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About shipping
1.Delivery Time:1 ~ 3 Days for one sample, 4~10 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
