Chassis: | Aluminium Chassis | Dimension: | 134*126*40.6 Mm |
---|---|---|---|
Chassis Color: | Black | CPU: | Intel® Bay Trail Quad Cores J1900 / E3845 Processor |
RAM: | 1*DDR3L Max Up To 8GB | Gigabit LAN: | 2 Gigabit LAN |
COM Port: | 1* CISCO Standard RS232 Serial | ||
Highlight: | Firewall Industrial Fanless Mini Pc,RJ45 Industrial Fanless Mini Pc,RS232 2 LAN Mini Pc |

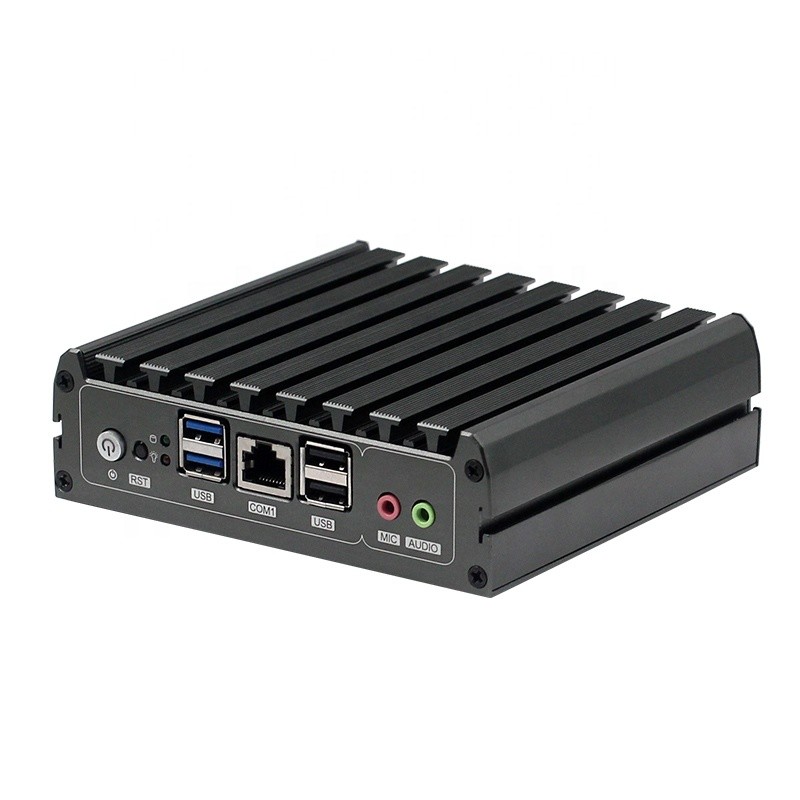

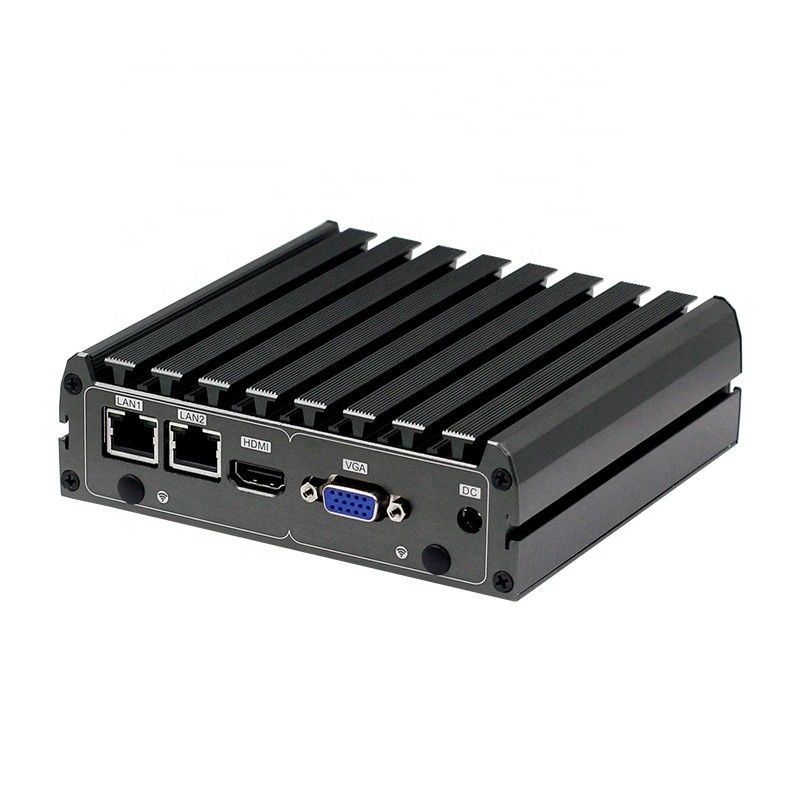

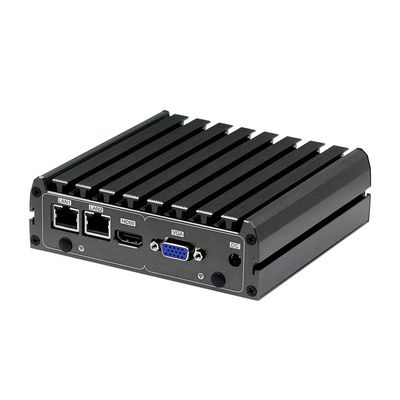

2 LAN quad cores J1900 / E3845 firewall appliance fanless mini PC with RJ45 RS232 support Mikrotik pFsense
Notice :
When you inquiry , you can choose the following Model :
PF13102003VH-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF13102003VH-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor
2 LAN quad cores J1900 / E3845 firewall appliance fanless mini PC with RJ45 RS232 support Mikrotik pFsense
Key Features
Integrated Intel® Bay Trail quad cores J1900 / E3845 Processor
Single channel DDR3L 1066/1333 MHz
DDR3 SODIMM 204 Socket
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
1*HDMI, 1*VGA
1*USB3.0
3*USB2.0
1*RJ45 COM
2*RJ45 Gigabit Lan
Single input DC power supply ,DC12V5A/7A
Dimension: 134*126*40.6 mm
Weight : 1.5KG
Fanless Design,Noiseless design
Aluminium chassis
Specifications
Chassis | Color | Black |
Dimension | 134*126*40.6 mm | |
Material | High-quality pure aluminum mini pc case | |
CPU | CPU | Integrated Intel® Bay Trail quad cores J1900 / E3845 Processor |
CPU package | BGA | |
Chipset | Support Baytrail-I/D/M serial CPU | |
BIOS | EFI BIOS | |
Ram | Technology Architecture | Single channel DDR3L 1066/1333 MHz |
Socket | DDR3 SODIMM 204 Socket | |
Video | Graphics controller | Intel HD Graphics 500 |
VGA | VGA max resolution support 2048x1536 | |
HDMI | HDMI support max resolution: 1920x1080 | |
Dual display | VGA+HDMI Synchronous or asynchronous | |
I/O back panel | Ports |
1*DC 1*VGA 1*HDMI 2*LAN 3*USB2.0 1*USB3.0 1*Power port |
Internet | Controller | 2*Intel I211ATHigh-performance Gigabit LAN,RJ45 Port |
Input/output interface | USB |
3*USB2.0 1*USB3.0 Max support+5V/1A |
Com | 1*RJ45 Port RS-232 | |
Audio | 1*LINE OUT 1*MIC | |
Expansion bus | Mini-PCle | 1*Mini-PCIe slot, only supports PCIE signaling devices |
Storage | SATA | 1*standard SATAII Port, Maximum transfer rate 3Gb/s |
M-SATA | 1*M-SATA Socket, Support SanDisk protocol, maximum rate 3gb/s | |
EMMC | Support32/64/128G(optional) | |
POWER SUPPLY | Power Type | Single input DC power supply ,DC12V5A/7A |
WORKING ENVIRONMENT | Working temperature | -20℃ ~ +60℃ |
Storage temperature | -40℃ ~ +85℃ | |
Working humidity | 0% ~ 90%(non-condensing) | |
Storage humidity | 0% ~ 90%(non-condensing) | |
Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
About shipping
1.Delivery Time:1 ~ 3 Days for one sample, 4~10 days for a large quantity.
2.Packaging Ways:Each pc for one neutral box.
3.Shipping Ways:For small amount, we advise our customer to take DHL, Fedex, UPS.For a large quantity, we can support to ship by air or by sea.
