| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF14004001-CDV |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Galvanized Steel Sheet | Dimension: | 430mm X 255mm X 50mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Dual Core D2550 / N2600 / N2800 Processor |
| Memory: | Onboard 2GB\4GB DDR3 | Gigabit LAN: | 4* RJ45 Gigabit Ethernet Port |
| COM: | 1* RJ45 Standard Serial Port | ||
| Highlight: | Firewall PC Dual Core,N2600 Firewall PC,N2800 Pfsense PC |
||
1U rack Atom® N2600 / N2800 4 LAN network security Firewall PC industrial Pfsense computer
Notice:
When you inquiry , you can choose the following Model
PF14004001-CDV-N2600 Integrated Atom® N2600 Dual cores 4 threads 1.6Ghz processor
PF14004001-CDV-N2800Integrated Atom® N2800 Dual cores 4 threads 1.86Ghz processor
PF14004001-CDV-D2550 Integrated Atom® D2550 Dual cores 4 threads 1.86Ghz processor
1U rack Atom® D2550 / N2600 / N2800 4 LAN network security Firewall PC industrial Pfsense computer
Key Features
Integrated Intel® Atom® dual core D2550 / N2600 / N2800 Processor
Signal Channel DDR3 1066/1333MHz,maximum up to 4GB
Onboard 2GB4GB DDR3
1*mSATA socket
2*SATA 2.0
4x INTEL 82583/82574L Gigabit Ethernet LAN
1* RJ45 standard serial port
4* USB2.0 interface
1* VGA display output
Dimension: 430mm x 255mm x 50mm (L*W*H)
Outer carton size:450*270*100mm. G.W.:4.6KG N.W.: 4.35KG
High quality galvanized steel sheet
1U standard rack mounting chassis
Specifications
| Chassis Color | Black |
| Dimension | 430mm x 255mm x 50mm (L*W*H) |
| Structure | 1U Standard chassis |
| Material | High quality galvanized steel sheet |
| Installation | 1U standard rack mounting method |
| Processor | Integrated Intel® Atom® dual core D2550 / N2600 / N2800 Processor |
| Chipset | Intel NM10 Express Chipset (Intel CG82NM10 PCH) |
| Memory |
Signal Channel DDR3 1066/1333MHz,maximum up to 4GB Onboard 2GB4GB DDR3 |
| Video |
IIntel GMA3650 Graphics Core(DVMT Max 384MB) 1*VGA |
| Lan | 4x INTEL 82583/82574L Gigabit Ethernet LAN,support RTL/PXE diskless booting |
| Storage socket | 1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s |
| 2*SATA 3.0 | |

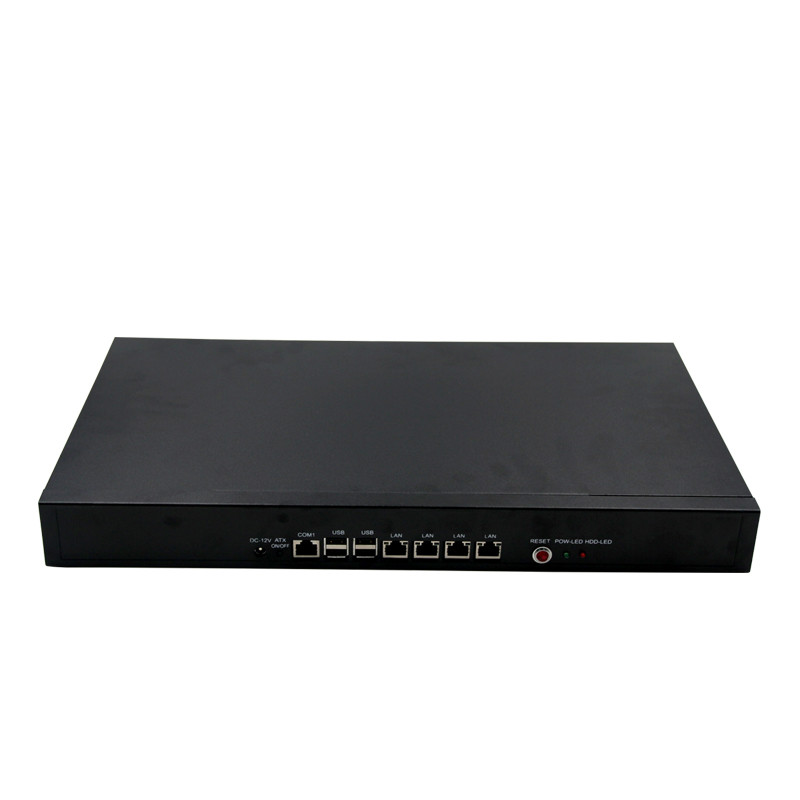

| Front panel interface | 4*RJ45 1000M LAN, , , |
| 4*USB | |
| 1*RJ45 COM | |
| ,1*ATX POWER ON/OFF | |
| 1*RESET SWITCH | |
| POWER-LED, | |
| HDD-LED | |

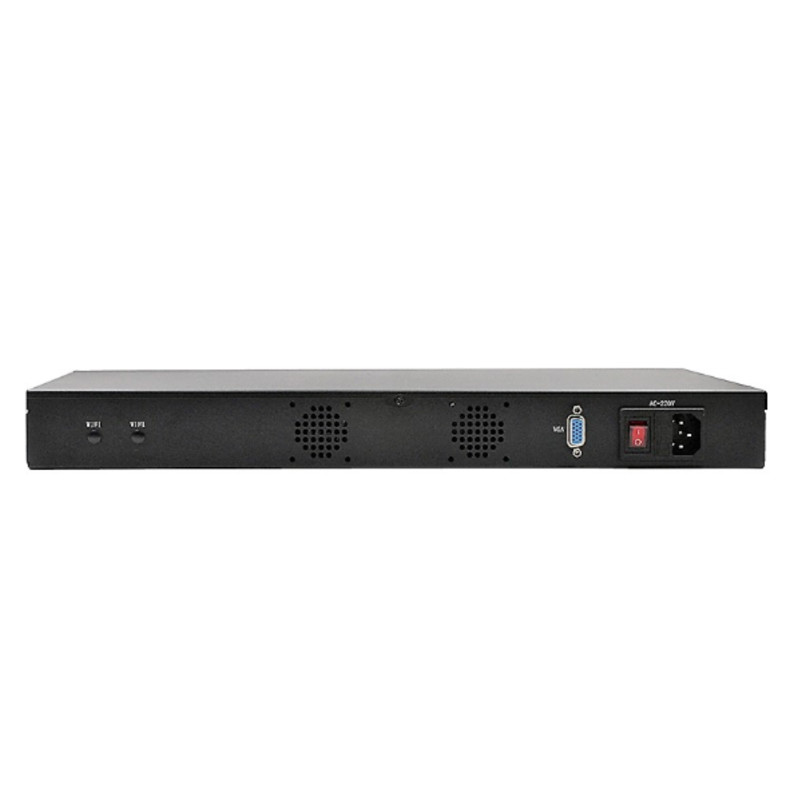

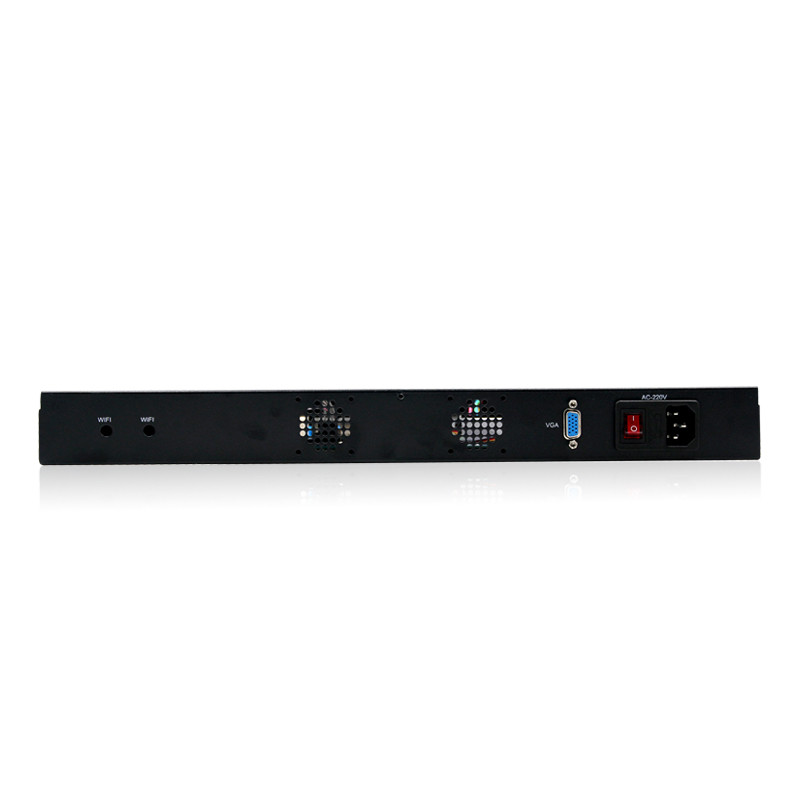

| Back panel interface | 1*VGA |
| 1*AC power connector | |
| 2*WIFI antenna interface | |
| 1*AC POWER ON/OFF | |
| Power Input | AC 110V ~ 220V |
| Operating Temp. | -20°C~+60°C(-4°F~140°F) |
| Storage Temp. | -40°C~+85°C(-40°F~185°F) |
| Working humidity | 0%~90% (non-condensing) |
| Storage humidity | 0%~90% (non-condensing) |
| Vibration | 0.5g rms/5-500HZ/random/operating |
| OS sytem | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. |
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
