| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | PF01104003-BT |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Chassis | Dimension: | 134*126*45.3 Mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Integrated Intel® Bay Trail J1800 / J1900 / E3845 |
| RAM: | 1*DDR3L Max Up To 8GB | Gigabit LAN: | 4 Gigabit LAN |
| Highlight: | Pfsense Mini PC J1900,Pfsense Mini PC E3845,Fanless mini pc 4 lan |
||

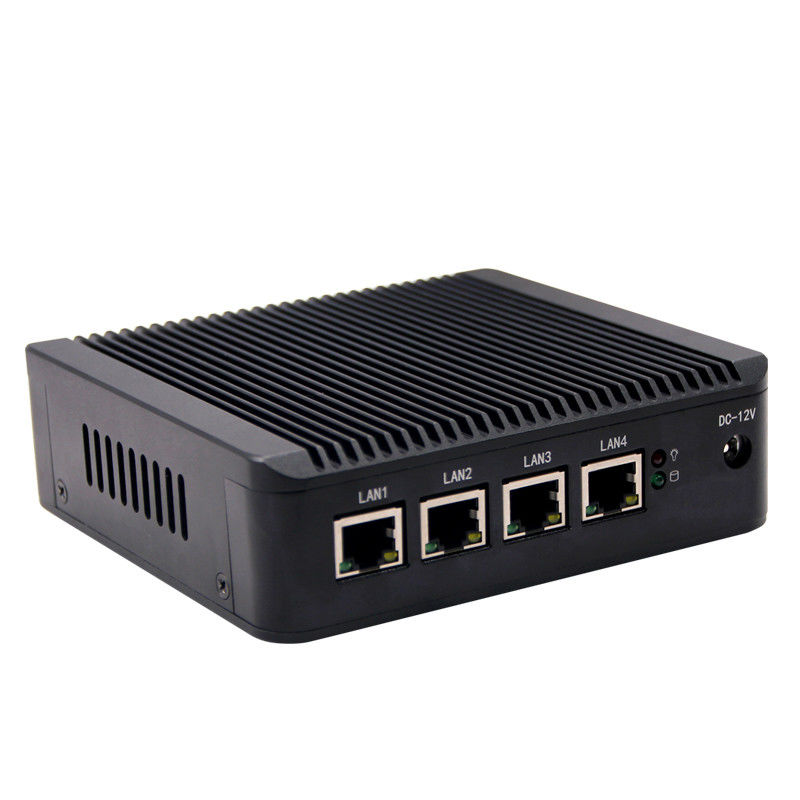

4 ethernet LAN quad core E3845 J1900 fanless firewall appliance mini PC support pFsense
Notice :
When you inquiry , you can choose the following Model :
PF01104003-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor
PF01104003-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor
PF01104003-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor

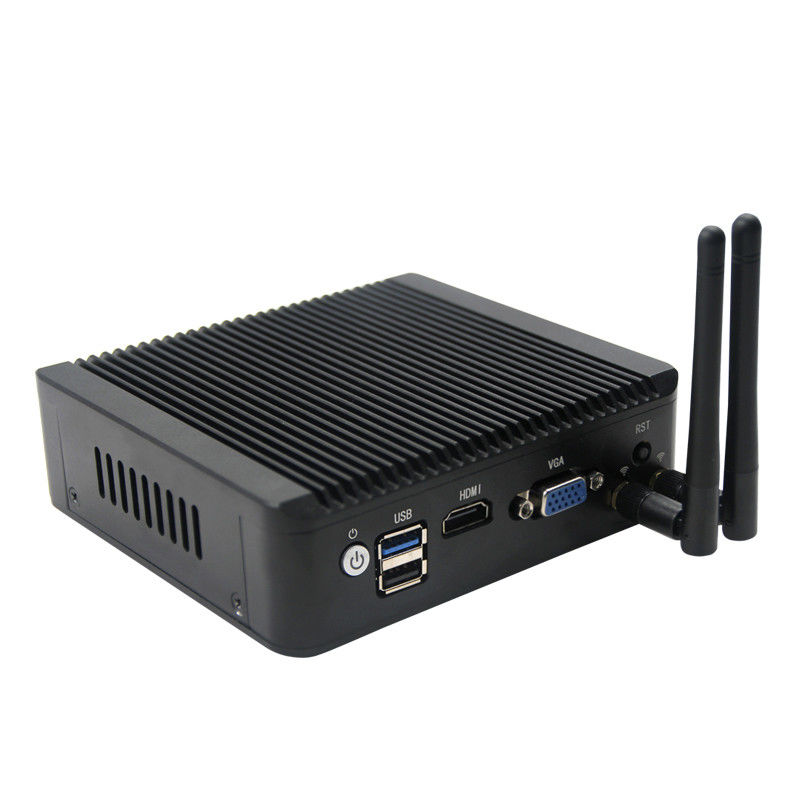

4 ethernet LAN Bay Trail J1800 J1900 E3845 fanless firewall appliance mini PC VGA H-D-M-I support pFsense
Key Features
Integrated Intel® Bay Trail J1800 / J1900 / E3845
Single channel DDR3L 1066/1333MHz max up to 8GB
1* SATAII ports
1*Mini-PCIe M-SATA Scoket
Onboard 32/64/128G EMMC chip(Optional);
1*HDMI
1*VGA
1*USB3.0
1*USB2.0
4*RJ45 Gigabit Lan
Single input DC power,DC12V
Dimension: 134*126*45.3 mm
Fanless Design,Noiseless design
Aluminium chassis
Specifications
| Chassis | Color | Black | |
| Dimension | 134*126*45.3 mm | ||
| Material | High-quality pure aluminum mini pc case | ||
| Platform | Processor |
Integrated Intel® Bay Trail J1800 / J1900 / E3845 |
|
| Chipset | Baytrail-D/I/M processor | ||
| Video | Graphics |
Intel HD Graphics 1*H-D-M-I Resolution maximum 1920x1080 1*VGA Resolution maximum 2048x1536 |
|
| Memory | Technology framework | Singel channel DDR3L 1066/1333/1600MHz max to 8GB | |
| RAM socket | 1 *DDR3 SODIMM 204 Socket | ||
| Storage | SATA | 1*SATAII connector, Maximum transmission rate 3Gb/s | |
| M-SATA | 1*Mini-PCIe M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s | ||
| eMMC | On board 32/64/128G EMMMC | ||
| Network | Ethernet | 4*Intel I211AT high performance Gigabit Ethernet Port,RJ45 Port | |
| WiFi | Support | ||
| Input/Output Interface | Ports |
4*I211 Gigabit Ethernet 1*Power Indicator 1*Hard disk indicator 1*DC Power supply interface
1*Power switch (with indicator light) 1*Reset Button 1*HDMI 1*VGA 1*USB2.0 1*USB3.0 |
|
| Expansion | Mini PCIe | 1*MINI-PCIE socket,can add wifi,3G module(only support USB Signal Equipment) | |
| Cooling | Fanless Design,Noiseless design | ||
| Power Supply | Power type | Single-input DC power supply, DC12V power supply | |
| WORKING ENVIRONMENT | Operating temperature | -20℃ ~ +60℃ | |
| storage temperature | -40℃ ~ +85℃ | ||
| Working humidity | 0% ~ 90% relative humidity, no condensation | ||
| Storage humidity | 0% ~ 90% relative humidity, no condensation | ||
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | ||
About RMA
1--Warranty 1 year
2--If buyer confirm the item can`t work well due to the non-artificial factors,buyer can return it to our company. Buyers should keep it with proper packaging.
3--Buyers are responsible for return to china freight cost .
4--Seller will repair item and ship the repaired one to buyer,seller will pay the shipping cost from China to Buyer address.
5--Please contact us firstly before returning defective goods by email.
