| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10406003L-10TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Alloy | Dimension: | 177mm*121mm*54mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Intel® I7-10510U Quad Core 1.8G Hz |
| RAM: | Dual Slot DDR4 Memory | Gigabit LAN: | 6 Gigabit LAN |
| COM Port: | 1* CISCO Standard RS232 Serial | Power Supply: | DC 12V 4A Power Supply |
| Highlight: | I7-10510U Firewall PC,I5-10210 Firewall PC,Fanless Mini Computer Quad Core |
||
Quad core i5-10210 i7-10510U 6 Gigabit LAN pFsense firewall PC appliance soft router Fanless mini computer
Notice :
When you inquiry , you can choose the following Model :
BF10406003L-10TH-I3 , Integrated 10th gen Intel® Core™ Comet Lake i3-10110U 2 cores 4 threads 2.1~4.1Ghz
BF10406003L-10TH-I5 , Integrated 10th gen Intel® Core™ Comet Lake i5-10210U 4 cores 8 threads 1.6~4.2Ghz
BF10406003L-10TH-I7 , Integrated 10th gen Intel® Core™ Comet Lake i7-10510U 4 cores 8 threads 1.8~4.9Ghz
Intel® 10th Gen Comet Lake-U i3-10110 / i5-10210U / i7-10510U 6 Gigabit LAN pFsense firewall PC appliance soft router Fanless mini computer
Key Features
Integrated Intel® i7-10510U quad core 1.8G hz processor
Integrated Intel® UHD Graphics
Support Dual slot DDR4 memory
Supports 1*2.5 inch hard drive
Support 1*MSATA SSD expansion
1* CISCO standard RS232 serial
6*RJ45 Gigabit Lan
4*USB3.0
1* H-D-M-I display output
DC 12V 4A power supply

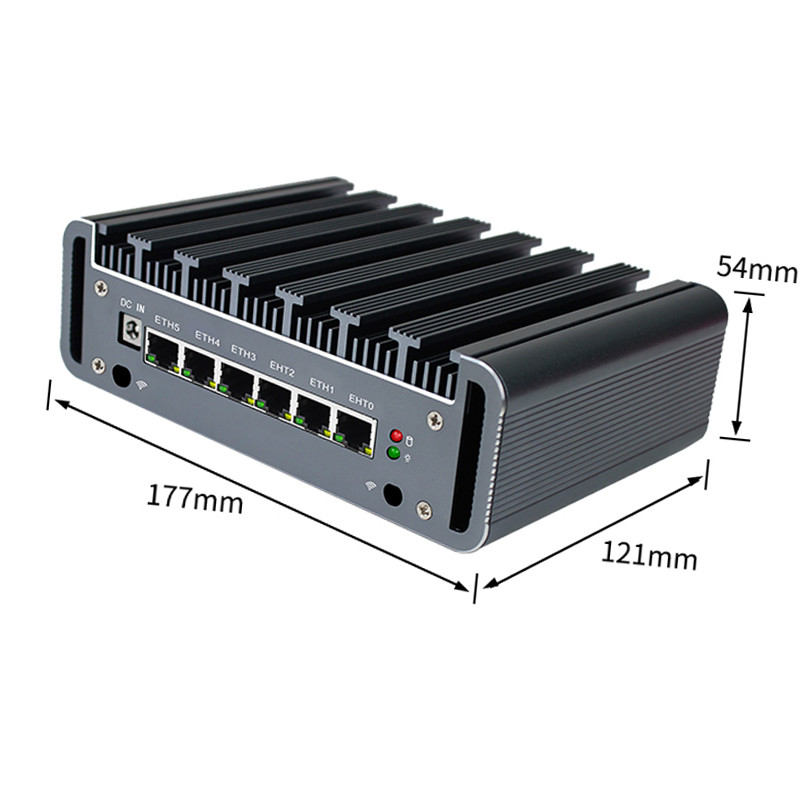

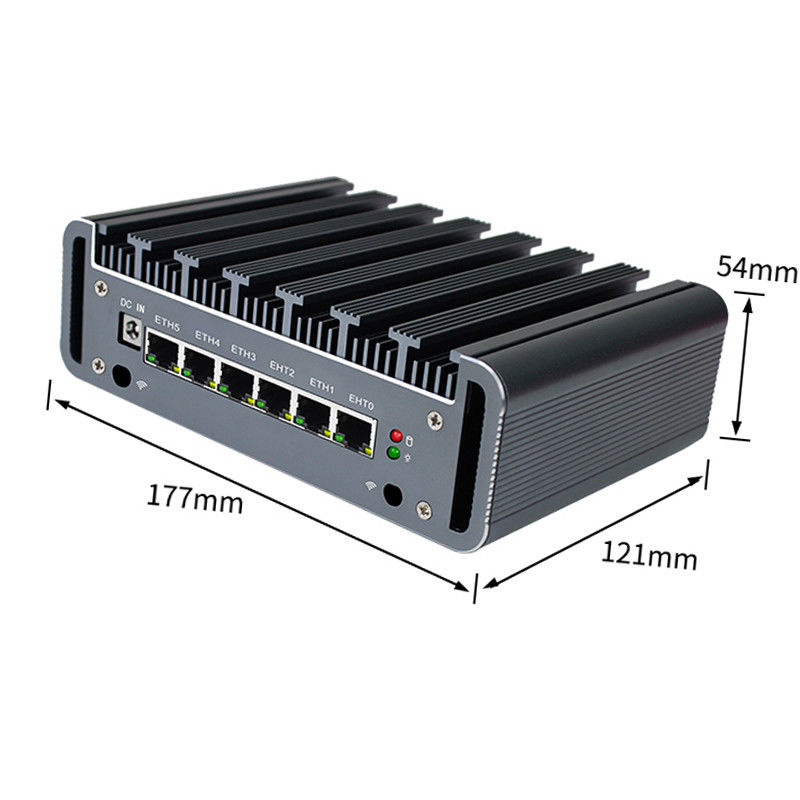

Dimension: 177mm*121mm*54mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF10406003L-10TH-I7 | |
| Chassis | Color | Black |
| Dimension | 177mm*121mm*54mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor |
Integrated Intel® i7-10510U Quad core 8 threads 1.8Ghz processor TDP 15W Max Turbo Frequency 4.9Ghz |
| Chipset | Formerly Comet Lake | |
| Graphics | Intel® UHD Graphics support 1*H-D-M-I display output | |
| Storage | Memory | Support Dual slot DDR4 memory 2666 MHz |
| HDD | supports 1* 2.5 inch hard drive | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel i211 chip 6*RJ45 GLAN |
| WiFi | N/A | |

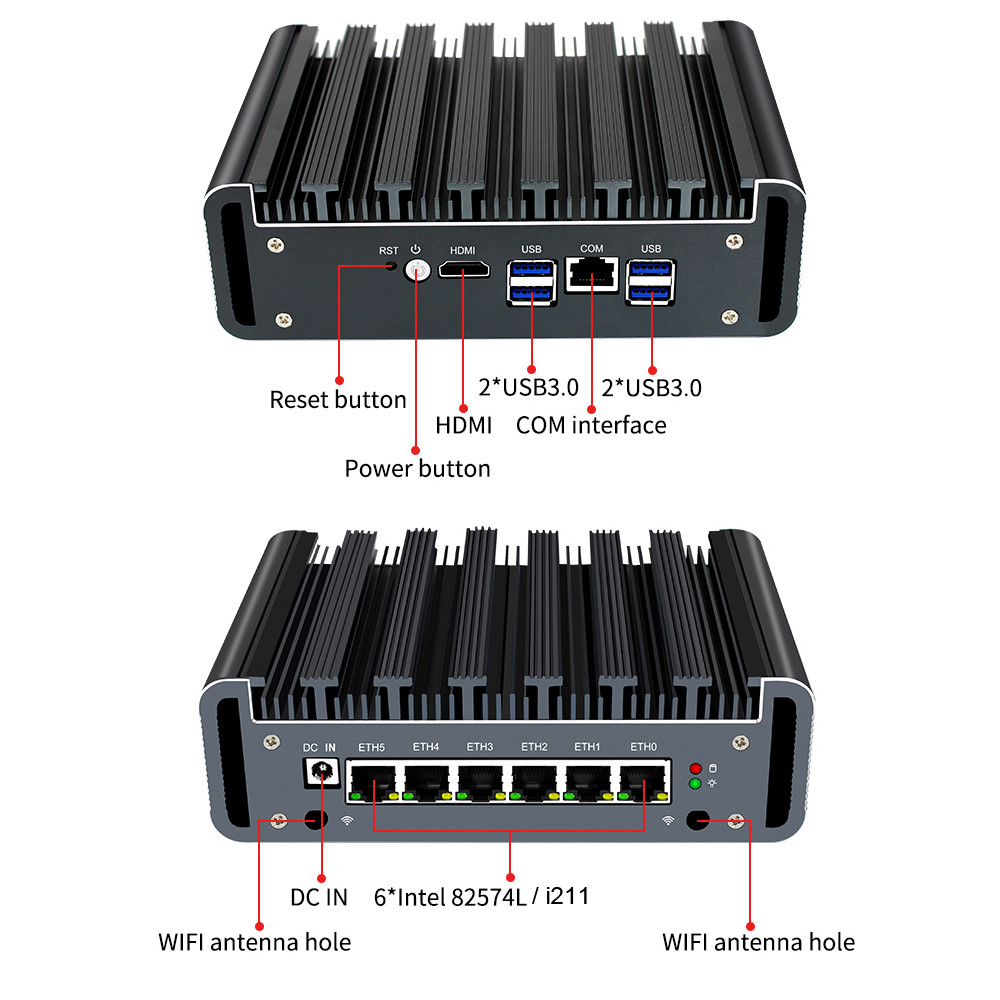

| Interface | Front I / O | 1*Reset button |
| 1*power button | ||
| 1* CISCO standard RS232 serial | ||
| 4*USB3.0 | ||
| 1* H-D-M-I display output | ||
| Back I / O | 1*Power adapter interface | |
| 6*RJ45 Gigabit Lan | ||
| Expansion | Mini PCIe | Support 1 mini PCIE channel (WIFI / Bluetooth for optional) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
