| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF22205003-N5105 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Alloy Chassis | Dimension: | 188mm*120mm*50mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron® Processor N5105 Quad Core |
| RAM: | 1 X DDR4 | Gigabit LAN: | 5 Gigabit LAN |
| Serial Ports: | 2*RS232 | ||
| Highlight: | Quad Core Pfsense Mini Pc,N5105 Pfsense Mini Pc |
||
N5105 quad core 5 * 2.5G NICs AES NI pfsense network security firewall pc appliance desktop mini computer
Key Features
Integrated Intel® Celeron® Processor N5105 quad core 4 threads 2.0~2.9G hz processor
1 x DDR4 maximum 2933MHz up to 16GB
1*SATA3.0
1*MSATA SSD
5*INTEL i225 2.5G NAA LAN , Lan2~Lan5 support POE function
2*RS232
2*USB3.0, 2*USB2.0
1* H-D-M-I
1* VGA
DC 12V 5A power supply

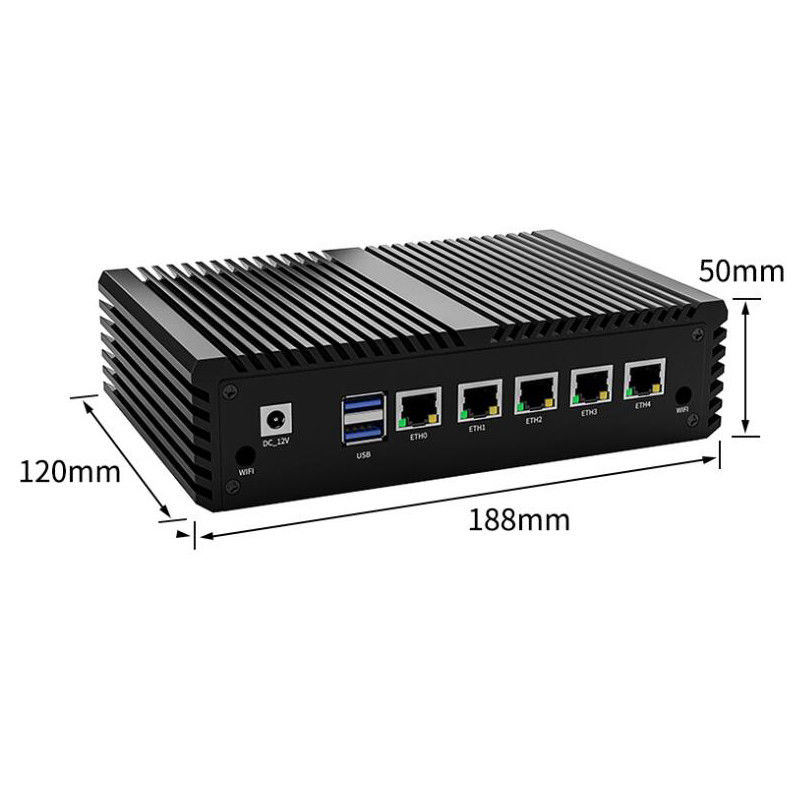

Dimension: 188mm*120mm*50mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF22205003-N5105 | |
| Chassis | Color | Black |
| Dimension | 188mm*120mm*50mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor | Integrated Intel® Celeron® Processor N5105 quad core 4 threads 2.0~2.9G hz processor |
| Chipset | Jasper Lake series chipset | |
| Graphics |
Integrated Intel® UHD Graphics 1*H-D-M-I resolution maximum 1920*1080@60mhz 1*VGA resolution maximum 1920*1080@60mhz |
|
| RAM | Memory | Suport single channel SODIMM DDR4 maximum 2933MHz up to 16GB |
| Storage | SSD | Support 1*MSATA SSD expansion |
| SATA | 1*SATA3.0 | |
| Audio | Audio | N/A |
| Network | Ethernet |
5*INTEL i225 2.5G NAA LAN (Network auto-Adaptability) Support WOL (Wake-on-line) Lan2~Lan5 support POE function |
| WiFi | Support mini- PCIe Wifi function | |
| 4G network | 1*sim slots Support 4G function | |

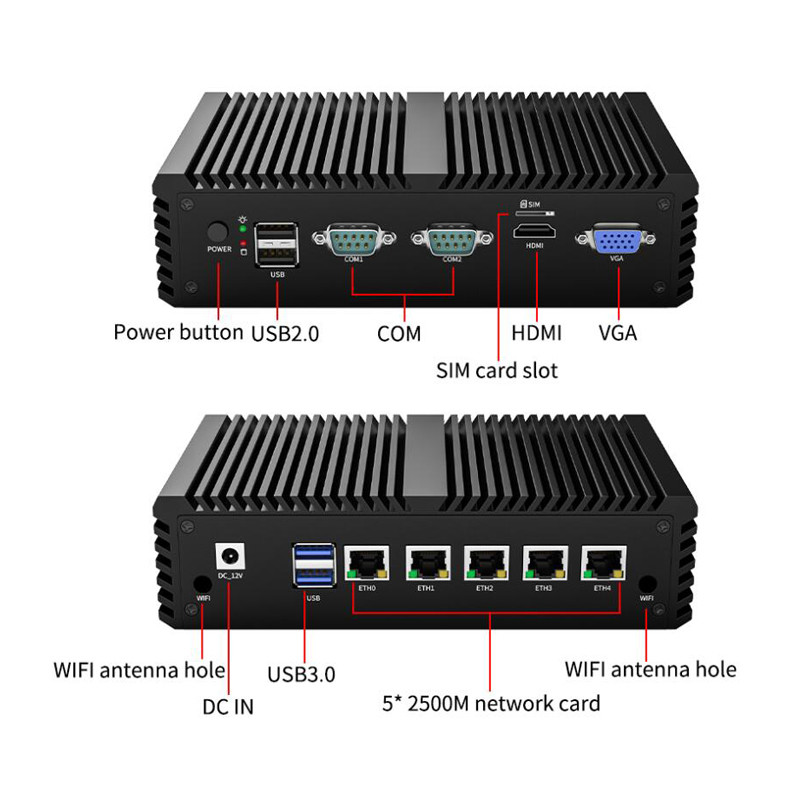

| Interface | Front I / O | 1*power button |
| 2* COM | ||
| 2*USB2.0 | ||
| 1*VGA | ||
| 1* H-D-M-I | ||
| 1*SIM slot | ||
| Back I / O | 1*DC Power adapter interface | |
| 5*INTEL i225 2.5G LAN | ||
| 2*USB3.0 | ||
| 1*DC 12V interface | ||
| 2*WIFI antenna interface | ||
| Expansion | Mini PCIe | Support 1 mini PCIE (either wifi or 4G) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 5A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
