| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF12004004-D525 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis Material: | High Quality Galvanized Steel Sheet | Size: | 210mm*200mm*45mm |
|---|---|---|---|
| Chassis Color: | White | CPU: | Atom® D525 Dual Core |
| RAM: | 1*SO-DIMM DDR3 | Gigabit LAN: | 4 Gigabit LAN |
| Power Supply: | DC 12V 5A Power Supply | ||
| Highlight: | Soft Router Firewall PC,4 Gigabit LAN Firewall PC,Desktop Mini Pc D525 |
||

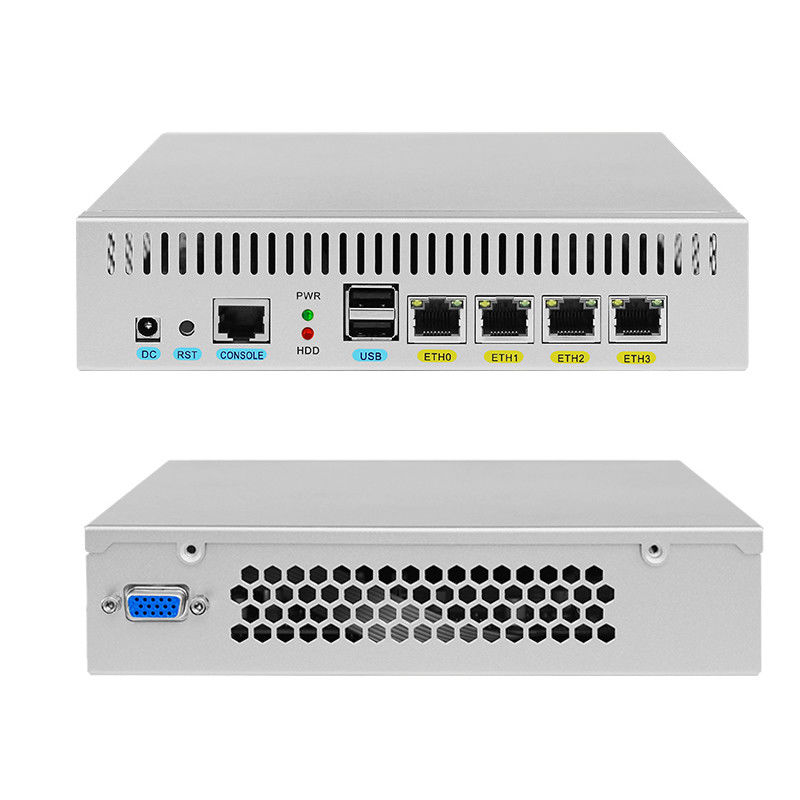

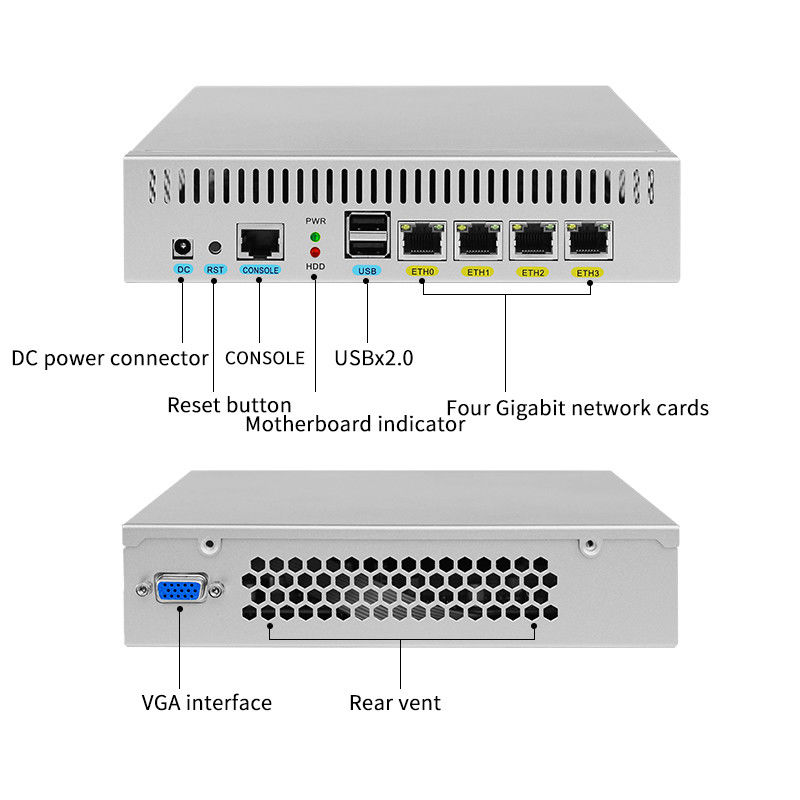

Desktop mini pc D525 4 Gigabit LAN firewall PC appliance pFsense soft router
Key Features
High quality galvanized steel sheet
Intel Atom® D525 dual core 4 threads 1.8GHz processor
Support 1*SO-DIMM DDR3 800mhz, Max.4GB
Support 1*MSATA SSD expansion
1* CISCO standard serial port
2* USB2.0
4* RJ45 Gigabit Ethernet Port
1* VGA display output
DC 12V 5A power supply
Dimension : 210mm*200mm*45mm
Specifications
| Model No. | VGS-BF12004004-D525 | |
| Chassis | Color | Silver |
| Dimension | 210mm*200mm*45mm | |
| Material | High quality galvanized steel sheet | |
| Installation | Desktop | |
| Platform | Processor | Integrated Intel Atom® D525 dual core 4 threads 1.8GHz processor |
| Chipset | ||
| Graphics |
Integrated Intel HD Graphics support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM,DDR3 800mhz, Max.4GB |
| HDD | N/A | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel 82583V 4*RJ45 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB2.0 | |
| LAN | 4* RJ45 Gigabit Ethernet Port | |
| Power Switch | 1*Power switch | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* ATX Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 5A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense,iKuai, LEDE, Openwrt, Panabit, Smart6 etc. | |
FAQ
Q: How long would the warranty period be?
A: 1 year warranty. It can be prolonged with extra fee.
Q: Is logo customization available?
A: Laser print is free.
Q: What is the minimum order quantity (MOQ)?
A: 1 piece.
Q: Which term for after sales?
A: Return and replacement
