| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF00204003-J1900 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Aluminium Alloy | Dimension: | 137mm*127mm*40mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Intel® Celeron J1900 Quad Core |
| RAM: | 1*DDR3L 1333Mhz | Gigabit LAN: | 4 Gigabit LAN |
| Highlight: | Industrial Fanless Firewall PC,Firewall PC J1900,PFsense Industrial Fanless PC |
||

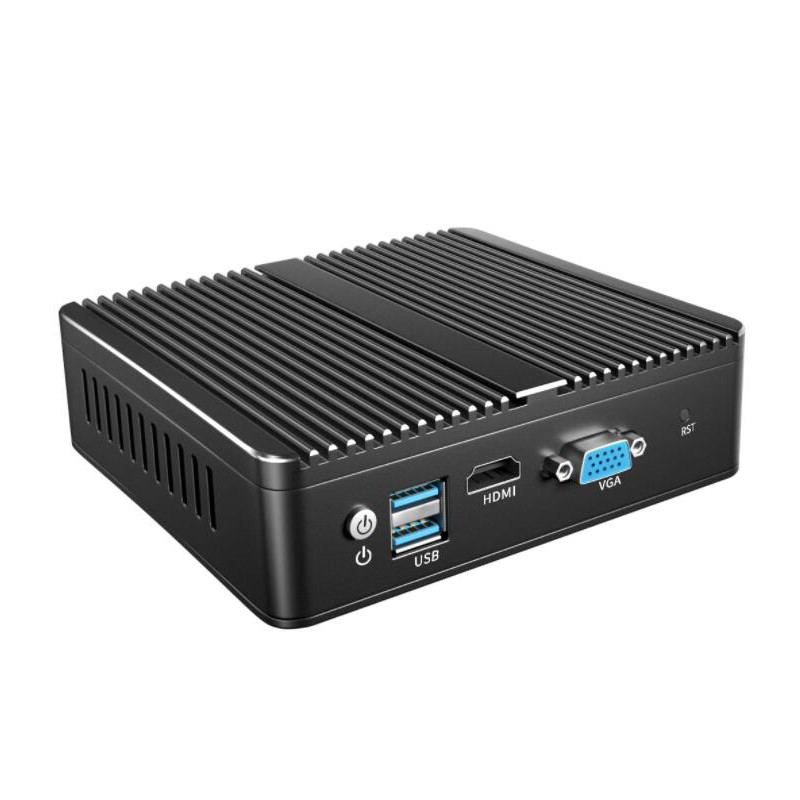

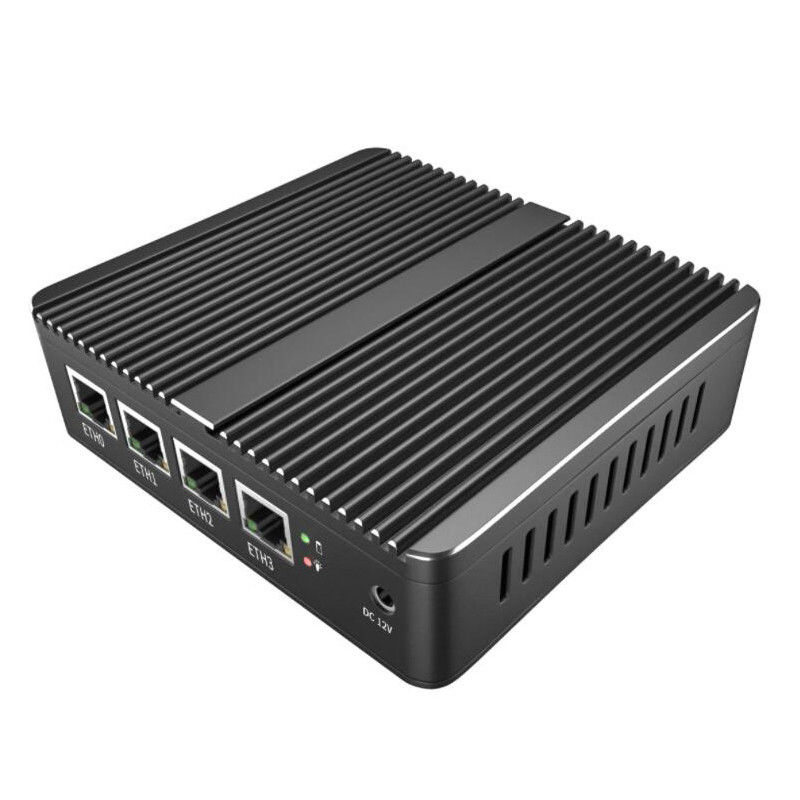

Industrial computer fanless mini pc J1900 4 Gigabit LAN firewall PC appliance soft router support pFsense
Key Features
Integrated Intel® Celeron J1900 quad core 2.0G hz processor
Integrated Intel® HD Graphics
Support 1*DDR3L 1333Mhz
Support 1*MSATA SSD expansion
4*RJ45 Gigabit Lan
2*USB3.0
1* H-D-M-I display output
1* VGA
DC 12V 4A power supply
Dimension: 137mm*127mm*40mm
aluminium alloy chassis
Fanless design without noise
Specifications
| Model No. | BF00204003-J1900 | |
| Chassis | Color | Black |
| Dimension | 137mm*127mm*40mm | |
| Material | aluminium alloy chassis | |
| Platform | Processor |
Integrated Intel® Celeron J1900 quad core 4 threads 2.0G hz processor Burst Frequency 2.42 GHz |
| Chipset | SOC | |
| Graphics |
Intel® HD Graphics support 1*H-D-M-I +1*VGA |
|
| Storage | Memory | Support 1*DDR3L 1333Mhz |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel i211AT 4*RJ45 GLAN |
| WiFi | N/A | |
| Interface | Front I / O | 1*Reset button |
| 1*power button | ||
| 2*USB3.0 | ||
| 1*VGA | ||
| 1* H-D-M-I display output | ||
| Back I / O | 1*DC Power adapter interface | |
| 4*RJ45 Gigabit Lan | ||
| Expansion | Mini PCIe | Support 1 mini PCIE channel (WIFI / Bluetooth for optional) |
| Cooling | Fanless design without noise | |
| Power Supply | Input | AC 110V ~ 240V |
| Output | DC 12V 4A power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1.We can provideOEM/ODMservices .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty
