| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BFT8205001-H81 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | Galvanized Steel Sheet Chassis | Dimension: | 482mm*250mm*44.5mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Support LGA1150 Intel® 4th Gen I3 / I5 / I7 |
| Memory: | Support 2*SO-DIMM, DDR3 Max 8GB | Gigabit LAN: | 5* RJ45 Gigabit Ethernet Port |
| COM: | 10 * COM |
1U chassis H81 LGA1150 5 Gigabit LAN 10 COM industrial server firewall computer soft router support pFsense
Key Features
Support LGA1150 Intel® 4th Gen i3 / i5 / i7 processor
H81 chipset
Support 2*SO-DIMM, DDR3 1066/1333 /1600 MHz max 8GB
Support 2* 2.5”/3.5” SATA HDD bay

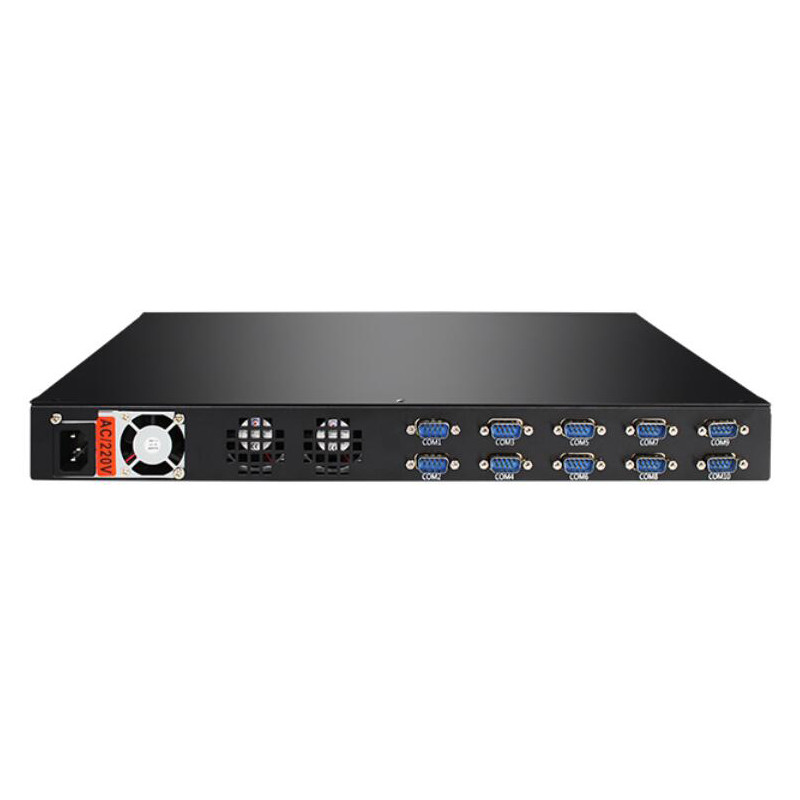

10* RS232 serial port
8* USB2.0, 2* USB3.0
5* RJ45 Gigabit Ethernet Port
1* VGA
1* H-D-M-I
High quality galvanized steel sheet chassis

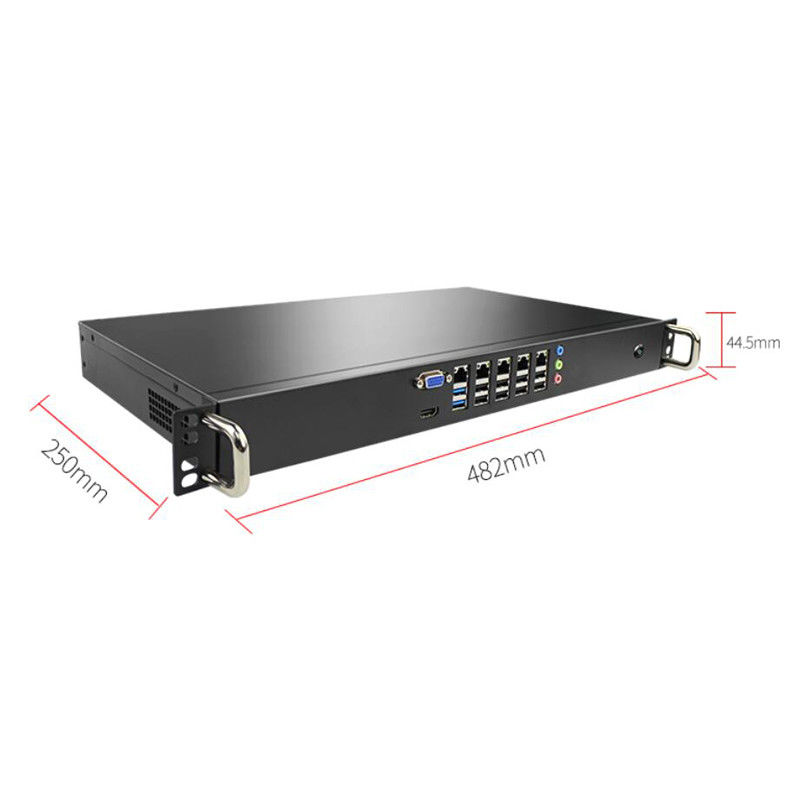

Dimension: 482mm*250mm*44.5mm
1U rackmount Standard chassis
Specifications
| Model No. | BFT8205001-H81 | |
| Chassis | Color | Black |
| Dimension | 482mm*250mm*44.5mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality galvanized steel sheet chassis | |
| Platform | Processor | Support LGA1150 Intel® 4th Gen i3 / i5 / i7 processor |
| Chipset | Intel® H81 | |
| Graphics |
Integrated HD Graphics support 1*VGA+1*H-D-M-I display output |
|
| Storage | Memory | Support 2*SO-DIMM, DDR3 1066/1333 /1600 MHz max 8GB |
| HDD | Support 2* 2.5”/3.5” SATA HDD bay | |
| Audio | Audio | Realtek ALC662 HD audio |
| Network | Ethernet | Onboard 5*Intel I211 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 10* RS232 serial port |
| USB | 8* USB2.0, 2* USB3.0 | |
| LAN | 5* RJ45 Gigabit Ethernet Port | |
| Display |
1* VGA (Resolution max 1920*1200@60Hz) 1* H-D-M-I (Resolution max 4096*2304@24Hz) |
|
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | 24+4pin ATX power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
