| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | F12004006-D2500 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Galvanized Steel Sheet | Dimension: | 440mm*250mm*45mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Atom® Dual Core 2 Threads D2500 |
| Memory: | 1*SO-DIMM,DDR3 | Gigabit LAN: | 4* Gigabit LAN |
| COM: | 1* CISCO Standard Serial Port |

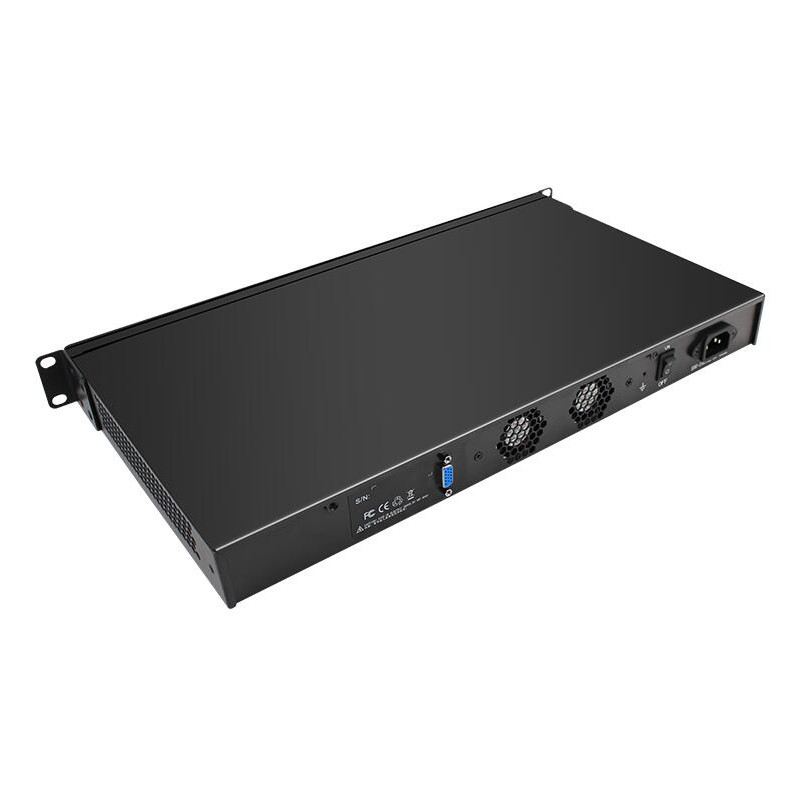

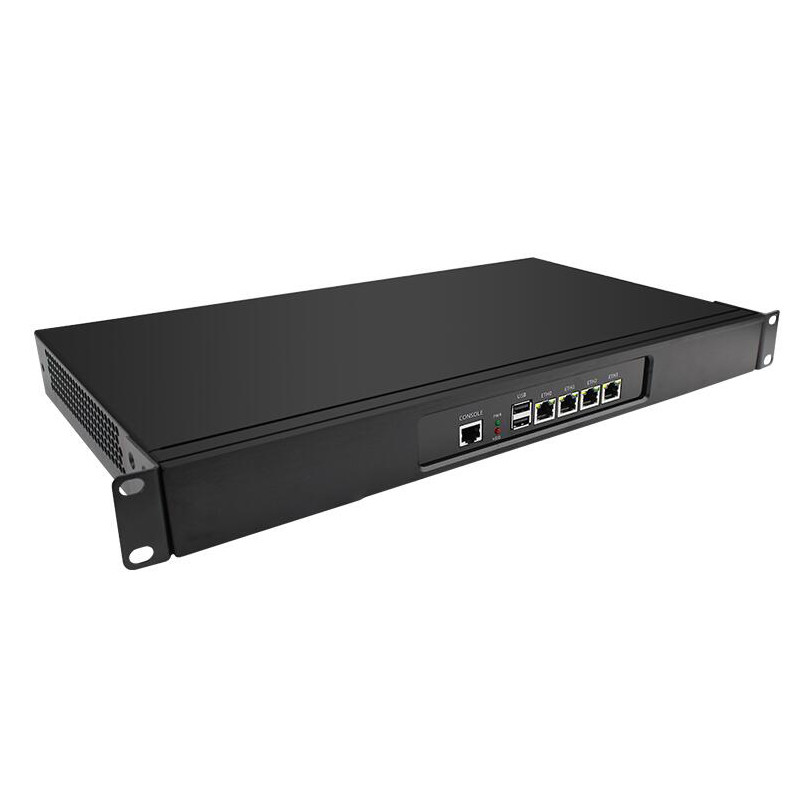

1U rackmount D2500 4 Gigabit LAN firewall PC appliance soft router support pFsense
Key Features
Integrated Intel Atom® dual core 2 threads D2500 1.86Ghz
Support 1*SO-DIMM,DDR3 800/1066MHz, Max.4GB
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” HDD bay
1* CISCO standard serial port
2* USB2.0
4* RJ45 Gigabit Ethernet Port
1* VGA display output
High quality galvanized steel sheet
Dimension: 400mm*250mm*45mm
1U rackmount Standard chassis
Specifications
| Model No. | F12004006-D2500 | |
| Chassis | Color | Black |
| Dimension | 400mm*250mm*45mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Platform | Processor | Integrated Intel Atom® dual core 2 threads D2500 1.86Ghz |
| Chipset | ||
| Graphics |
Integrated Graphics support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM,DDR3 800/1066MHz, Max.4GB |
| HDD | Support 1* 2.5”/3.5” HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel 82583V chip 4*RJ45 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB2.0 | |
| LAN | 4* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
