| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10416401-B365 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | 1U High Quality Aluminium Sheet Chassis | Dimension: | 440mm*284mm*46mm |
|---|---|---|---|
| Chassis Color: | Black | Processor: | Intel® Core 8th/9th Gen I3/i5/i7 |
| Chipset: | Intel® B365 | RAM: | 2* DDR3 Up To 32GB |
| Gigabit LAN: | 16* RJ45 Gigabit Ethernet Port | SFP: | 4*Fiber Optical SFP |
| COM Port: | 1* CISCO Standard Serial Port |

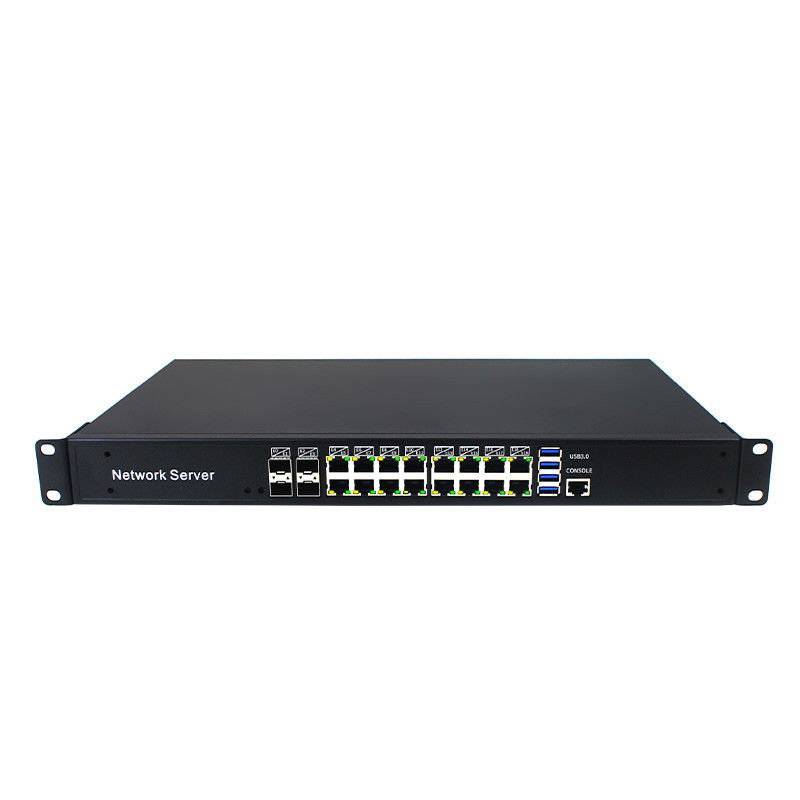

1U rackmount Intel® B365 16 Gigabit LAN 4 Gigabit fiber optical SFP firewall PC appliance soft router support pFsense Mikrotik
Key Features
Support LGA1151 Intel® core 8th/9th Gen i3/i5/i7 /Pentium/Celeron processor
Intel® B365 chipset
Integrated HD Graphics
Support 2*DDR3 1066/1333/1600MHZ maximum to 32GB
Support 1* 2.5”/3.5” SATA HDD bay
Support 1*MSATA SSD
1* CISCO standard serial port
4* USB3.0
16* RJ45 Gigabit Ethernet Port
4* Fiber optical SFP
1* VGA output
1*H-D-M-I output
AC 110V ~ 240V ATX power supply

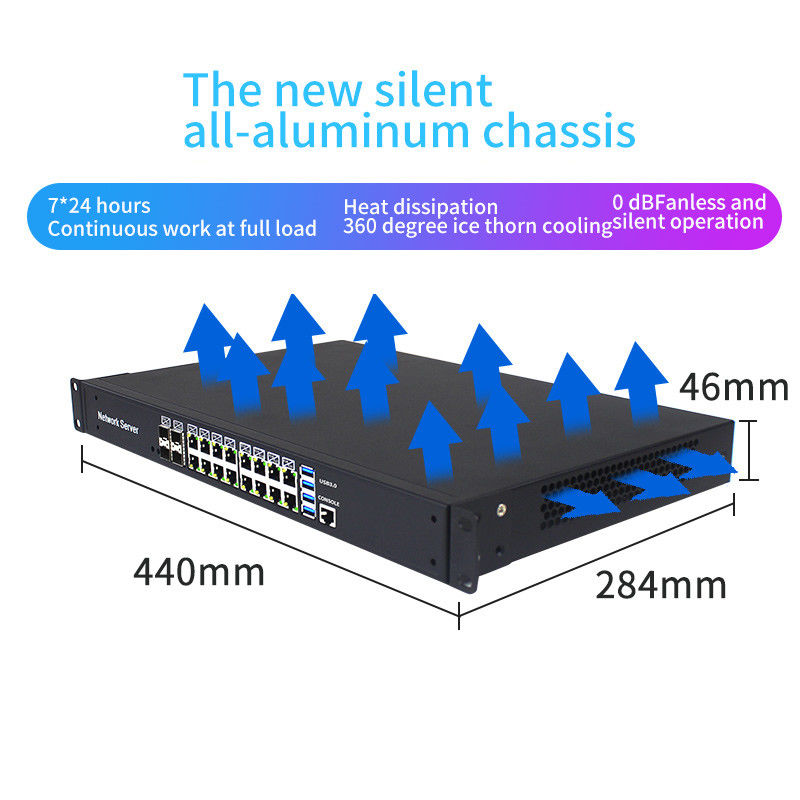

Dimension : 440mm*284mm*46mm
1U rackmount Standard chassis
High quality aluminium sheet chassis
Specifications
| Model No. | BF10416401-B365 | |
| Chassis | Color | Black |
| Dimension | 440mm*284mm*46mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor | Support LGA1151 Intel® core 8th/9th Gen i3/i5/i7 /Pentium/Celeron processor |
| Chipset | Intel® B365 | |
| Graphics | Integrated HD Graphics | |
| Storage | Memory | Support 2*DDR3 1066/1333/1600MHZ maximum to 32GB |
| HDD | Support 1* 2.5”/3.5” SATA HDD bay (4*SATA interface) | |
| SSD | Support 1*MSATA SSD | |
| Audio | Audio | ALC662 |
| Network | Ethernet |
Onboard 16*Intel WG82574 Onboard 4*i350 Fiber optical SFP |
| Expansion | Mini PCIe |
1* MINI-PCIE support M'SATA 1* MINI-PCIE support WIFI |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 4* USB3.0 | |
| LAN |
16* RJ45 Gigabit Ethernet Port 4* Fiber optical SFP |
|
| Display |
1* VGA output 1*H-D-M-I output |
|
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
