| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10208201-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Aluminium Sheet Chassis | Dimension: | 430mm*280mm*45mm |
|---|---|---|---|
| Chassis Color: | White | Processor: | Intel®3th Gen I3-3110M / I5-3320M / I7-3520M |
| Memory: | 1*SO-DIMM, DDR3L | Gigabit LAN: | 8* RJ45 Gigabit Ethernet Port |
| SFP: | 2* Gigabit Optical SFP | COM Port: | 1* CISCO Standard Serial Port |
| Highlight: | 2 SFP Firewall PC,1U Firewall PC |
||

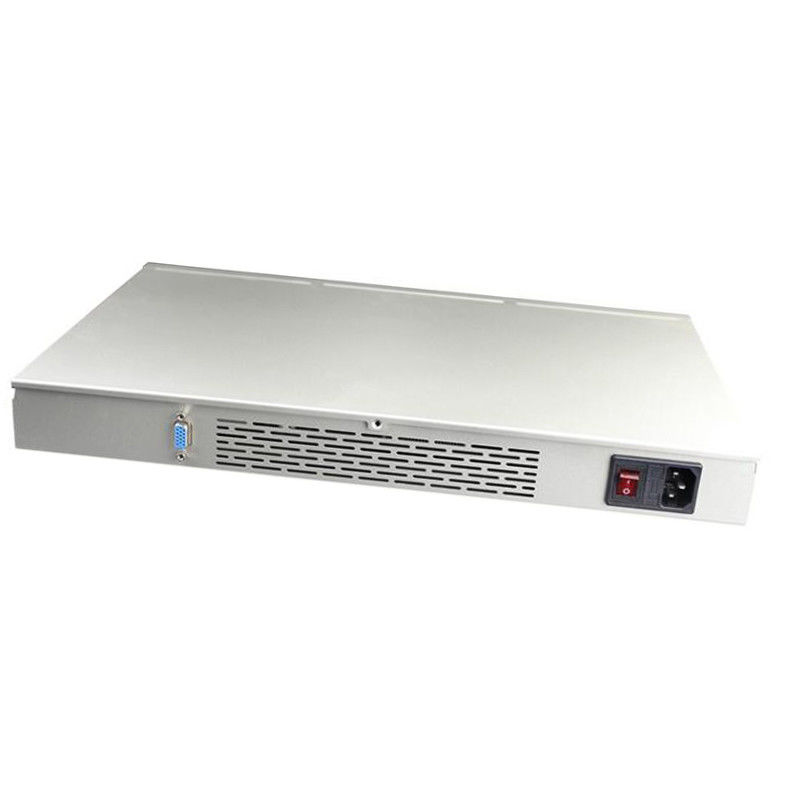

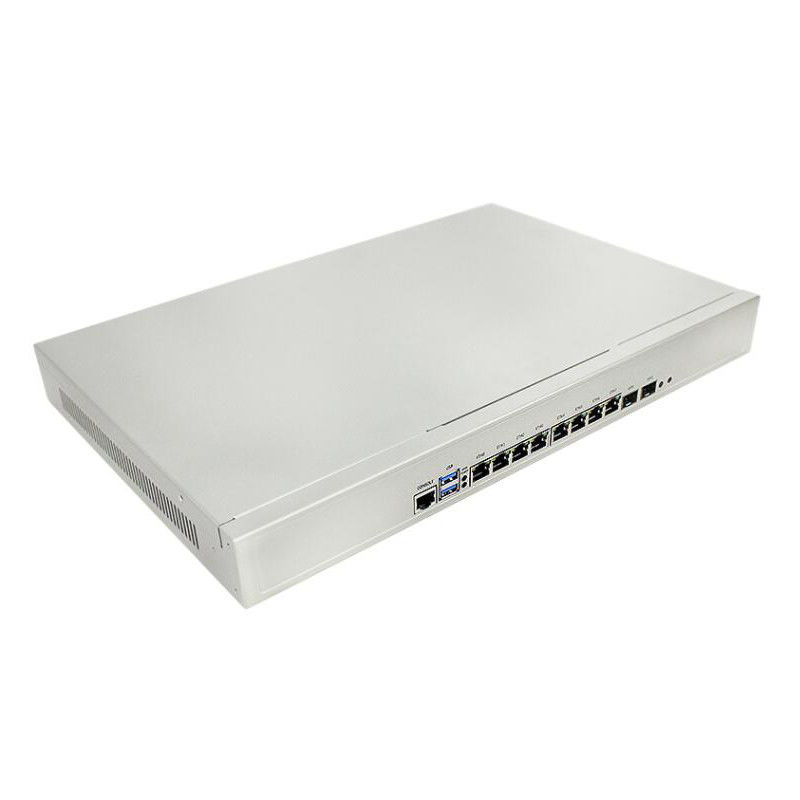

8 Gigabit LAN 2 SFP pFsense firewall PC appliance soft router 1U rackmount Intel®3th Gen i3 i5 i7
Notice :
When you inquiry , you can choose the following Model :
BF10208201-3TH-I3 , Integrated Intel®Core™ Ivy Bridge i3-3110M dual cores 4 threads 2.4Ghz processor
BF10208201-3TH-I5 , Integrated Intel® Core™ Ivy Bridge i5-3320M dual cores 4 threads 2.6~3.3Ghz processor
BF10208201-3TH-I7 , Integrated Intel® Core™ Ivy Bridge i7-3520M dual cores 4 threads 2.9~3.6Ghz Processor
8 Gigabit LAN 2 SFP pFsense firewall PC appliance soft router 1U rackmount Intel®3th Gen i3-3110M / i5-3320M / i7-3520M industrial computer
Key Features
Integrated Intel® Core™3th Gen i3-3110M / i5-3320M / i7-3520M
Integrated HD Graphics 4000
Support 1*SO-DIMM, DDR3L 1333 / 1600MHz max 16GB
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” SATA HDD bay
1* CISCO standard serial port
2* USB3.0
8* RJ45 Gigabit Ethernet Port
2* Gigabit optical SFP
1* VGA display output
High quality aluminium sheet chassis
Dimension: 430mm*280mm*45mm
1U rackmount Standard chassis
Specifications
| Model No. | BF10208201-3TH | |
| Chassis | Color | White |
| Dimension | 430mm*280mm*45mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor |
Integrated Intel® Core™3th Gen i3-3110M / i5-3320M / i7-3520M |
| Chipset | Intel® | |
| Graphics |
Integrated HD Graphics 4000 support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM, DDR3L 1333 / 1600MHz max 16GB |
| HDD | Support 1* 2.5”/3.5” SATA HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet |
Onboard 8*Intel i211 / 82583V GLAN Onboard 2*i350 Gigabit SFP |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.0 | |
| LAN |
8* RJ45 Gigabit Ethernet Port 2* Gigabit optical SFP |
|
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
