| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10208042-C236 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis Material: | 2U Chassis Galvanized Steel Sheet Chassis | Size: | 435mm*400mm*90mm |
|---|---|---|---|
| Chassis Color: | Black | Chipset: | Intel® C236 High Speed Chipset |
| Processor: | Intel® 6/7/8/9th Core® I3/i5/i7/XEON E3-12XX V5 | RAM: | 2* DDR4 |
| Network: | 8* Intel® I211 | SFP: | 4*Intel XL 710-BM2 10G Fiber Interface |
| COM Port: | 1* RJ45 Standard Serial Port | Power Supply: | AC 110V ~ 240V ATX |
Intel® C236 support XEON E3-1225V5 CPU firewall PC appliance 2U rackmount 8 LAN 4 ports 10G SFP fiber optical Industrial computer
Key Features
Support LGA1151 Intel® 6/7/8/9th Core® i3/i5/i7 / XEON E3-12XX V5 processor
Adopt Intel® C236 high speed chipset
Support 2* DDR4 memory slot max up to 64GB
Integrated Intel® HD Graphics
1*HDMI
Support 1*2.5" / 1*3.5’ HDD bay
Support 1*M.2 NVME SSD
8* LAN (Intel i211, 1000/100/10Mbps)
Support 3 group bypass
4*Intel XL 710-BM2 10G fiber interface SFP
1* CISCO standard serial port
2* USB3.0
ATX 110-240V power supply
Dimension : 435mm*400mm*90mm
High quality galvanized steel sheet chassis
2U standard rack mounting method
Specifications
| Model No. | BF10208042-C236 | |
| Chassis | Color | Black |
| Dimension | 435mm*400mm*90mm | |
| Structure | 2U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 2U standard rack mounting method | |
| Platform | Processor | Support LGA1151 Intel® 6/7/8/9th Core® i3/i5/i7 / XEON E3-12XX V5 processor |
| Chipset | Adopt Intel® C236 high speed chipset | |
| Graphics |
Integrated Intel® HD Graphics support 1*HDMI display output |
|
| Storage | Memory | 2* DDR4 memory slot, support 2133/2400Mhz, max up to 64GB |
| HDD | Support 1*2.5" / 1*3.5’ HDD bay (4*SATA3.0 interface) | |
| SSD | Support 1*M.2 NVME SSD | |
| Audio | Audio | N/A |

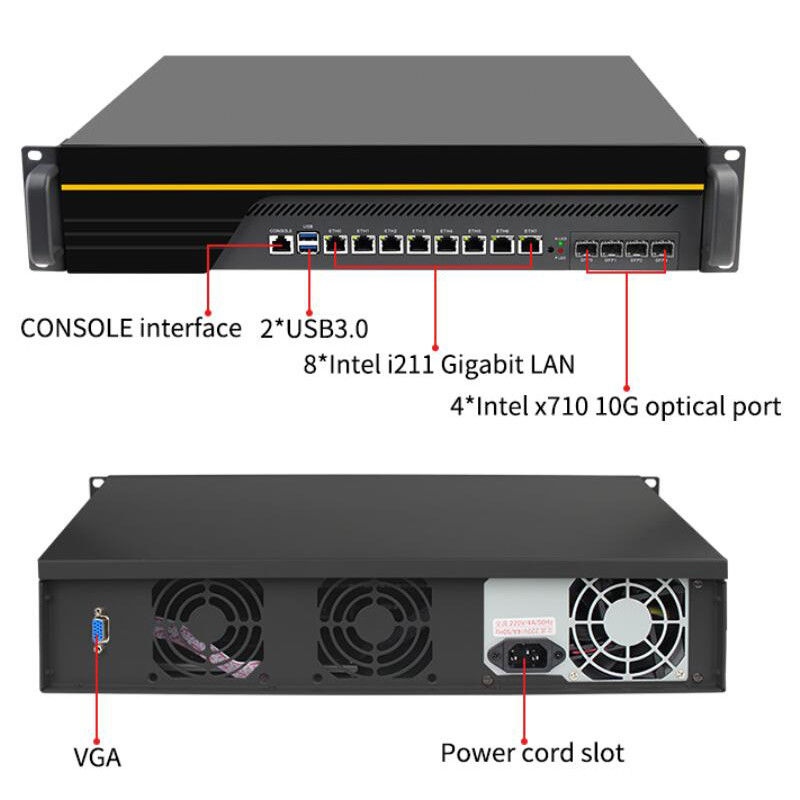

| Network | Ethernet |
8* LAN (Intel i211, 1000/100/10Mbps) Support 3 group bypass 4*Intel XL 710-BM2 10G fiber interface SFP |
| WiFi /4G | 1*Mini PCIe support WIFI / 4G modules (For optional) | |
| Front I /O | Serial Port | 1* CISCO standard serial port console |
| USB | 2* USB3.0 | |
| LAN |
8* RJ45 Gigabit Ethernet Port 4*Intel XL 710-BM2 10G fiber interface SFP |
|
| LED | 1* HDD LED, 1* Power LED | |
| Back I/O | Display | 1*HDMI |
| Power Switch | 1*Power switch | |
| Power Supply | 1* ATX Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Type | ATX power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
FAQ
Q: How long would the warranty period be?
A: 1 year warranty. It can be prolonged with extra fee.

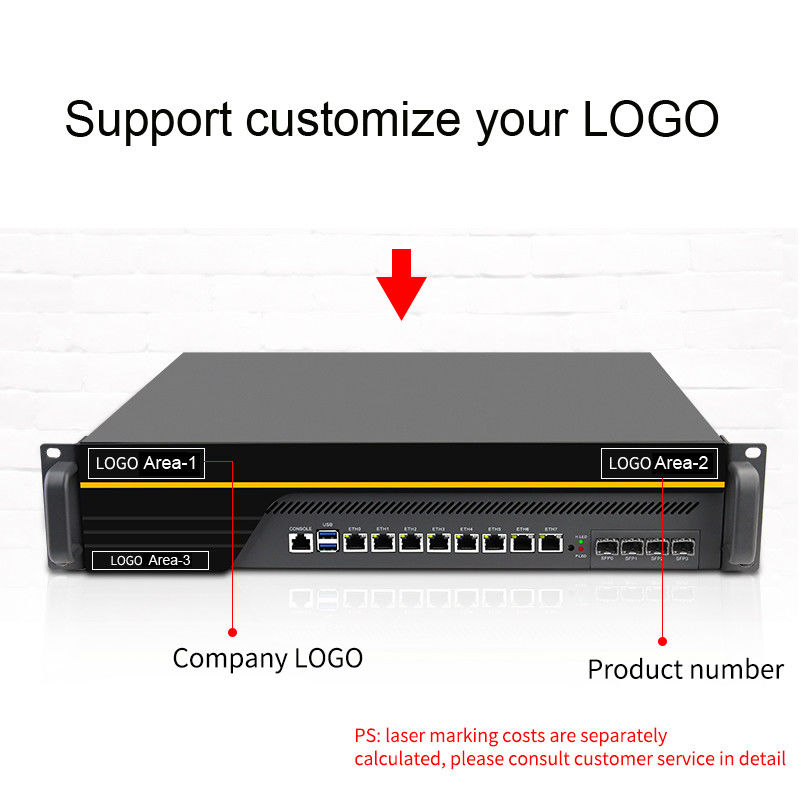

Q: Is logo customization available?
A: We can provide OEM/ODM services . We can print your Logo when you make order more than 50 pieces
Laser print Logo is free.
Q: What is the minimum order quantity (MOQ)?
A: 1 piece.
