| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10208002-H170 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | 2U Chassis Galvanized Steel Sheet Chassis | Dimension: | 435mm*400mm*90mm |
|---|---|---|---|
| Chassis Color: | Black | Chipset: | Intel® H170 High Speed Chipset |
| CPU: | Support Intel® 6/7/8/9th Core® I3/i5/i7 | Memory: | 2* DDR4 |
| Gigabit LAN: | 8 * Gigabit LAN | COM Port: | 1* CISCO Standard Serial Port |

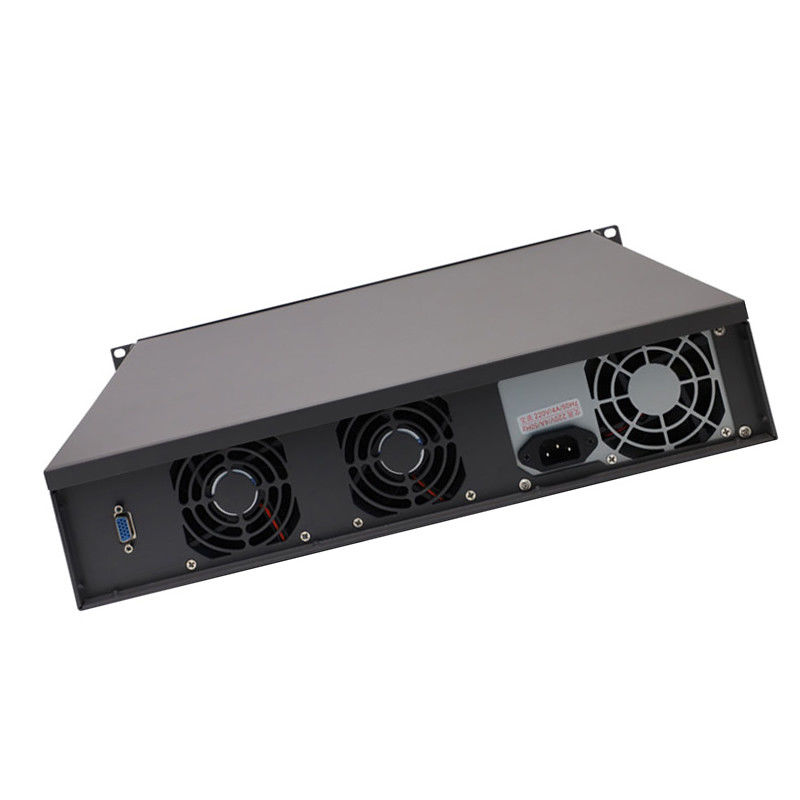

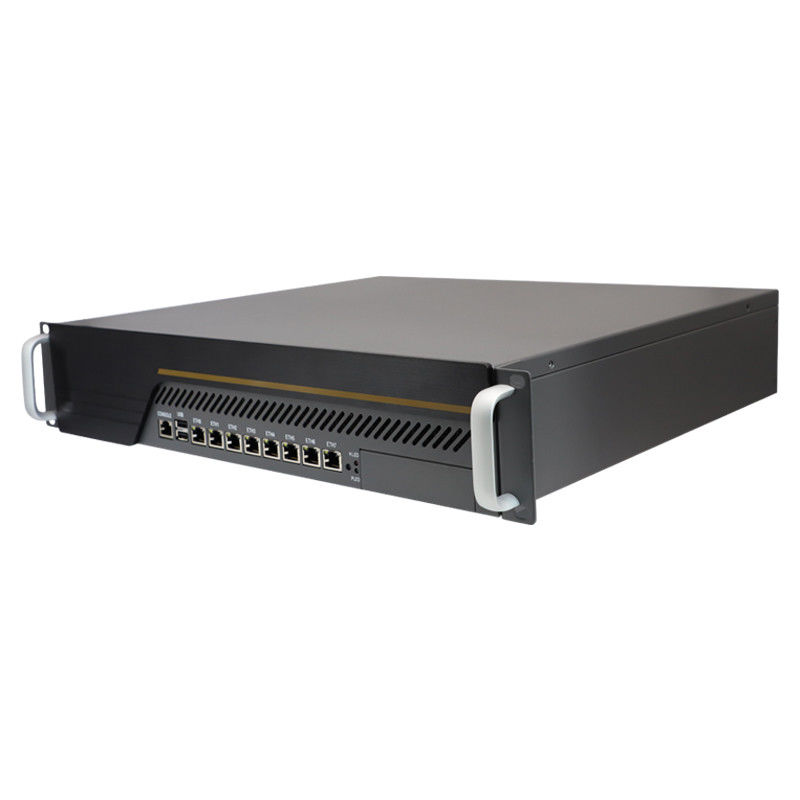

Intel®H170 9th I3 I5 I7 2U rackmount 8 Gigabit LAN Industrial computer firewall PC appliance soft router support pFsense
Key Features
Support LGA1151 Intel® 6/7/8/9th Core® i3/i5/i7 processor
Adopt Intel® H170 high speed chipset
Support 2* DDR4 memory slot max up to 64GB
Integrated Intel® HD Graphics
1*VGA
Support 2*2.5" / 3.5” HDD bay
Support 1*MSATA SSD expansion
8* LAN (Intel i211, 1000/100/10Mbps)
1* CISCO standard serial port
2* USB3.0
AC 110V ~ 240V ATX power supply
Dimension : 435mm*400mm*90mm
High quality galvanized steel sheet chassis
2U standard rack mounting method
Specificationss
| Model No. | BF10208002-H170 | |
| Chassis | Color | Black |
| Dimension | 435mm*400mm*90mm | |
| Structure | 2U Standard chassis | |
| Material | High quality galvanized steel sheet | |
| Installation | 2U standard rack mounting method | |
| Platform | Processor | Support LGA1151 Gen 6/7/8/9th Intel® Core® i3/i5/i7 processor |
| Chipset | Adopt Intel® H170 high speed chipset | |
| Graphics |
Integrated Intel® HD Graphics support 1*HDMI display output |
|
| Storage | Memory | 2* DDR4 memory slot, support 2133/2400/2666MHz, max up to 64GB |
| HDD | Support 2*2.5" / 3.5”HDD bay (3*SATA3.0 interface) | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | 8* LAN (Intel i211, 1000/100/10Mbps) |
| WiFi /4G | 1*Mini PCIe support WIFI / 4G modules (For optional) | |
| Front I /O | Serial Port | 1* CISCO standard serial port console |
| USB | 2* USB3.0 | |
| LAN | 8* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Back I/O | Display | 1*VGA |
| Power Switch | 1*Power switch | |
| Power Supply | 1* ATX Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Type | ATX power supply | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
