| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10208001-3TH |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Aluminium Sheet Chassis | Dimension: | 430mm*280mm*45mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Intel® 3th Gen I3-3217U / I5-3317U / I7-3517U Processor |
| Memory: | 1*SO-DIMM, DDR3 | Gigabit LAN: | 8 * Gigabit LAN |
Notice :
When you inquiry , you can choose the following Model :
BF10208001-3TH-I3 Integrated Intel® Ivy Bridge i3-3217U Dual core 4 threads 1.8Ghz processor
BF10208001-3TH-I5 Integrated Intel® Ivy Bridge i5-3317U Dual core 4 threads 1.7~2.6Ghz processor
BF10208001-3TH-I7 Integrated Intel® Ivy Bridge i7-3517U Dual core 4 threads 1.9~3.0Ghz processor

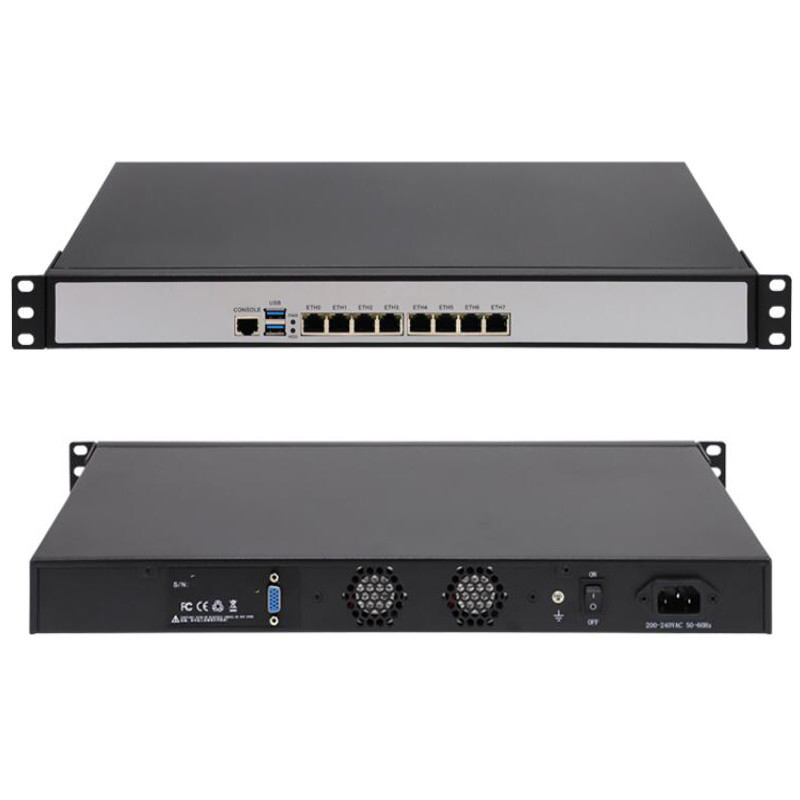

1U rackmount 3th gen i3-3217U / i5-3317U / i7-3517U 8 Gigabit LAN firewall PC appliance network security soft router support pFsense
Key Features
Integrated Intel® Core™ 3th gen i3-3217U / i5-3317U / i7-3517U processor
Intel® HD Graphics 4000
Support 1*SO-DIMM, DDR3 1333 / 1600MHz max 8GB
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” SATA HDD bay
1* CISCO standard serial port
2* USB3.0
8* RJ45 Gigabit Ethernet Port
1* VGA display output
High quality aluminium sheet chassis
Dimension: 430mm*280mm*45mm
1U rackmount Standard chassis
Specifications
| Model No. | BF10208001-3TH | |
| Chassis | Color | Black |
| Dimension | 430mm*280mm*45mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor |
Integrated Intel® Core™ 3th gen i3-3217U / i5-3317U / i7-3517U processor |
| Chipset | Intel® | |
| Graphics |
Intel® HD Graphics 4000 Support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM, DDR3 1333 / 1600MHz max 8GB |
| HDD | Support 1* 2.5”/3.5” SATA HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard 8*Intel 82574L GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.0 | |
| LAN | 8* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Our service:
1. We can provide OEM/ODM services .
2. We can print your Logo when you make order more than 50 pieces
3. We can sell one sample for your test .
4. High-quality product and competitive price.
5. 1 years Warranty
