| Place of Origin: | China |
|---|---|
| Brand Name: | VEGASHINE / OEM |
| Model Number: | BF10206001-J4125 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Carton |
| Delivery Time: | 3 to 10 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 units per Month |
| Chassis: | High Quality Aluminium Sheet Chassis | Dimension: | 440mm*250mm*44mm |
|---|---|---|---|
| Chassis Color: | Black | CPU: | Celeron® J4125 Quad Core |
| Memory: | 1*SO-DIMM，DDR4 2133/2400MHz | Gigabit LAN: | 6 * Gigabit LAN |
1U rackmount quad cores J4125 6 Gigabit LAN firewall PC appliance soft router support Mikrotik pFsense
Key Features
Integrated Intel® Celeron® J4125 quad core 4 threads 2.0~2.7Ghz processor
Integrated Intel UHD Graphics 600
Support 1*SO-DIMM,DDR4 2133/2400MHz max to 16GB
Support 1*MSATA SSD expansion
Support 1* 2.5”/3.5” HDD bay
1* CISCO standard serial port
2* USB3.0
6* RJ45 Gigabit Ethernet Port
1* VGA display output
High quality aluminium sheet chassis

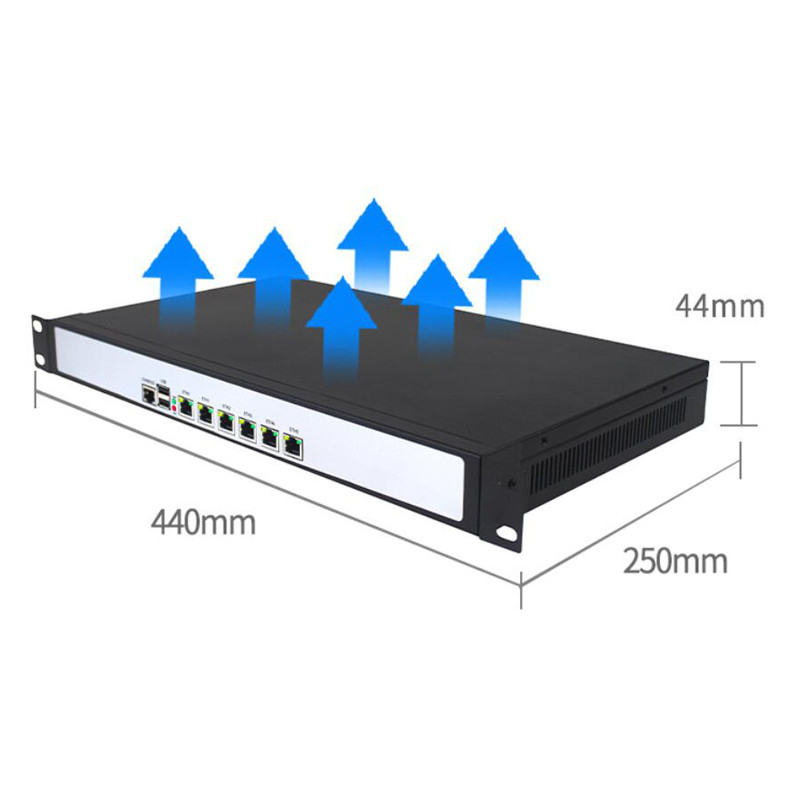

Dimension: 440mm*250mm*44mm
1U rackmount Standard chassis
Specifications
| Model No. | BF10206001-J4125 | |
| Chassis | Color | Black |
| Dimension | 440mm*250mm*44mm | |
| Structure | 1U rackmount Standard chassis | |
| Material | High quality aluminium sheet chassis | |
| Platform | Processor | Integrated Intel® Celeron® J4125 quad core 4 threads 2.0~2.7Ghz processor |
| Chipset | Gemini Lake Refresh | |
| Graphics |
Intel® UHD Graphics 600 support 1*VGA display output |
|
| Storage | Memory | Support 1*SO-DIMM,DDR4 2133/2400MHz max to 16GB |
| HDD | Support 1* 2.5”/3.5” HDD bay | |
| SSD | Support 1*MSATA SSD expansion | |
| Audio | Audio | N/A |
| Network | Ethernet | Onboard Intel i211 / 82583V 6*RJ45 GLAN |
| WiFi | N/A | |
| I/O Port | Serial Port | 1* CISCO standard serial port |
| USB | 2* USB3.0 | |
| LAN | 6* RJ45 Gigabit Ethernet Port | |
| LED | 1* HDD LED, 1* Power LED | |
| Display | 1* VGA display output | |
| Power Supply | 1* Power Interface | |
| Power Supply | Input | AC 110V ~ 240V |
| Power type | ATX power supply(Mean Well power supply) | |
| Reliability | Operating Temp. | 0℃~45℃ |
| Storage Temp. | -20℃~70℃ | |
| Relative Humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating | |
| Operate System | Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc. | |
Shipping
Support DHL / UPS / FEDEX / air shipping deliver time 4 to 9 business days
Support Sea shipping for Batch order deliver time 25 to 50 days
Warranty 1 year
